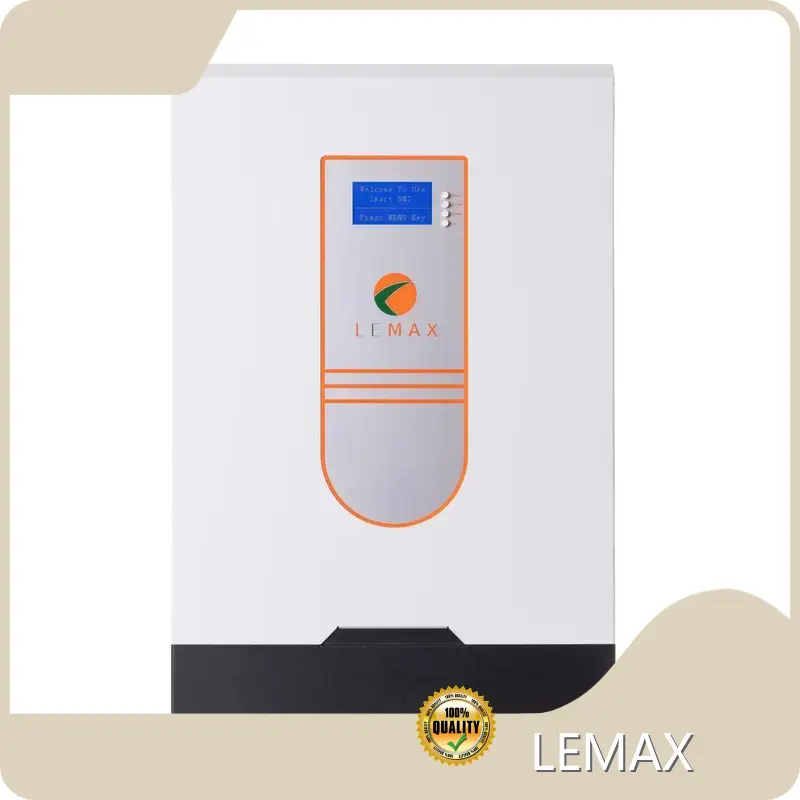

Product details of the battery storage wall mount
Quick Overview
LEMAX battery storage wall mount is manufactured using premium raw materials from reliable vendors. Its quality meets the requirements of high quality standards and is certified. The battery storage wall mount produced by our company is widely used. The product's favorable application prospects establish a reputation in the market.
Product Introduction
Next, LEMAX will present you with the specific details of battery storage wall mount.
![Wall Mounted Battery]()
Parameters
| Battery Type |
LiFePO4 |
| Capacity |
100Ah |
| Rated Voltage |
51.2V |
| Total Energy |
5.12kWh |
| Working Voltage Range |
44~58.4V |
| Max. Charge Current |
100A |
| Max. Discharge Current |
100A |
| Standard Charge Current |
50A |
| Standard Discharge Current |
50A |
| Max. Parallel Quantity |
15 |
| Designed Life-span |
8000 cycles
(Test conditions: 80% DOD, 0.2C charge & discharge at +25 ℃) |
| Operating Temperature |
Charge: 0℃~60℃
Discharge: -10℃~60℃ |
| Operation Humidity |
5~95% |
| Nominal Operation Altitude |
≤3000m |
| IP Protection |
IP52 |
| Installation Method |
Wall-mounted installation |
| Communication |
RS232, RS485, CAN |
| Certification |
MSDS, UN38.3, CE |
| Net Weight |
46.50kg |
| Gross Weight |
49.50kg |
| Production Dimension |
635*400*165mm |
| Carton Dimension |
685*450*220mm |
Application Scenarios
![Application Scenarios]()
![Inverter]()
Packing Information
| Carton Size |
685*450*220mm |
| Carton packing weight |
49.50kg |
Project Cases
![Project Cases]()
