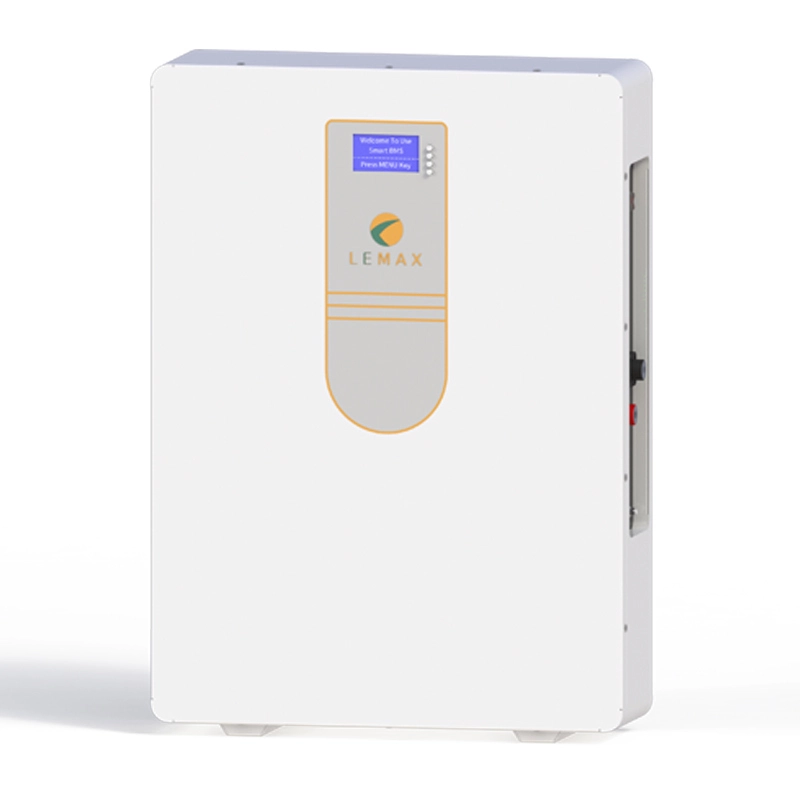

5kWh Lithium Battery LMW-51.2V100Ah
● Compatible with multiple brands of inverters;
● Wall-mounted design specially for home energy storage;
● Parallel allowed to increase capacity;
● Easy installation and simply connection to inverter;
● Built-in intelligent BMS to protect the battery module and maintain the battery always work at the best condition;
● Flexible with low MOQ order;
● Widely used for solar application, home energy storage system, micro-grid, shopping mall, hotels, etc
Product parameters
| Battery Type | LiFePO4 |
| Capacity | 100Ah |
| Rated Voltage | 51.2V |
| Total Energy | 5.12kWh |
| Working Voltage Range | 44~58.4V |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Standard Charge Current | 50A |
| Standard Discharge Current | 50A |
| Max. Parallel Quantity | 15 |
| Designed Life-span | ≥6000 cycles (Test conditions: 80%DOD, 0.5C charge & discharge at +25 ℃) |
| Operating Temperature | Charge: 0℃~60℃ Discharge: -10℃~60℃ |
| Operation Humidity | 5~95% |
| Nominal Operation Altitude | ≤3000m |
| IP Protection | IP52 |
| Installation Method | Wall-mounted installation |
| Communication | RS232, RS485, CAN |
| Certification | MSDS, UN38.3, CE |
| Net Weight | 48.50kg |
| Gross Weight | 53.50kg |
| Production Dimension | 620*455*175mm |
| Carton Dimension | 670*530*225mm |
Application scenarios
Product certificate
INVERTER BRANDS
Case presentation
Whether it's cutting-edge solutions, personalized support or a seamless collaboration, we are here to exceed your expectations.
LEMAX is a technology-based manufacturer integrating research and development, production, sales and service of lithium battery products.
