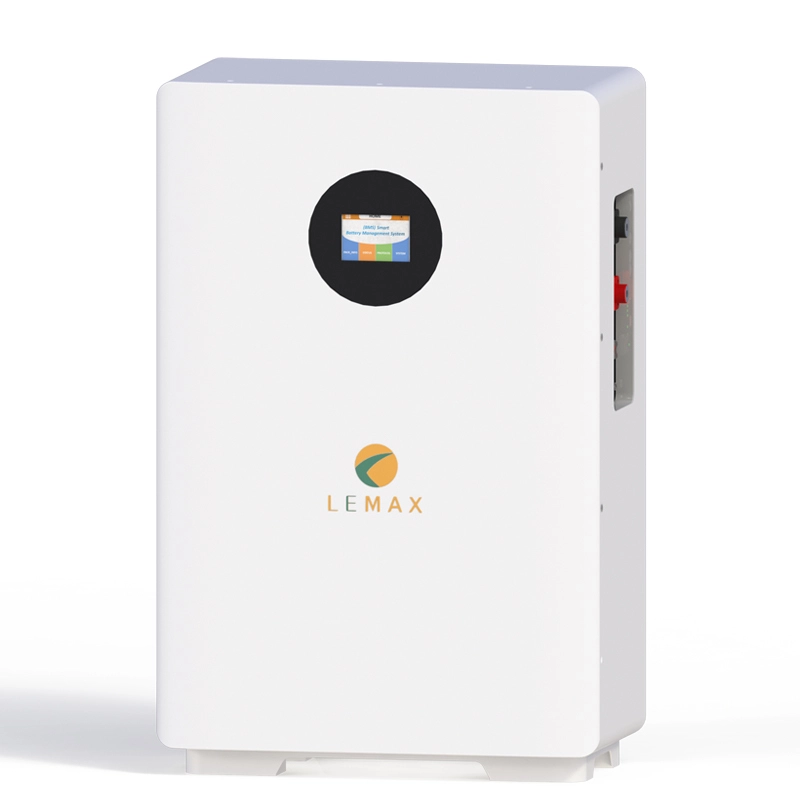

15kWh Touch Screen LM-TS-51.2V15KWH
● Floor standing design for convenient home energy storage
● Touch Screen and Color Screen for easy monitoring and control
● Supports communication protocols RS232, RS485 and CAN for seamless integration
● Parallel connection allows for increased capacity and power output
● Easy installation and simple connection to inverters for hassle-free setup and operation
● Built-in intelligent BMS to protect the battery module and maintain the battery always work at the best condition
● Accepts OEM requests, allowing for personalized designs
● Offers flexibility with minimum order quantities, accommodating various business needs
● Ideal for solar applications, home energy storage systems, micro-grids, shopping malls, hotels, and more
Product parameters
| Model | LM-TS-51.2V15KWH |
| Battery Type | LiFePO4 |
| Capacity | 300Ah |
| Rated Voltage | 51.2V |
| Total Energy | 15.36kWh |
| Working Voltage Range | 44~58.4V |
| Max. Charge Current | 200A |
| Max. Discharge Current | 200A |
| Standard Charge Current | 100A |
| Standard Discharge Current | 100A |
| Max. Parallel Quantity | 15 |
| Designed Life-span | ≥6000 cycles (Test conditions: 80%DOD, 0.5C charge & discharge at +25 ℃) |
| Operating Temperature | Charge: 0℃~60℃ Discharge: -10℃~60℃ |
| Operation Humidity | 5~95% |
| Nominal Operation Altitude | ≤3000m |
| IP Protection | IP52 |
| Installation Method | Floor installation |
| Communication | RS232, RS485, CAN |
| Certification | MSDS, UN38.3, CE |
| Net Weight | 110.00kg |
| Gross Weight | 128.00kg |
| Production Dimension | 670*570*250mm |
| Carton Dimension | 750*580*420mm |
Application scenarios
Product certificate
INVERTER BRANDS
Case presentation
