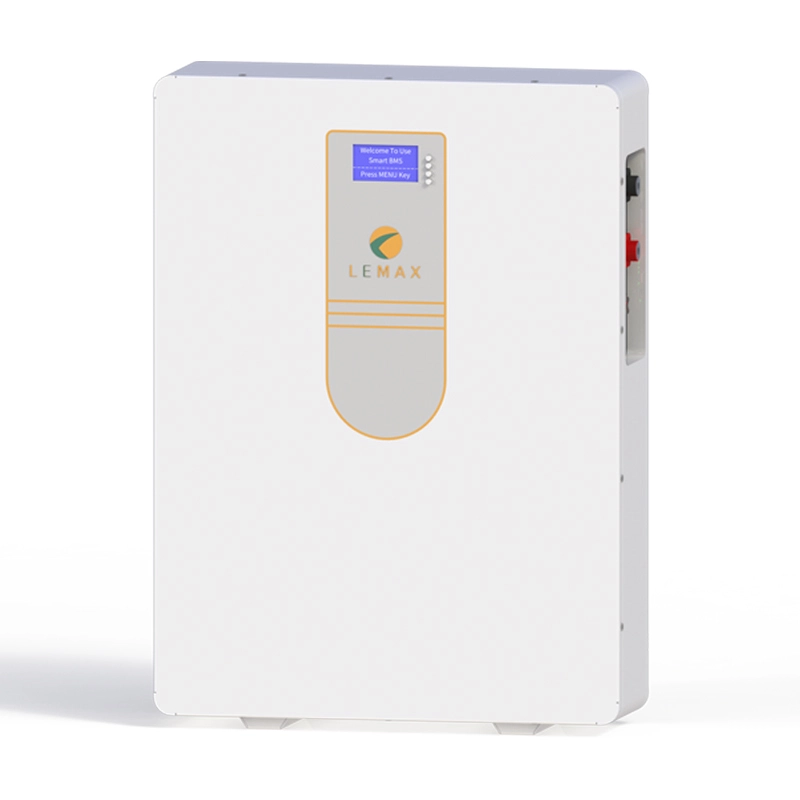

10kWh Lithium Battery LMW-51.2V200Ah

● Compatible with multiple brands of inverters

Floor standing design specially for home energy storage

Parallel allowed to increase capacity

Easy installation and simply connection to inverter

Built-in intelligent BMS to protect the battery module and maintain the battery always work at the best condition

LEMAX battery adopts LiFePO4 chemistry to ensure safety performance

OEM acceptable with your customized design to make your marketing more easier

Flexible with low MOQ order

Widely used for solar application, home energy storage system, micro-grid, shopping mall, hotels, etc

    oops...!

    no product data.

    Go to homepage
    LM-LMW-海报2 (2)

     Product parameters

    Model LMW-51.2V200Ah
    Battery Type LiFePO4
    Capacity 200Ah
    Rated Voltage 51.2V
    Total Energy 10.24kWh
    Working Voltage Range 44~58.4V
    Max. Charge Current 200A
    Max. Discharge Current 200A
    Standard Charge Current 100A
    Standard Discharge Current 100A
    Max. Parallel Quantity 15
    Designed Life-span 8000 cycles
    (Test conditions: 80%DOD, 0.2C charge & discharge at +25 ℃)
    Operating Temperature Charge: 0℃~60℃
    Discharge: -10℃~60℃
    Operation Humidity 5~95%
    Nominal Operation Altitude ≤3000m
    IP Protection IP52
    Installation Method Floor installation
    Communication RS232, RS485, CAN
    Certification MSDS, UN38.3, CE
    Net Weight 85.00kg
    Gross Weight 90.00kg
    Production Dimension 715*510*175mm
    Carton Dimension 760*585*240mm
