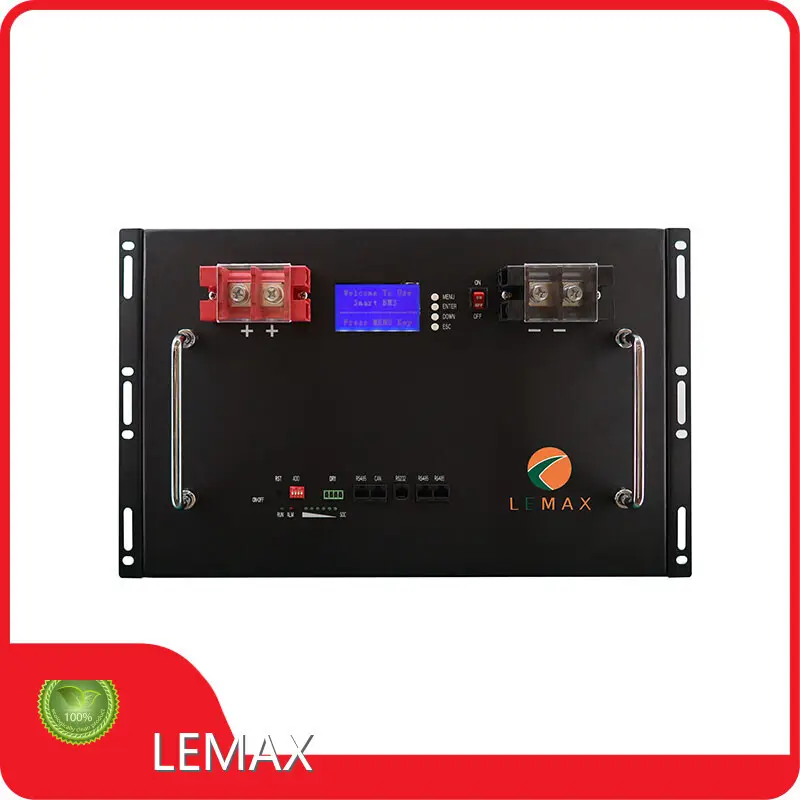

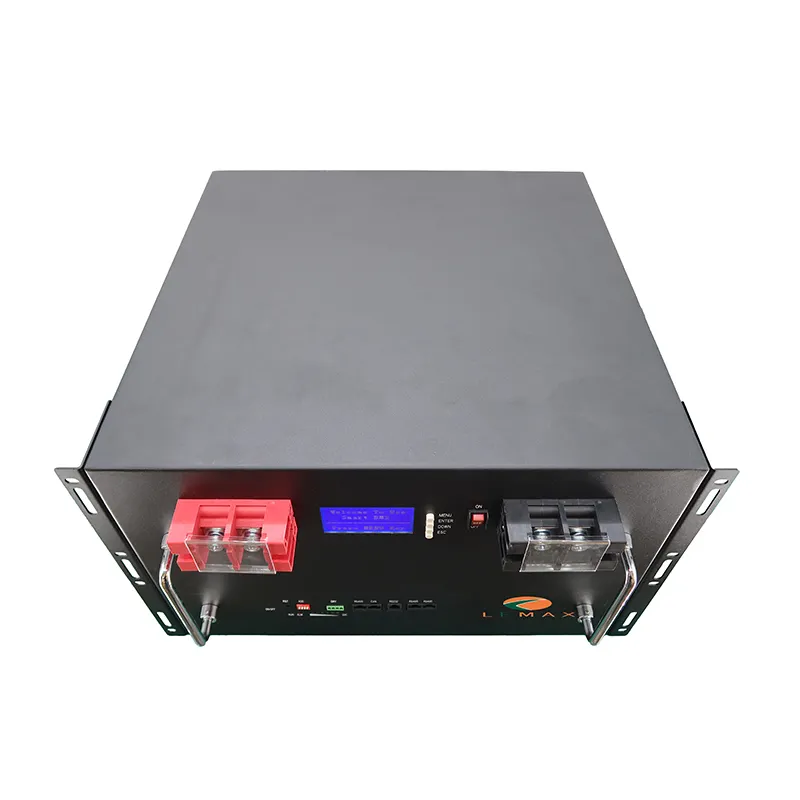

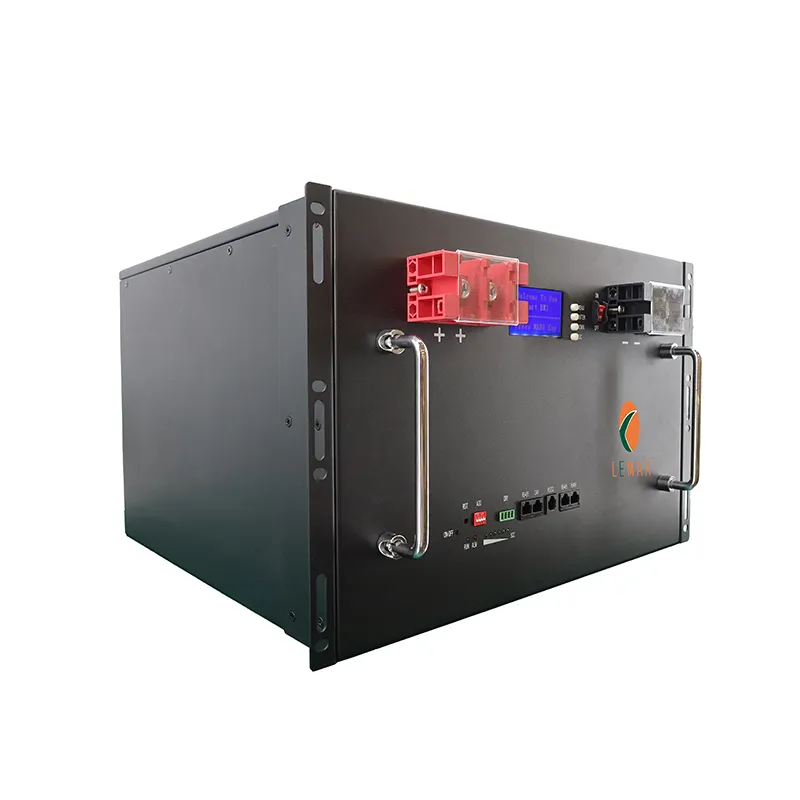

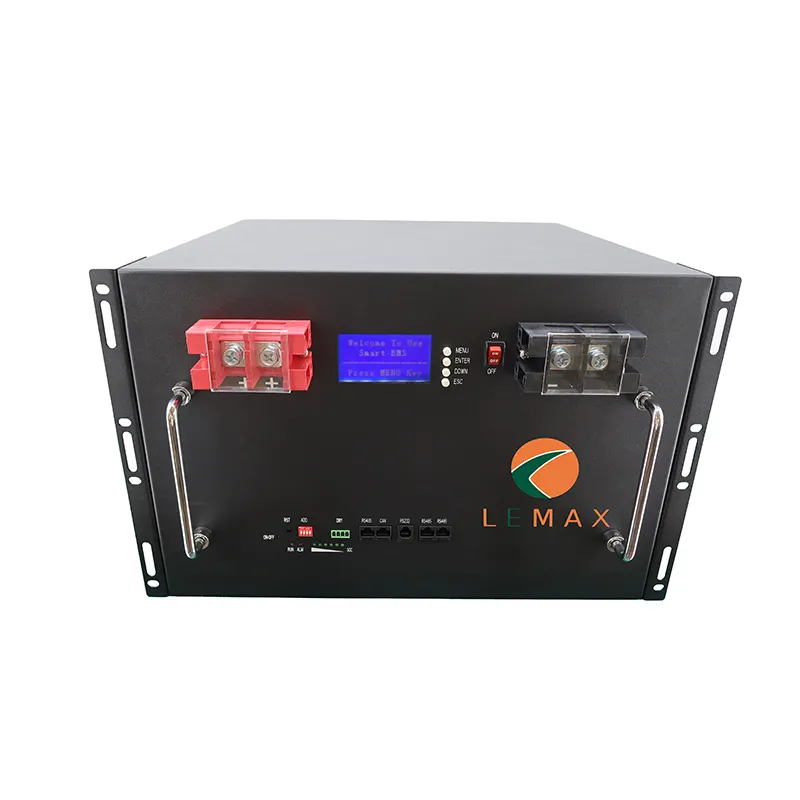

LEMAX Battery Rack Mount

Product details of the battery rack mount

Quick Overview

The appealing design of LEMAX battery rack mount improves brand awareness. The quality of the product is up to the highest industry standards. Our product is designed to give customers a wide range of choices and flexibility.

Product Introduction

Compared with similar products, our company's battery rack mount has the following outstanding features.

 Product parameters

Model	LM-JC-51.2V200Ah
Battery Type	LiFePO4
Capacity	200Ah
Rated Voltage	51.2V
Total Energy	10.24kWh
Working Voltage Range	44~58.4V
Max Charge Current	200A
Max Discharge Current	200A
Standard Charge Current	100A
Standard Discharge Current	100A
Max Parallel Quantity	15
Designed Life-span	8000 cycles(Test conditions:100%DOD,0.2C charge&discharge at +25 ℃)
Operating Temperature	Charge:0℃~60℃Discharge:-10℃~60℃
Operation Humidity	5~95%
Nominal Operation Altitude	≤3000m
IP protection	IP54
Installation Method	Rack-mounted installation
Communication	RS232, RS485, CAN
Certification	MSDS、UN38.3、CE
Net Weight	84.00kg
Gross Weight	86.00kg
Production Dimension	483*432*300mm
Carton Dimension	780*600*440mm

Product certificate

Case presentation

LM-JC Cabinet Battery~1

506b40a25d9dda76229943c6bda4870

微信图片_20231213155159~1

微信图片_20231201092629~1

微信图片_20231201092134

微信图片_20221128100815

Company Advantages

As a enterprise, Shenzhen LEMAX New Energy Co.,Ltd mainly deals with the research and development, production and sales of LEMAX runs brand-new management and a thoughtful service system. We serve every customer attentively, so as to meet their different needs and develop a greater sense of trust. We value honesty greatly and always keep the promise. And our products are complete in kinds and reliable in quality. If you have any needs, feel free to contact us at any time.
