● Compatible with multiple brands of inverters
● Cycle life > 8000 times, life up to 15 years
● It can be installed in a cabinet in parallel to increase the battery capacity
● Communication ports RS232, RS485, CAN
● The battery is simple to connect with the inverter and easy to install
Product parameters

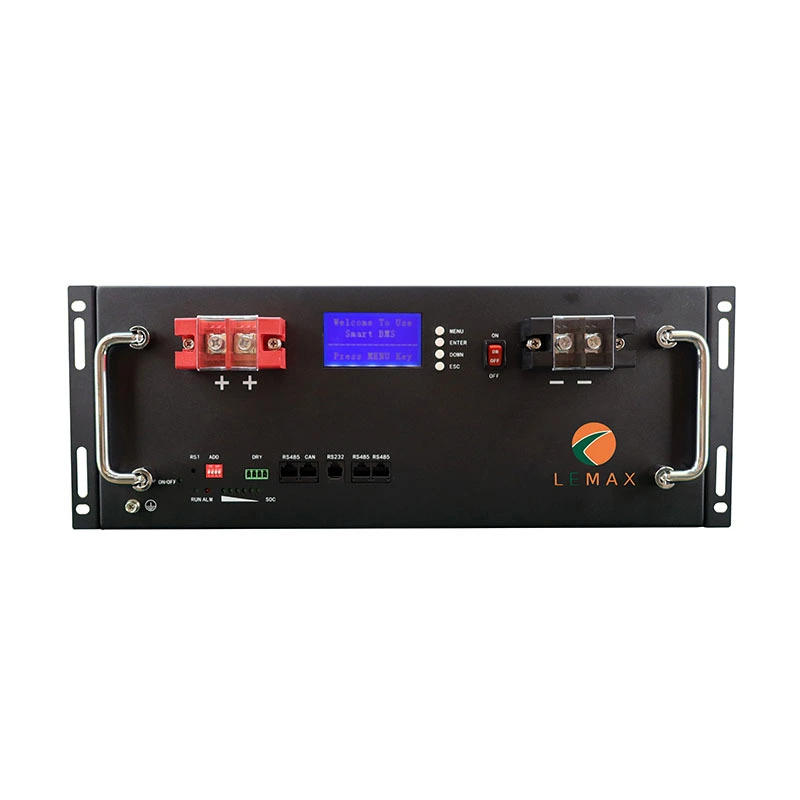

Model | LM-JC-51.2V100Ah |
Battery Type | LiFePO4 |
Capacity | 100Ah |
Rated Voltage | 51.2V |
Total Energy | 5.12kWh |
Working Voltage Range | 44~58.4V |
Max Charge Current | 100A |
Max Discharge Current | 100A |
Standard Charge Current | 50A |
Standard Discharge Current | 50A |
Max Parallel Quantity | 15 |
Designed Life-span | 8000 cycles (Test conditions:100%DOD,0.2C charge&discharge at +25 ℃) |
Operating Temperature | Charge:0℃~60℃ Discharge:-10℃~60℃ |
Operation Humidity | 5~95% |
Nominal Operation Altitude | ≤3000m |
IP protection | IP54 |
Installation Method | Rack-mounted installation |
Communication | RS232, RS485, CAN |
Certification | MSDS、UN38.3、CE |
Net Weight | 44.00kg |
Gross Weight | 46.00kg |
Production Dimension | 483*432*178mm |
Carton Dimension | 525*525*235mm |
Product certificate
Case presentation
