● Compatible with multiple brands of inverters
● Built with high-quality LiFePO4 cells, offering over 6,000 cycles for long-lasting performance and reliability
● It can be installed in a cabinet in parallel to increase the battery capacity
● Communication ports RS232, RS485, CAN
● The battery is simple to connect with the inverter and easy to install
Product parameters

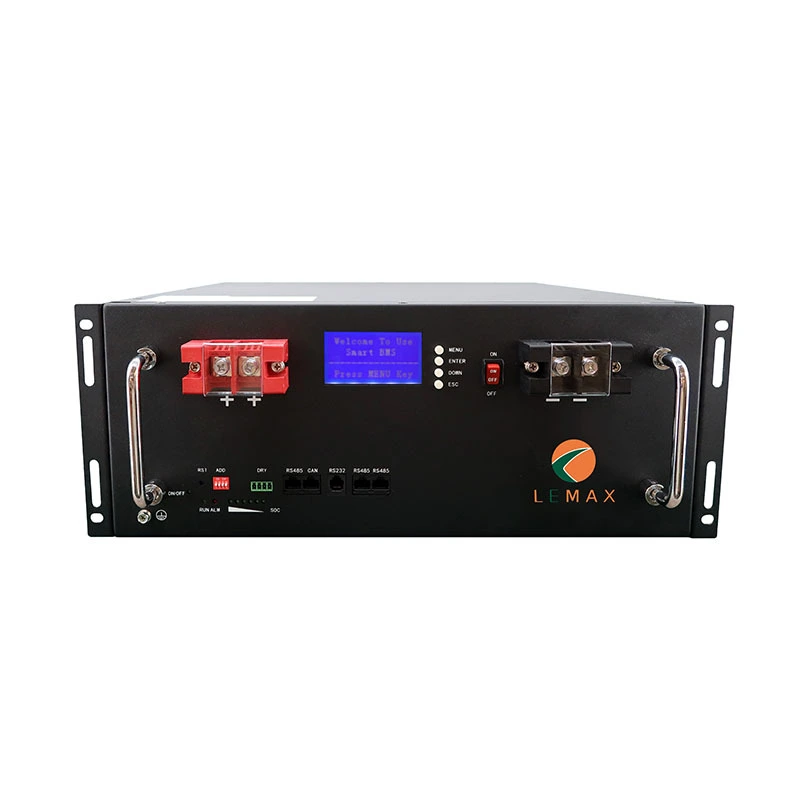

Model | LM-JC-51.2V50Ah |
Battery Type | LiFePO4 |
Capacity | 50Ah |
Rated Voltage | 51.2V |
Total Energy | 2.56kWh |
Working Voltage Range | 44~58.4V |
Max Charge Current | 50A |
Max Discharge Current | 50A |
Standard Charge Current | 25A |
Standard Discharge Current | 25A |
Max Parallel Quantity | 15 |
Designed Life-span | ≥6000 cycles (Test conditions: 80%DOD, 0.5C charge & discharge at +25℃) |
Operating Temperature | Charge:0℃~60℃ Discharge:-10℃~60℃ |
Operation Humidity | 5~95% |
Nominal Operation Altitude | ≤3000m |
IP protection | IP54 |
Installation Method | Rack-mounted installation |
Communication | RS232, RS485, CAN |
Certification | MSDS、UN38.3、CE |
Net Weight | 27.00kg |
Gross Weight | 29.00kg |
Production Dimension | 483*432*178mm |
Carton Dimension | 525*525*235mm |
