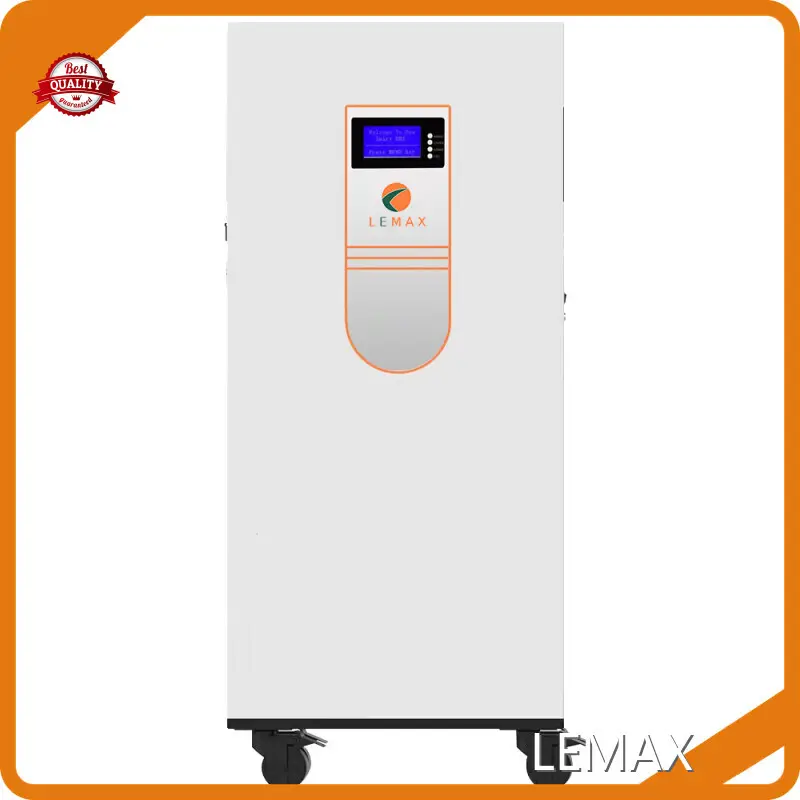

All in One Energy Storage System LEMAX 1

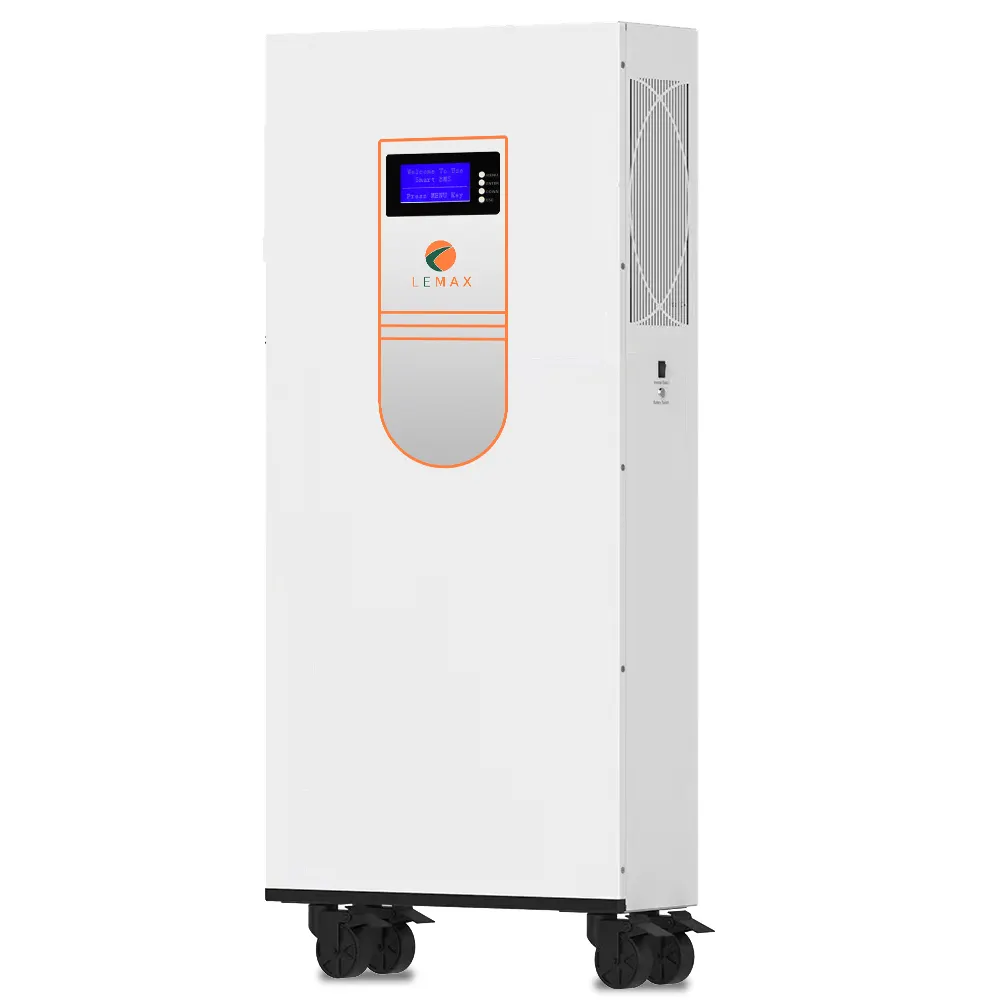

All in One Energy Storage System LEMAX 2
All in One Energy Storage System LEMAX 1
All in One Energy Storage System LEMAX 2

All in One Energy Storage System LEMAX

Inquiry
Send your inquiry

Product details of the all in one energy storage system


Quick Overview

LEMAX all in one energy storage system is known for combining aesthetic functionality and innovation. This product tends to have more superiorities in performance. all in one energy storage system has a wide range of applications. It is supposed to cater to all kinds of customers across the market.


Product Introduction

To better learn about all in one energy storage system, LEMAX will provide detailed pictures and detailed information in the following section for your reference.

All-In-One-System
Parameters
ESS Model LM-ESS505
Battery Battery Type LiFePO4
Rated Voltage 51.2V
Total Energy 5.12kWh
Working Voltage Range 44.8 ~56.5V
DOD 90%
Cycle times 6000 cycles
Warranty 5 Years
Communication protocol RS485
Operating Temperature Range 0 to 50°C charging -10 to 50°C discharging
Inverter Battery Input
Battery type Lithium battery
Rated Battery Input Voltage 48V (Minimum Startup Voltage44V)
Hybrid Charging Maximum Charging Current 80A
Battery Voltage Range (Adjustable) 40Vdc~60Vdc ± 0.6Vdc(Under voltage Warning/Shutdown VoItage/Overvoltage Warning/Overvoltage Recovery…) (Adjustable)
Solar Input
Maximum PV Open-circuit Voltage 500Vdc
PV Working Voltage Range 120-500Vdc
MPPT Voltage Range 120-450Vdc
Maximum PV Input Current 22A
Maximum PV Input Power 5500W
Maximum PV Charging Current (Adjustable) 80A (Adjustable)
AC Input (generator/grid)
Mains Maximum Charging Current 60A (Adjustable)
Rated Input Voltage 220/230Vac
Input Voltage Range UPS Mains Mode : (170Vac~280Vac) ±2% APL Generator Mode : (90Vac-280Vac)±2%
Frequency 50Hz/60Hz (Automatic Detection)
Mains Charging Efficiency >95%
Switch Time (by pass and inverter) 10ms(Typical Value)
Maximum By pass Overload Current 40A
AC Output
Output Voltage Waveform Pure Sine Wave
Rated Output Voltage 230(200/208/220/240Vac) (Adjustable)
Rated Output Power(VA) 5000 (4350/4500/4750/5000)
Rated Output Power(W) 5000 (4350/4500/4750/5000)
Peak Power 10000VA
On-load Motor Capacity 4HP
Output Frequency Range(Hz) 50Hz±0.3Hz/60Hz±0.3Hz  (Adjustable)
Maximum Efficiency >92%
No-load Loss Non Energy-saving Mode: ≤50W Energy-saving Mode : ≤25W (Manual Setup )
General EMC Certification Level EN61000
Storage Temperature Range -25° C~60° C
Humidity Range 5% to 95%(Conformal Coadting Protection)
Dimensions (mm) 502*1080*156
Weight (kg) 68
Application Scenarios
Application-Scenarios



Project Cases

Project Cases


Company Introduction

Shenzhen LEMAX New Energy Co.,Ltd is a leading technology company, which has long been committed to the development and production of all in one energy storage system. The production technology has been constantly optimized by LEMAX. It has been our mutual mission for LEMAX to be the leading all in one energy storage system manufacturer in the industry. Call!
We always insist on the production of high-quality products. Welcome customers with needs to negotiate with us!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
