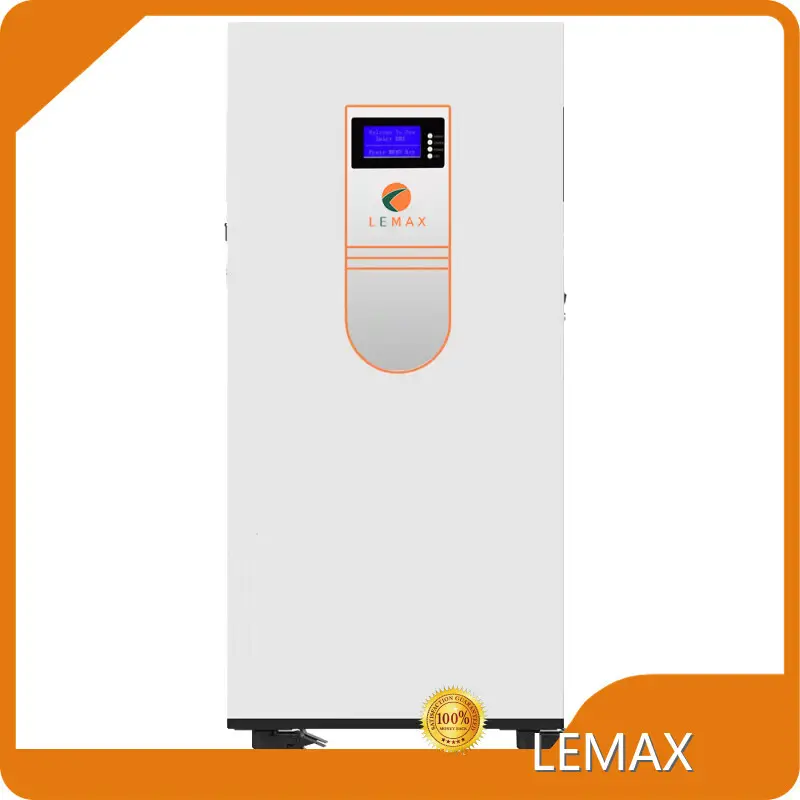

All in One Energy Storage System LEMAX Brand 1
All in One Energy Storage System LEMAX Brand 2
All in One Energy Storage System LEMAX Brand 1
All in One Energy Storage System LEMAX Brand 2

All in One Energy Storage System LEMAX Brand


Product details of the all in one energy storage system

Product Information

LEMAX all in one energy storage system adopts a number of techniques to satisfy production requirements. The offered product is assured of an utmost quality. The implementation of best industry practices give Shenzhen LEMAX New Energy Co.,Ltd a competitive edge.

ESS model LM-ESS510
Battery Battery Type LiFePO4
Rated Voltage 51.2V
Total Energy 10.24kWh
Working Voltage Range 44.8 ~56.5V
DOD 90%
Cycle times 6000 cycles
Warranty 5 Years
Communication protocol RS485
Operating Temperature Range 0 to 50°C charging -10 to 50°C discharging
Inverter Battery Input
Battery type Sealed,FLood,GEL,LFP,Ternary
Rated Battery Input Voltage 48V (Minimum Startup Voltage44V)
Hybrid Charging Maximum Charging Current 80A  (Adjustable)
Battery Voltage Range (Adjustable) 40Vdc~60Vdc ± 0.6Vdc(Under voltage Warning/Shutdown VoItage/Overvoltage Warning/Overvoltage Recovery…) (Adjustable)
Solar Input
Maximum PV Open-circuit Voltage 500Vdc
PV Working Voltage Range 120-500Vdc
MPPT Voltage Range 120-450Vdc
Maximum PV Input Current 18A
Maximum PV Input Power 4400W 5200W
Maximum PV Charging Current (Adjustable) 60A  (Adjustable) 80A  (Adjustable)
AC Input (generator/grid)
Mains Maximum Charging Current 60A
Rated Input Voltage 220/230Vac
Input Voltage Range UPS Mains Mode : (170Vac~280Vac) ±2% APL Generator Mode : (90Vac-280Vac)±2% (Adjustable)
Frequency 50Hz/60Hz (Automatic Detection)
Mains Charging Efficiency >95%
Switch Time (by pass and inverter) 10ms(Typical Value)
Maximum By pass Overload Current 40A
AC Output
Output Voltage Waveform Pure Sine Wave
Rated Output Voltage 230(200/208/220/240Vac) (Adjustable)
Rated Output Power(VA) 3000 (2600/2700/2850/3000) 5000 (4350/4500/4800/5000)
Rated Output Power(W) 3000 (2600/2700/2850/3000) 5000 (4350/4500/4800/5000 )
Peak Power 6000VA 10000VA
On-load Motor Capacity 2HP 4HP
Output Frequency Range(Hz) 50Hz±0.3Hz/60Hz±0.3Hz  (Adjustable)
Maximum Efficiency >90%
No-load Loss Non Energy-saving Mode: ≤50W Energy-saving Mode : ≤25W (Manual Setup )
General EMC Certification Level EN61000
Storage Temperature Range -25° C~60° C
Humidity Range 5% to 95%(Conformal Coadting Protection)
Dimensions (mm) 550*1152*203
Weight (kg) 112
Application Scenarios


Project Cases

Project Cases

Company Advantage

• With the sound sales network, LEMAX sells to the domestic market and foreign market.
• LEMAX provides comprehensive and professional services in accordance with the actual needs of customers.
• So far, our company has introduced and cultivated a considerable number of professional talents. Many outstanding employees have dedicated themselves to our key projects in their own positions, and have made efforts for our development with wisdom and sweat.
• The traffic convenience and advantageous geographic location create a broad prospect for LEMAX's business development.
Thanks for visiting. If you have any questions, please contact LEMAX!
