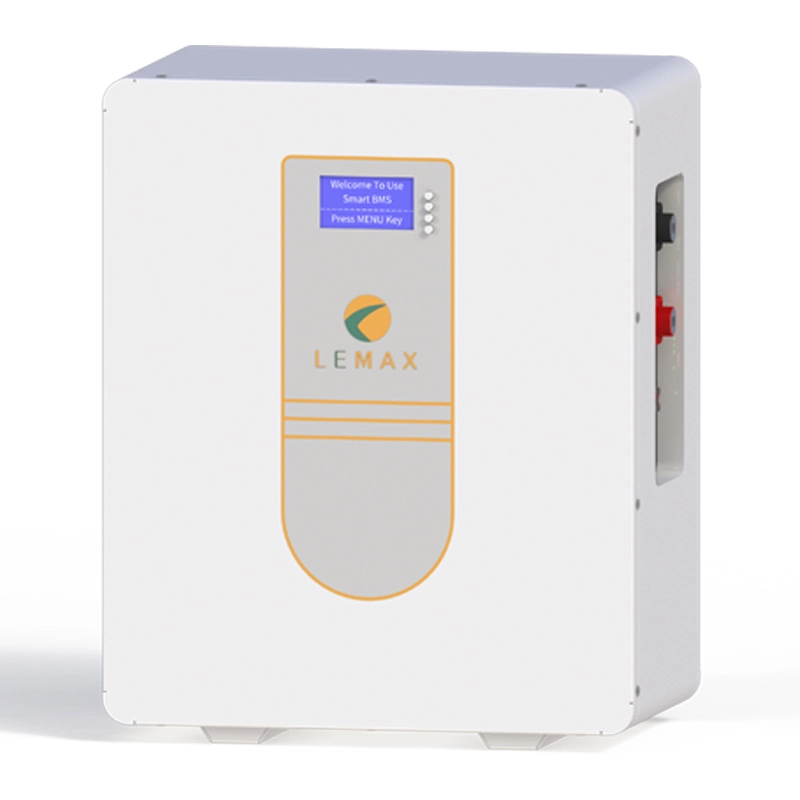

8kWh Lithium Battery LMW-25.6V314Ah

Wall-mounted design specially for home energy storage
Support communication protocol RS232 RS485.CAN
Parallel allowed to increase capacity
Easy installation and simply connection to inverter
Built-in intelligent BMS to protect the battery module and maintain the battery always work at the best condition
LEMAX battery adopts LiFePO4 chemistry to ensure safety performance
OEM acceptable with your customized design to make your marketing more easier
Flexible with low MOQ order
Widely used for solar application, home energ storage system, micro-grid, shopping mall, hotels, etc

Product parameters

Model	LMW-25.6V314Ah
Battery Type	LiFePO4
Capacity	314Ah
Rated Voltage	25.6V
Total Energy	8.04kWh
Working Voltage Range	22~29.2V
Max.Charge Current	200A
Max.Discharge Current	200A
Standard Charge Current	100A
Standard Discharge Current	100A
Max.Parallel Quantity	15
Designed Lifespan	≥6000 cycles (Test conditions: 80%DOD, 0.5C charge & discharge at +25℃)
Operating Temperature	Charge: 0℃~60℃ Discharge: -10℃~60℃
Operation Humidity	5~95%
Nominal Operation Altitude	≤3000m
IP Protection	IP52
Installation Method	Wall-mounted installation
Communication	RS232,RS485,CAN
Certification	MSDS, UN38.3. CE
Net Weight	66.00kg
Gross Weight	69.00kg
Production Dimension	510400235mm
Carton Dimension	560450290mm
