Parameters

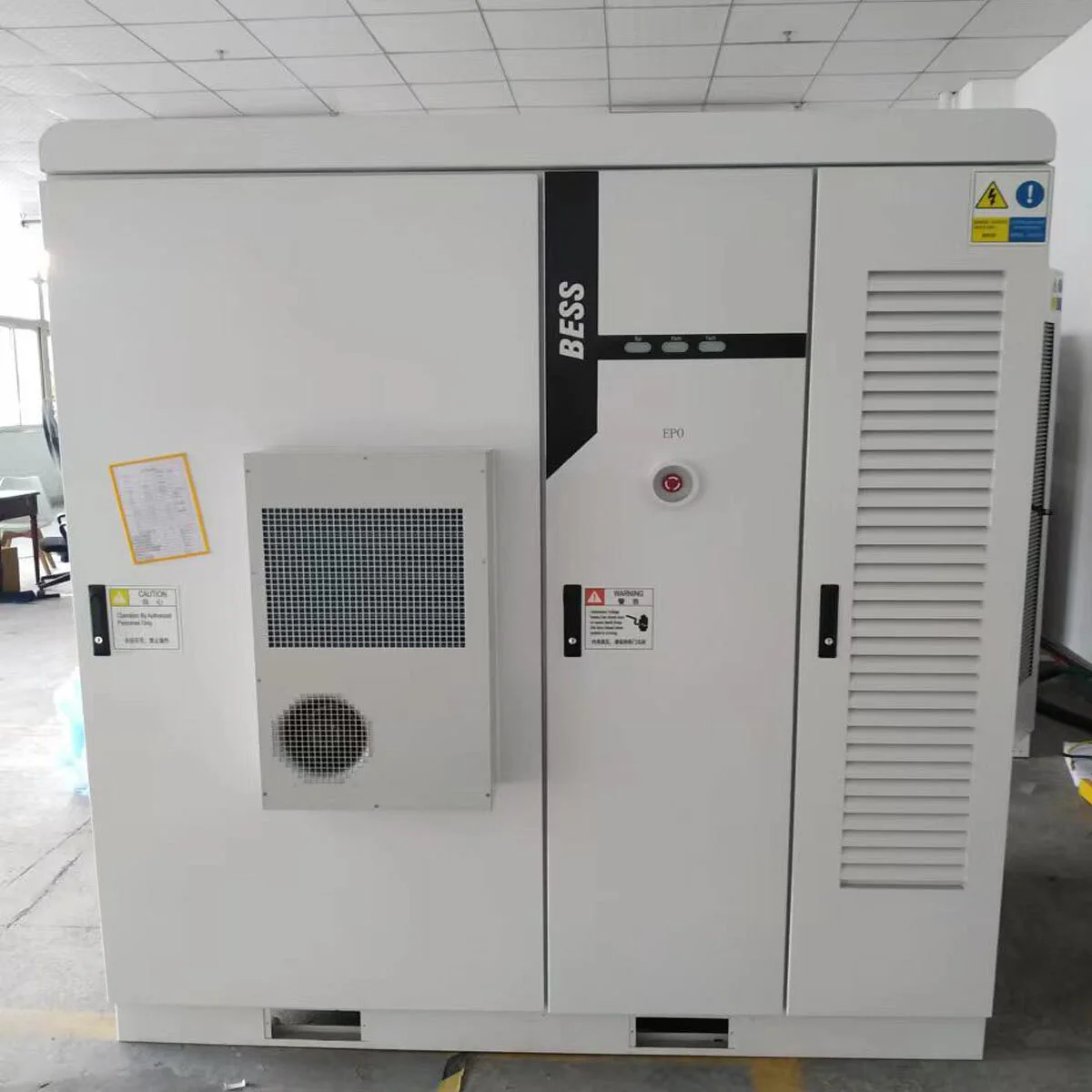

| Model | LM-ESS100KW215KWH |
| Total Energy | 215kWh |
| Nominal Voltage | 768V |
| Output Voltage Range | 672~852V |
| Cell Type | LFP 3.2V280Ah |
| Nominal | 140A(0.5C) |
| Battery Cluster Configuration | 240S1P |
| Cycle Times | 8000 |
| Rated Power | 100kW |
| THDI | <3% |
| Rated AC Voltage | 400V/3W+N+PE |
| Rated Grid Frequency | 50/60Hz |
| Grid Frequency Range | 45-55Hz |
| IP Protection | IP55 |
| Operation Temperature | -20℃~55℃ |
| Operation Humidity | 0~95%(Non-condensing) |
| Noise Level | ≤75dB |
| Nominal Operation Altitude | ≤3000m |
| Firefighting | Perfluorohexane |
| Cooling Method | Fan cooling |
| Max. Apparent Power | 1800*1230*2100mm |
| Weight | 2.8T |
| System Communication Interface | RS485,CAN,Etherne |
| System Communication Protocol | Modbus RTU,Modbus TCP |
