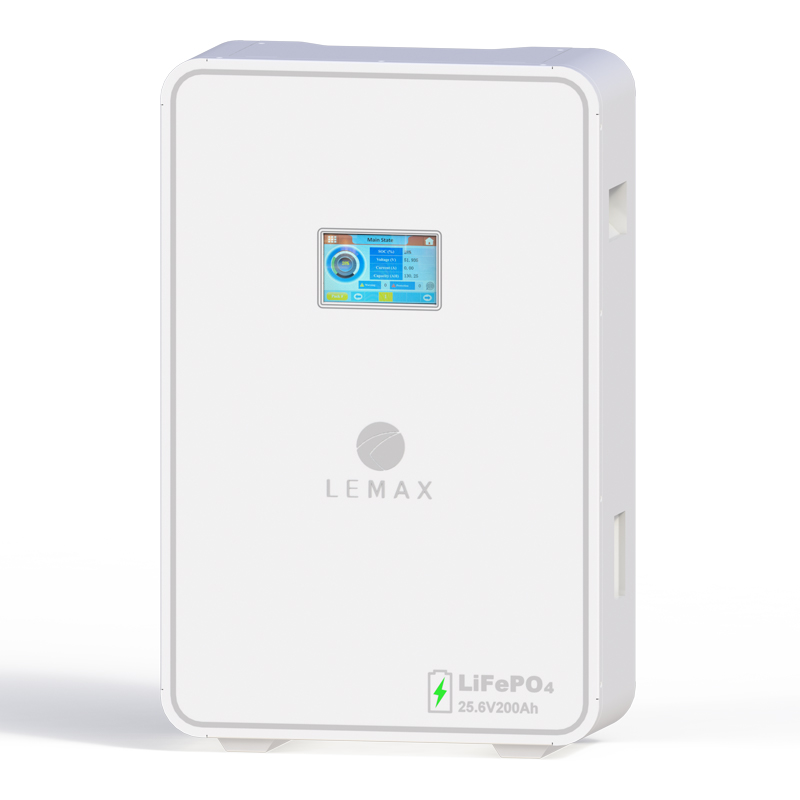

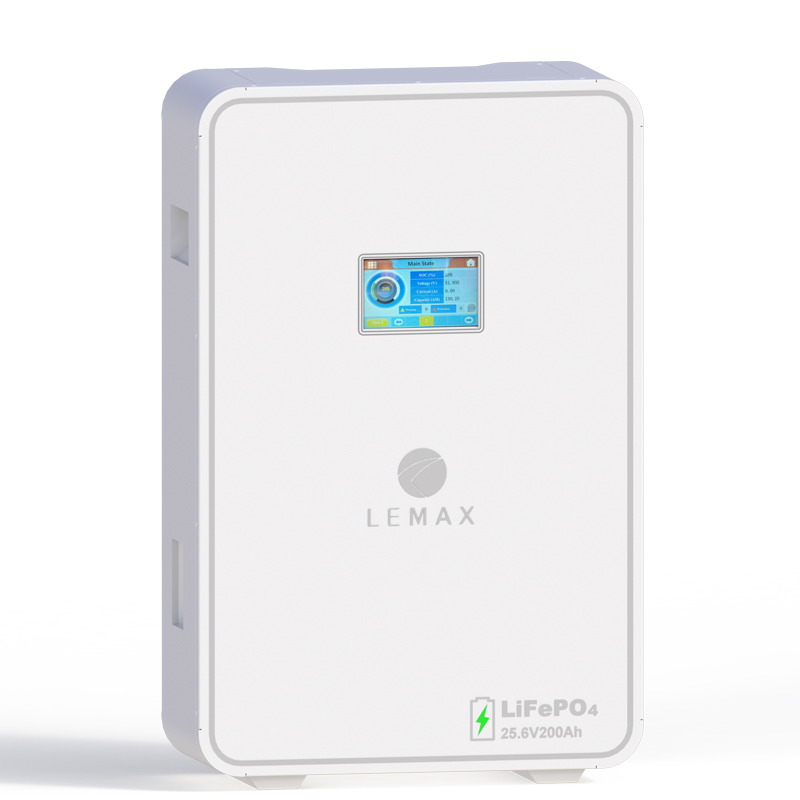

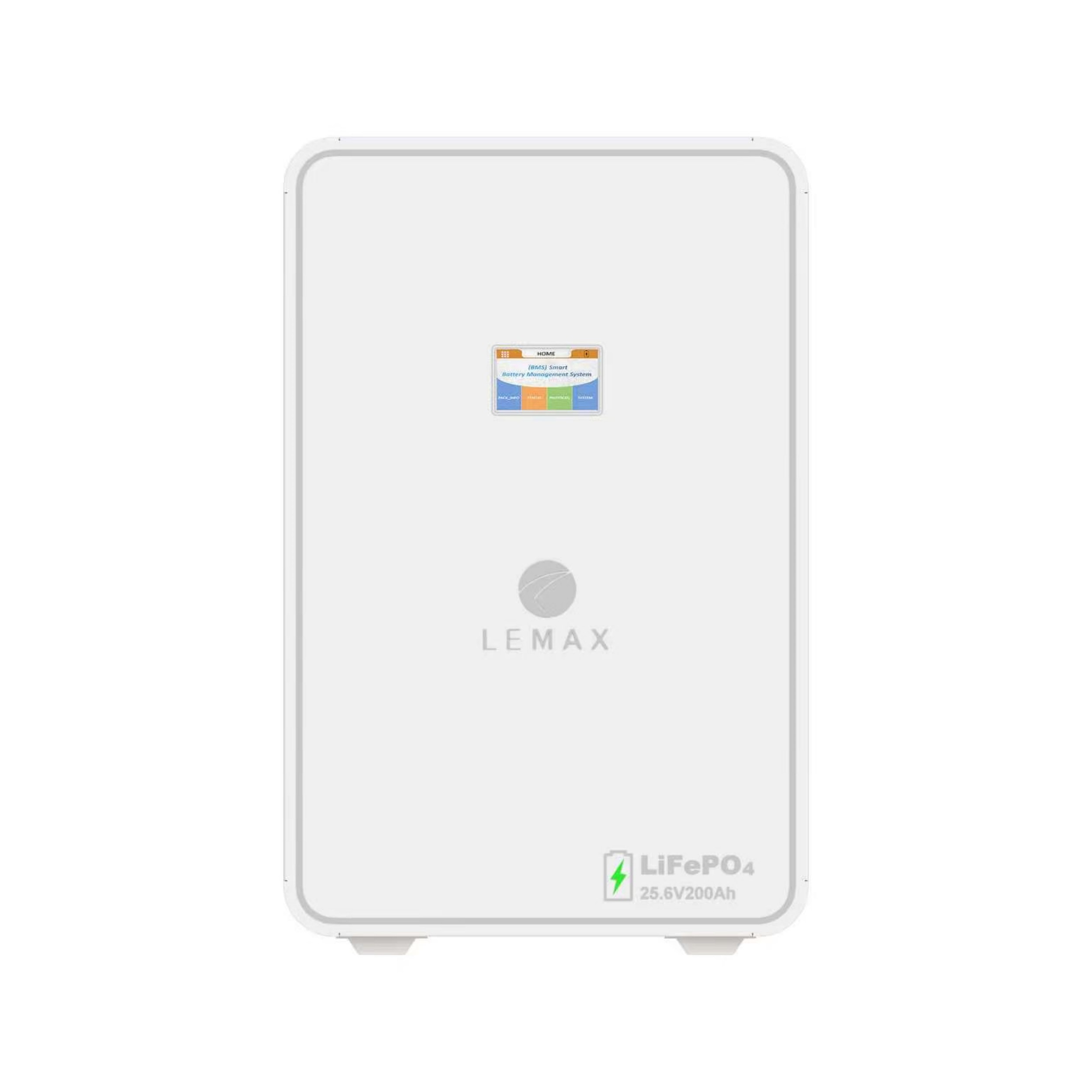

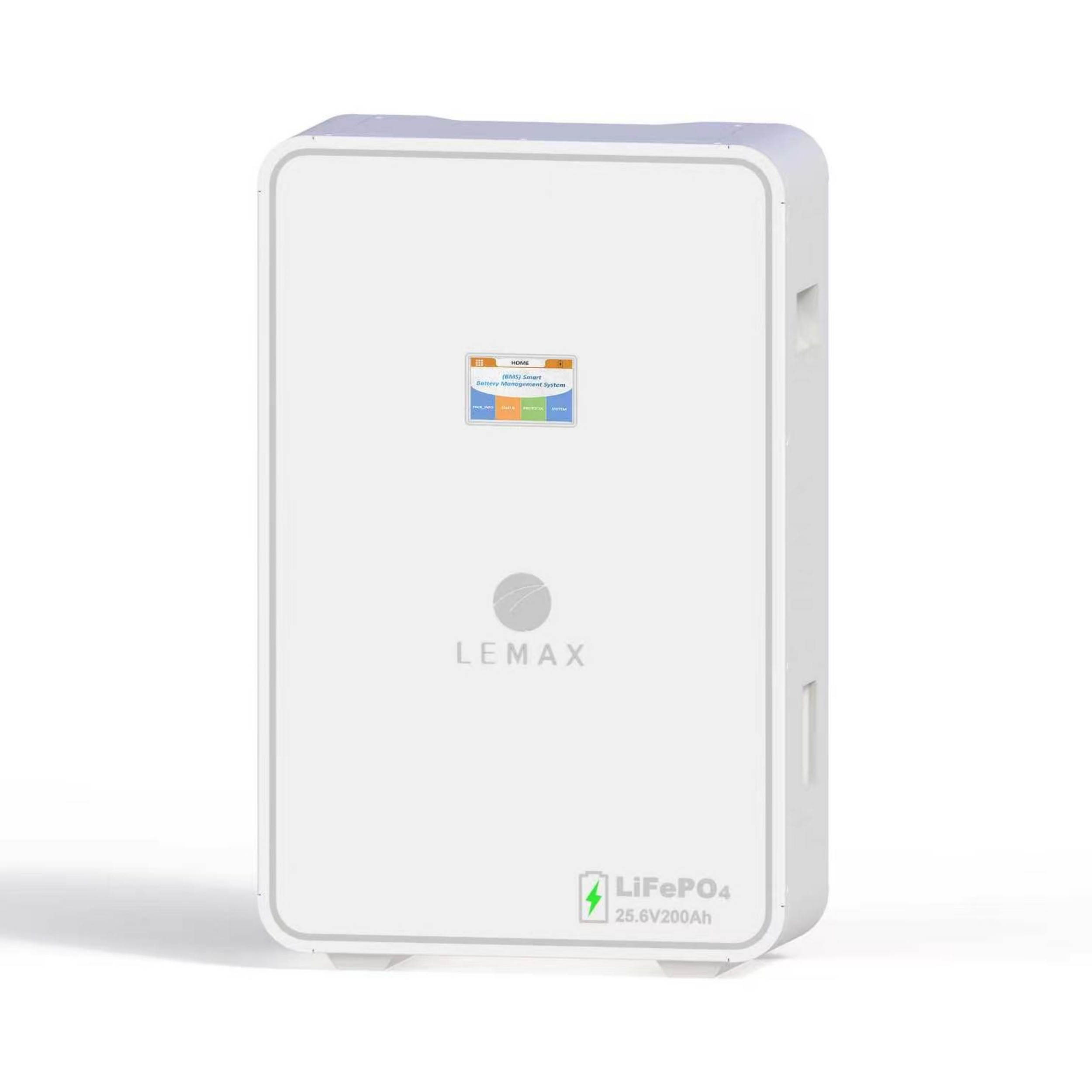

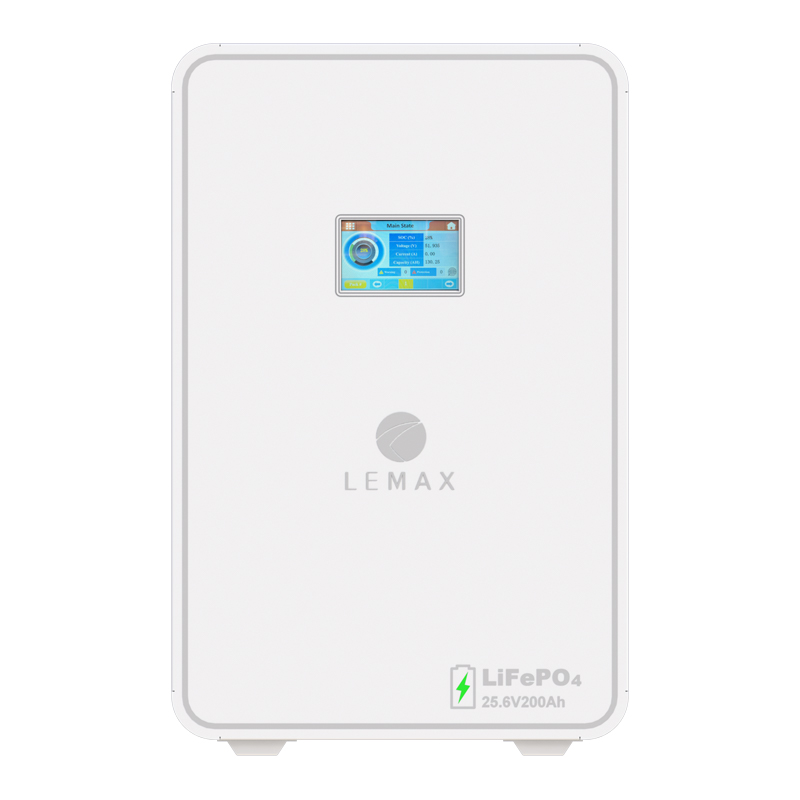

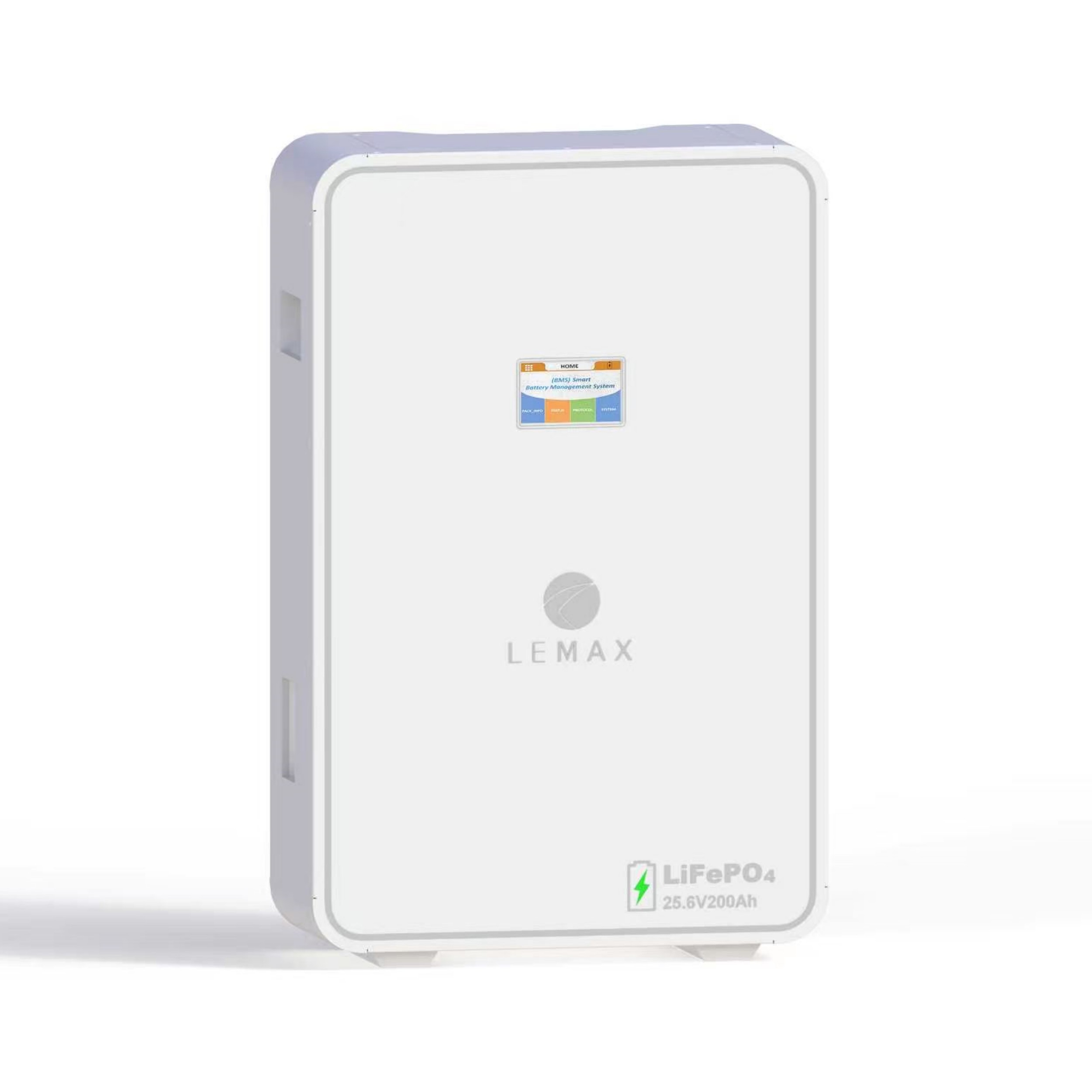

5kWh Lithium Battery LMW-PRO-25605

LiFePO₄ Cells: Long lifespan, high thermal stability, over 6000 cycles.
Double-pair Terminal Design: Supports flexible system expansion via series or parallel connection.
Built-in Circuit Breaker: Integrated air switch for overload and short-circuit protection.
5-Inch Color Screen: Real-time monitoring of voltage, current, SOC, temperature, and system status.
Multilingual Support: The user interface is available in English and Arabic.
Advanced BMS: Intelligent battery management with comprehensive safety protections.

Product parameters

Model	LMW-PRO-25605
Battery Type	LiFePO4
Capacity	200Ah
Rated Voltage	25.6V
Total Energy	5.12kWh
Working Voltage Range	22~29.2V
Max.Charge Current	200A
Max.Discharge Current	200A
Standard Charge Current	100A
Standard Discharge Current	100A
Max.Parallel Quantity	15
Designed Lifespan	≥6000 cycles (Test conditions:80%DOD, 0.5C charge & discharge at+25°℃)
Operating Temperature	Charge: 0°℃~60℃ Discharge: -10℃~60°℃
Operation Humidity	5~95%
Nominal Operation Altitude	≤3000m
IP Protection	IP54
Installation Method	Wal-mounted instllation
Communication	RS232,RS485,CAN
Certification	MSDS,UN38.3.CE
Net Weight	51kg
Gross Weight	56kg
Production Dimension	655420165mm
Carton Dimension	715495240mm
