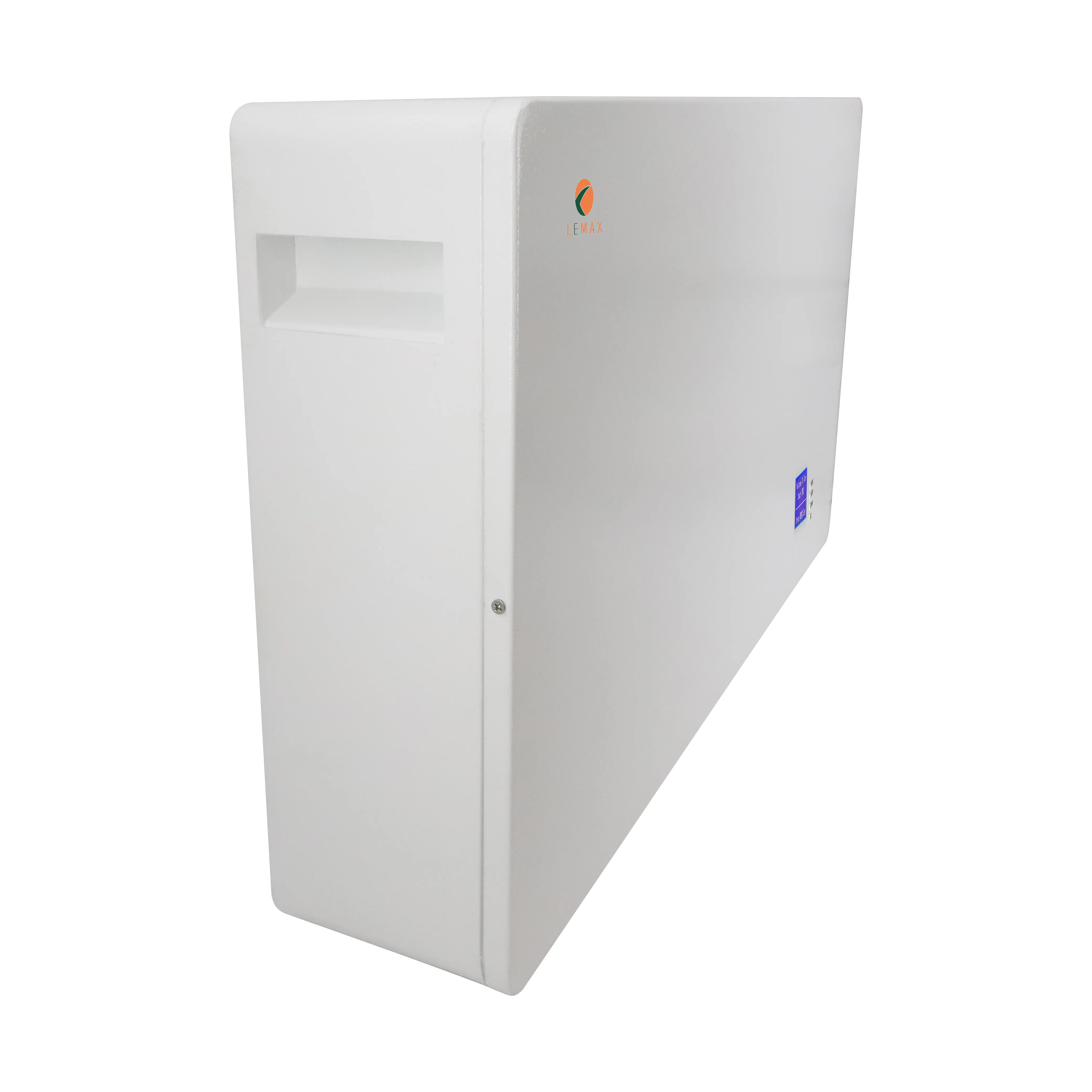

Product details of the wall mounted lithium battery
Product Description
LEMAX wall mounted lithium battery is processed using the materials of the highest quality which are sourced from well-known suppliers. This product has an extremely high level of performance, which is guaranteed by the quality control system. This product is highly demanded in the market for its wide range of applications.
![Wall mounted battery]()
Parameters
| Battery Type |
LiFePO4 |
| Capacity |
200Ah |
| Rated Voltage |
51.2V |
| Total Energy |
10.24kWh |
| Working Voltage Range |
44~58.4V |
| Max. Charge Current |
200A |
| Max. Discharge Current |
200A |
| Standard Charge Current |
100A |
| Standard Discharge Current |
100A |
| Max. Parallel Quantity |
15 |
| Designed Life-span |
8000 cycles
(Test conditions: 80% DOD, 0.2C charge & discharge at +25 ℃) |
| Operating Temperature |
Charge :0℃~60℃
Discharge :-10℃~60℃ |
| Operation Humidity |
5~95% |
| Nominal Operation Altitude |
≤3000m |
| IP protection |
IP52 |
| Installation Method |
Wall-mounted installation |
| Communication |
RS232, RS485, CAN |
| Certification |
MSDS, UN38.3, CE |
| Net Weight |
90.00kg |
| Gross Weight |
93.00kg |
| Production Dimension |
800*450*165mm |
| Carton Dimension |
860*510*230mm |
Application Scenarios
![Inverter]()
Packing Information
| Carton Size |
860*510*230mm |
| Carton packing weight |
93.00kg |
Project Cases
![Project Cases]()
Company Advantage
• LEMAX's are favored by many foreign customers. The export destination is mainly in most countries and regions in Southeast Asia, South Asia, and Africa.
• LEMAX's location enjoys traffic convenience with multiple traffic lines passing through. This is conducive to the outward transportation and is the guarantee of timely supply of products.
• LEMAX can provide professional and practical services based on customer demand.
• LEMAX was established in After years of development, we become one of the outstanding enterprises in the country.
LEMAX provides not only quality but also custom service. Please consult us for more details.
