Product details of the wall mounted battery storage
Product Overview
With the help of experienced craftsman, LEMAX wall mounted battery storage is produced following the highest production standards. The quality guarantee of this product can stand all kinds of strict inspection. The wall mounted battery storage developed by LEMAX is widely used in various fields. Due to its rapid development, the market prospects are promising.
Product Introduction
LEMAX's wall mounted battery storage is processed based on the latest technology. It has excellent performances in the following details.

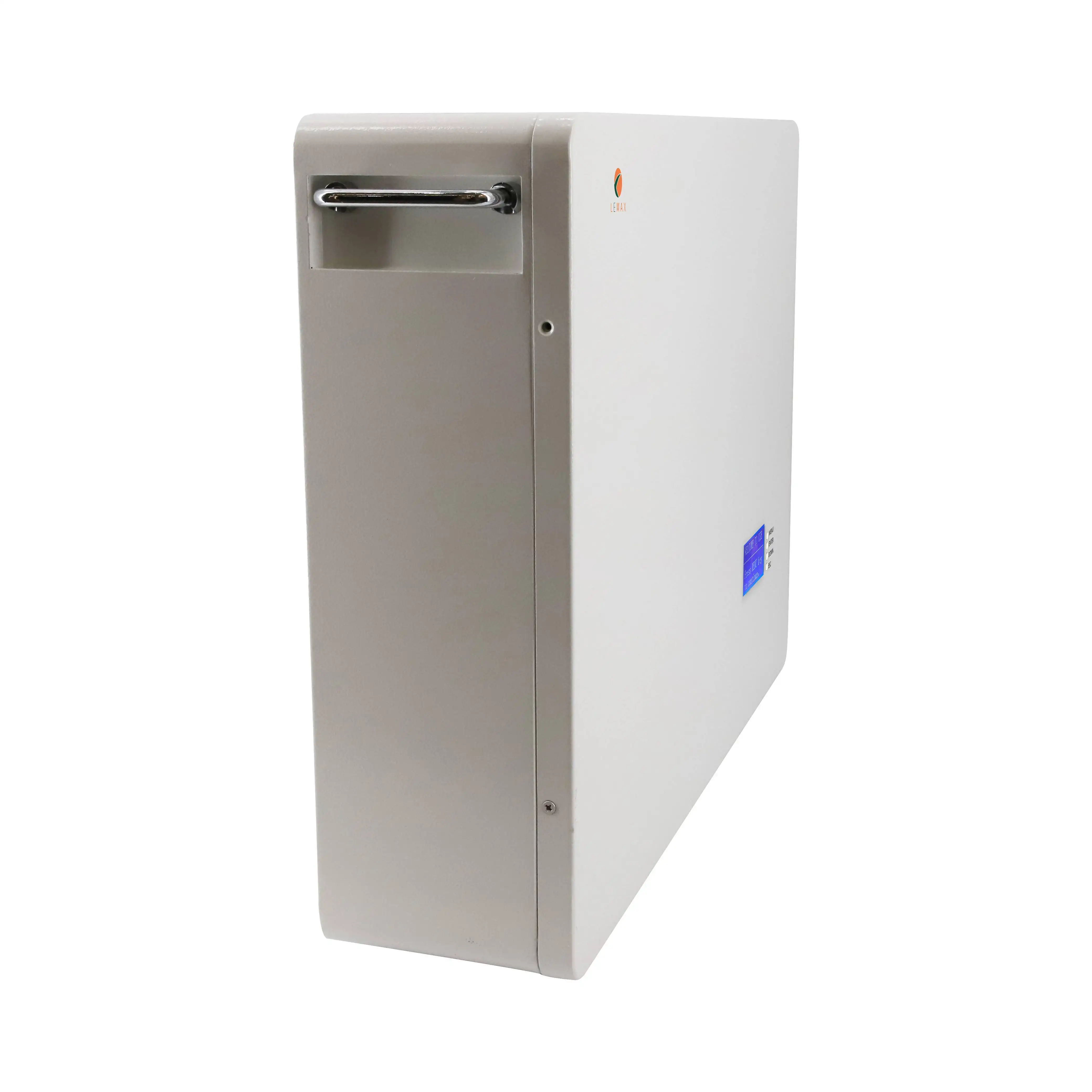

![Wall mounted battery]()
Parameters
| Model |
LM-HP-48V5KWH |
| Battery Type |
LiFePO4 |
| Capacity |
100Ah |
| Rated Voltage |
51.2V |
| Total Energy |
5.12kWh |
| Working Voltage Range |
44~58.4V |
| Max. Charge Current |
100A |
| Max. Discharge Current |
100A |
| Standard Charge Current |
50A |
| Standard Discharge Current |
50A |
| Max. Parallel Quantity |
15 |
| Designed Life-span |
8000 cycles
(Test conditions: 80% DOD, 0.2C charge & discharge at +25 ℃) |
| Operating Temperature |
Charge :0℃~60℃
Discharge :-10℃~60℃ |
| Operation Humidity |
5~95% |
| Nominal Operation Altitude |
≤3000m |
| IP protection |
IP52 |
| Installation Method |
Wall-mounted installation |
| Communication |
RS232, RS485, CAN |
| Certification |
MSDS, UN38.3, CE |
| Net Weight |
46.00kg |
| Gross Weight |
48.00kg |
| Production Dimension |
550*350*165mm |
| Carton Dimension |
620*420*230 mm |
Application Scenarios
![Inverter]()
Packing Information
| Carton Size |
620*420*230 mm |
| Carton packing weight |
48.00kg |
Project Cases
![Project Cases]()
Company Advantages
Shenzhen LEMAX New Energy Co.,Ltd is a company that mainly manages LEMAX actively adopts customer suggestions and continuously improves the service system. Welcome customers to cooperate with us!
