Professional Home Energy Storage Battery Supply

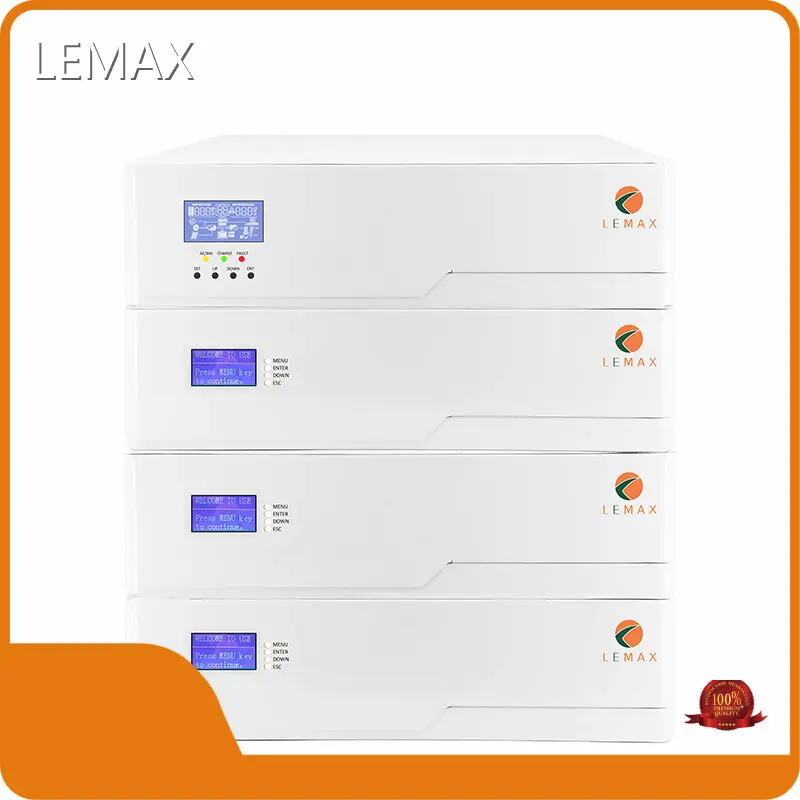

Product details of the home energy storage battery
Product Information
Shenzhen LEMAX New Energy Co.,Ltd adopts superior raw material which comes form home energy storage battery. The quality of products has been recognized by international authoritative testing institutions. The market share of the product is increased steadily, showing a promising application future.
Product parameters
| Model | LM-ESS515 | |
| Battery | Battery Type | LiFePO4 |
| Rated Voltage | 51.2V | |
| Total Energy | 15.36kWh | |
| Working Voltage Range | 44~58.4V | |
| Designed Lifespan | 8000 cycles, (Test conditions:80%DOD,0.2C charge &discharge at +25℃) | |
| Communication protocol | RS232,RS485,CAN | |
| Operating Temperature Range | Charging:0℃ to 60℃, Discharging:-10C to 60℃ | |
| Inverter | Inyerter Output | |
| Rated Output Power | 5,000W | |
| Max.Peak Power | 10,000VA | |
| Rated Output Voltage | 230Vac(L/N/PE single phase) | |
| Rated AC Frequency | 50Hz/60Hz | |
| Switch Time | 10ms(typical) | |
| Rated Battery Voltage | 48Vdc | |
| Max.MPPT Charging Current | 80A | |
| Max.Mains/Generator Charging Current | 60A | |
| Max.Hybrid Charging Current | 80A | |
| PV Input | ||
| Max.PV Array Power | 5,200W | |
| Max.Input Current | 22A | |
| Max.Voltage of Open Circuit | 500Vdc | |
| MPPT Voltage Range | 120~450Vdc | |
| MPPT Tracking Efficiency | 99.90% | |
| Mains/Generator Input | ||
| Input Voltage Range | UPS:170~280Va, APL:90~280Vac | |
| Bypass Overload Current | 40A | |
| General | Humidity Range | 5% to 95% |
| Weight | 160.00kg | |
| Dimensions | 635*400*668mm | |
Product certificate
Case presentation
Company Advantage
• LEMAX has a professional technical team to provide customers with the best technical support and guarantee.
• LEMAX has been exploring and developing domestic and foreign markets by taking advantage of e-commerce trend. Based on quality products, we have opened up a vast market.
• LEMAX's goal is to sincerely provide consumers with quality products as well as professional and thoughtful services.
Please leave your contact information, and LEMAX will contact you as soon as possible. We provide more details and quotation about electric equipment for your reference.
LEMAX is a technology-based manufacturer integrating research and development, production, sales and service of lithium battery products.
