Motive Batteries - - LEMAX 1
Motive Batteries - - LEMAX 1

Motive Batteries - - LEMAX

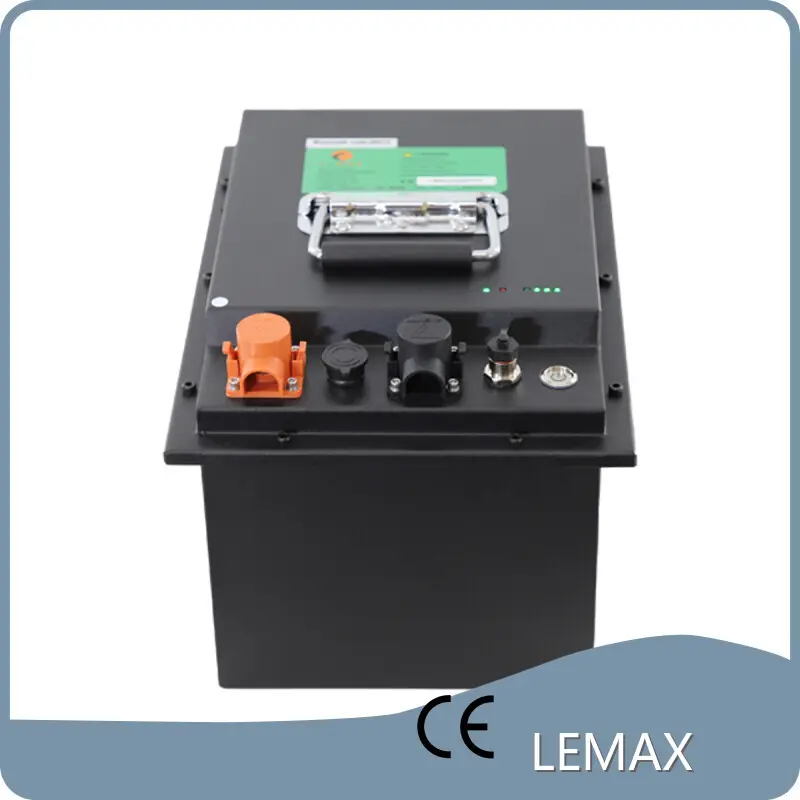

Product details of the motive batteries

Product Information

The production of LEMAX motive batteries adopts lean production model. Its production adheres to the principle of Quality First. To effectively control quality, Shenzhen LEMAX New Energy Co.,Ltd set up professional inspection and QC team.

Motive Power Battery

Model LM-VP24150 LM-VP24230 LM-VP36230 LM-VP36560 LM-VP48230 LM-VP48560 LM-VP80460 LM-VP80560
Specification Nominal Voltage 25.6V 25.6V 38.4V 38.4V 51.2V 51.2V 83.2V 83.2V
Capacity 150Ah 230Ah 230Ah 560Ah 230Ah 560Ah 460Ah 560Ah
Energy 3.84kWh 5.89kWh 11.52kWh 21.5kWh 11.77kWh 28.67kWh 38.27kWh 46.59kWh
Series / Parallel 8S1P 8S1P 12S1P 12S2P 16S1P 16S2P 26S2P 26S2P
Cycle Time >4500 >4500 >4500 >4500 >4500 >4500 >4500 >4500
Dimension (L*W*H) mm 515*270*210 560*360*210 600*350*600 1000*700*800 950*375*550 1000*865*600 820*750*640 1000*765*650
Net Weight 34kg 48kg 180kg 320kg 200kg 540kg 420kg 495kg
Current Charge 100A 100A 100A 280A 100A 280A 200A 280A
Discharge 150A 150A 200A 560A 200A 560A 500A 560A
Max. Discharge 500A (10s) 500A (10s) 800A (10s) 800A (10s) 800A 800A (10s) 800A (10s) 800A (10s)
Stangard Charge 1-1.5h 1.5-2.5h 1-1.3h 2.5-3h 1-1.3h 2.5-3h 2-2.5h 1.5-3h
Storage Temperature Charge 32°F~140°F (0℃~60℃) 32°F~140°F (0℃~60℃) 32°F~140°F (0℃~60℃) 32°F~140°F (0℃~60℃) 32°F~140°F (0℃~60℃) 32°F~140°F (0℃~60℃) 32°F~140°F (0℃~60℃) 32°F~140°F (0℃~60℃)
Discharge 4°F~140°F (-20℃~60℃) 4°F~140°F (-20℃~61℃) 4°F~140°F (-20℃~62℃) 4°F~140°F (-20℃~63℃) 4°F~140°F (-20℃~64℃) 4°F~140°F (-20℃~65℃) 4°F~140°F (-20℃~66℃) 4°F~140°F (-20℃~67℃)
Other Spec. IP Degree IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65
Optional Bluetooth Yes Yes Yes Yes Yes Yes Yes Yes
Heating Yes Yes Yes Yes Yes Yes Yes Yes
External Controller Yes Yes Yes Yes Yes Yes Yes Yes
Application Scenarios



Company Advantage

• Our products are not only sold well in domestic first and second-tier cities, but also exported to foreign markets in Southeast Asia, Central Asia, North America and others.
• We will have specially-assigned people to pay a return visit to the customer regularly, and make improvement in the first time according to the customer's opinions.
• Our company owns a research and development and management team with modern quality. Our team consists of experienced experts, technicians and managers, so they can provide specific solutions, based on the problems in the production process.
• Since the beginning in LEMAX has been continuously improving the production process and product quality. Now we gain industry recognition with high-quality products.
We have been providing high quality motive batteries for a long time. We look forward to working with you.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
