Parameters
Model | LM-JS-51.2V100Ah |
Battery Type | LiFePO4 |
Capacity | 100Ah |
Rated Voltage | 51.2V |
Total Energy | 5.12kWh |
Working Voltage Range | 40 ~58.4V |
Max Charge Current | 100A |
Max Discharge Current | 100A |
Standard Charge Current | 50A |
Standard Discharge Current | 100A |
DOD | 1 |
Max Parallel Quantity | 15 |
Designed Life-span | 8000 cycles (Test conditions:100%DOD,0.2C charge&discharge at +25 ℃) |
Operating Temperature | Charge :0℃~60℃ Discharge :-10℃~60℃ |
Operation Humidity | 5~95% |
Nominal Operation Altitude | <3000m |
IP protection | IP54 |

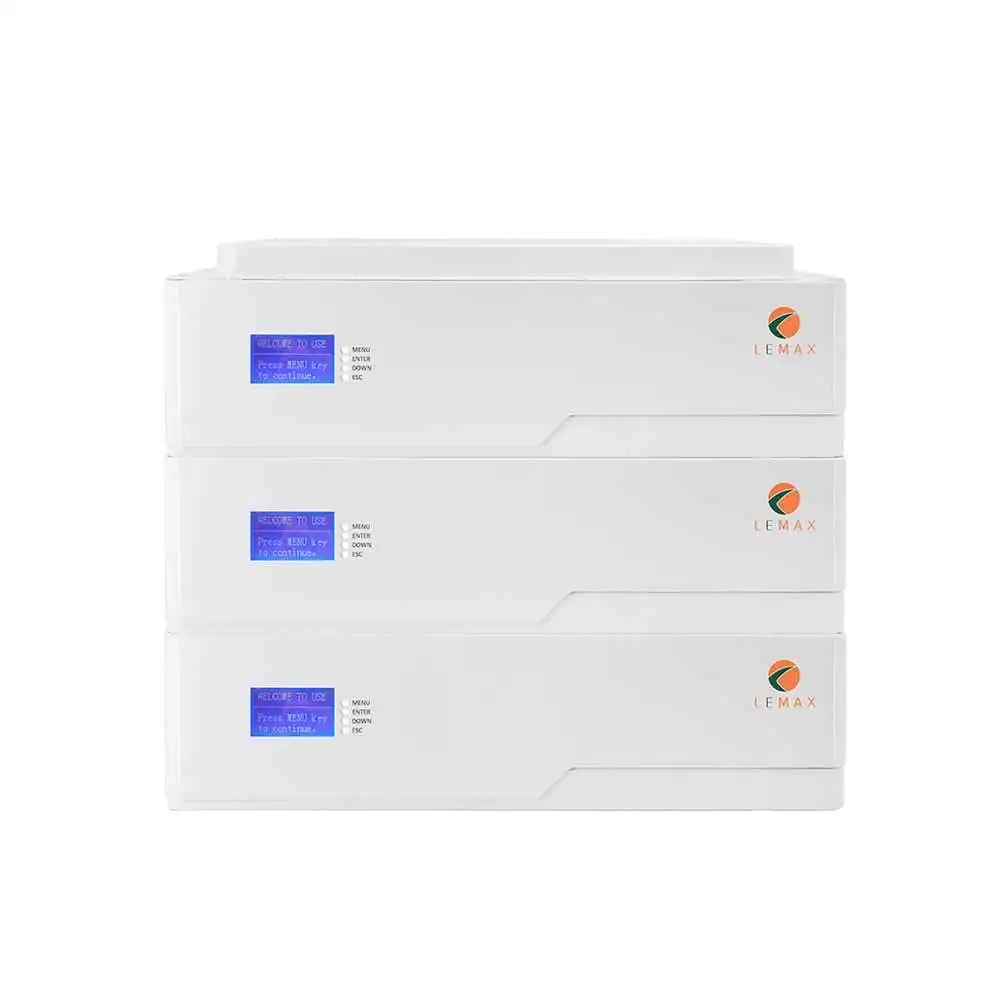

Installation Method | Stacking installation |
Communication | RS232, RS485, CAN |
Certification | MSDS、UN38.3、CE、ISO |
Net Weight(Kg) | 46.3 |
Gross Weight (Kg) | 48 |
Production Dimension (mm) | 635*400*192 |
Carton Dimension (mm) | 700*465*240 |
*The actual size and weight are subjected to the physical product. |
Application Scenarios
Packing Information
Carton Size | 700*465*240mm |
Carton packing weight | 48KG |
