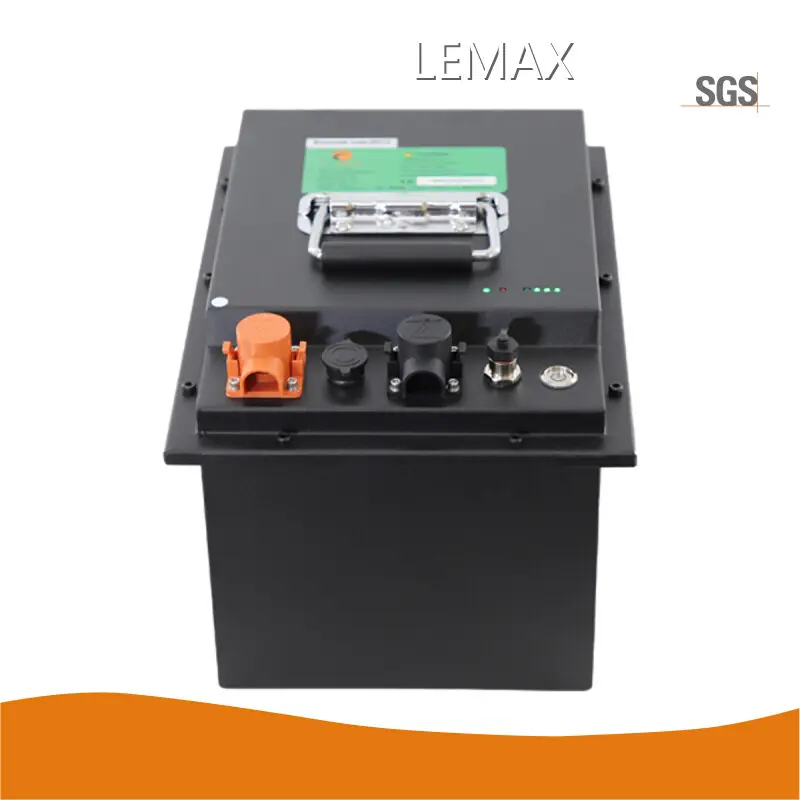

Product details of the motive batteries
Product Introduction
The raw material suppliers of LEMAX motive batteries have undergone rigorous screening. It has excellent combined functions through continuous innovation. The devotion to the quality of motive batteries helps LEMAX to be a leading manufacturer in the industry.
![Aerial Work Platform Battery]()
Parameters
| Model |
LM-VP2460 |
LM-VP2490 |
LM-VP24120 |
LM-VP24150 |
LM-VP24230 |
LM-VP48105 |
LM-VP48150 |
LM-VP48280 |
| Specification |
Nominal Voltage |
25.6V |
25.6V |
25.6V |
25.6V |
25.6V |
51.2V |
51.2V |
51.2V |
| Capacity |
60Ah |
90Ah |
120Ah |
150Ah |
230Ah |
105Ah |
150Ah |
280Ah |
| Energy |
1.54kWh |
2.3kWh |
3.1kWh |
3.84kWh |
5.89kWh |
5.38kWh |
7.68kWh |
14.34kWh |
| Series / Parallel |
8S2P |
8S3P |
8S4P |
8S1P |
8S1P |
16S1P |
16S1P |
16S1P |
| Cycle Time |
＞4,500 |
＞4,500 |
＞4,500 |
＞4,500 |
＞4,500 |
＞4,500 |
＞4,500 |
＞4,500 |
| Dimension |
300*225*210 |
300*225*210 |
310*300*210 |
395*300*210 |
560*360*210 |
524*360*260 |
450*330*260 |
712*275*275 |
| Net Weight |
15.5kg |
15.5kg |
24kg |
28kg |
48kg |
46kg |
85kg |
110kg |
| Current |
Charge |
50A |
50A |
50A |
50A |
100A |
50A |
50A |
100A |
| Discharge |
100A |
100A |
100A |
100A |
200A |
100A |
100A |
200A |
| Max. Discharge |
500A
(10s) |
500A
(10s) |
500A
(10s) |
500A
(10s) |
500A
(10s) |
500A
(10s) |
500A
(10s) |
500A
(10s) |
| Stangard Charge |
0.5-1h |
1.5-2.5h |
1-1.3h |
1.5-3h |
1-1.3h |
2-3h |
1-2.5h |
1.5-3h |
| Storage Temperature |
Charge |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
| Discharge |
4°F~140°F
(0℃~60℃) |
4°F~140°F
(0℃~60℃) |
4°F~140°F
(0℃~60℃) |
4°F~140°F
(0℃~60℃) |
4°F~140°F
(0℃~60℃) |
4°F~140°F
(0℃~60℃) |
4°F~140°F
(0℃~60℃) |
4°F~140°F
(0℃~60℃) |
| Other Spec. |
IP Degree |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
| Optional |
Bluetooth |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Heating |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| External Controller |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Application Scenarios
![Application-Scenarios]()
Company Feature
• Abiding by the service concept of 'customers first, satisfaction-oriented', we provide you with professional consulting and after sales service.
• Our company has advanced production equipment and perfect management system and we also focus on talents cultivation. Thus, we form strong technical teams and experienced management teams.
• The natural resources around LEMAX are abundant. The geographical condition is excellent which brings developed information and traffic convenience.
• LEMAX actively develops export business. are mainly exported to Europe, America, Africa, South Asia, Southeast Asia, and other regions.
LEMAX's are high-quality and affordable. If you still have any questions, we sincerely invite you to visit the factory.
