The world's leading manufacturer of new energy battery and energy storage system.

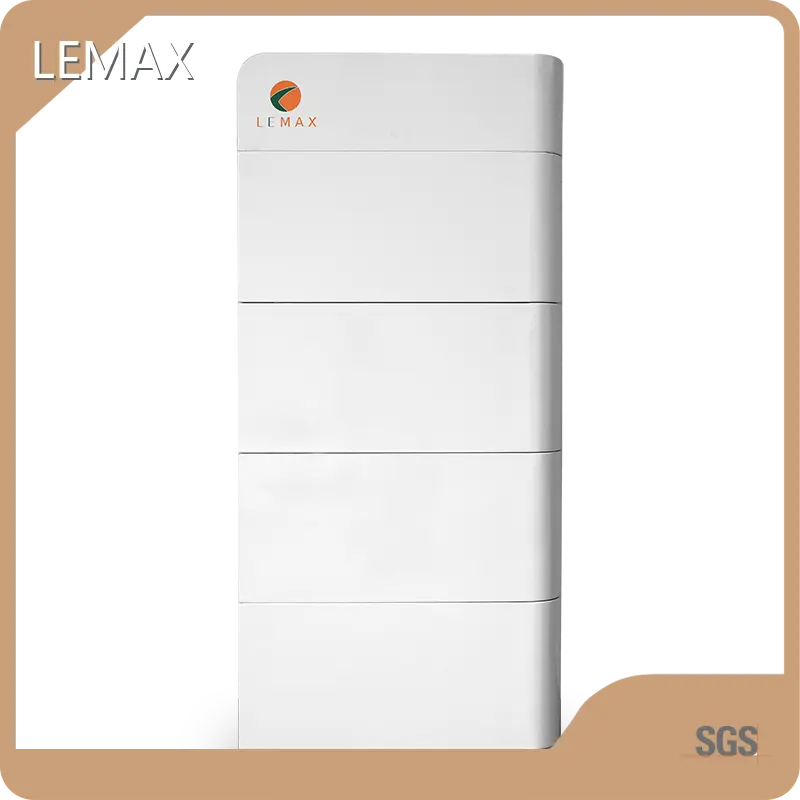

High Voltage Battery - - LEMAX 1
High Voltage Battery - - LEMAX 1

High Voltage Battery - - LEMAX

Inquiry
Send your inquiry

Hight Voltage Battery

Parameters
Model LM-THV-10kWh LM-THV-15kWh LM-THV-20kWh LM-THV-25kWh
Battery Module 5.12kWh 102.40V 46kg
Number of Modules 2 3 4 5
Nominal Voltage 204.8V 307.2V 409.6V 512V
Capacity 50Ah 50Ah 50Ah 50Ah
Total Energy 10.24kWh 15.36kWh 20.48kWh 25.60kWh
Resistance ≤80mΩ ≤100mΩ ≤120mΩ ≤150mΩ
Charge Voltage 224V 336V 448V 560V
Discharge Cut Off Voltage 160V 240V 320V 400V
Max. Working Current 50A
Single Module Weight (kg) 46
Single Module Dimension (mm) 630*185*345
Main Control Box Weight (kg) 25
Main Control Box Dimension (mm) 630*185*200
System Dimension Weight (kg) 135 185 230 280
System Dimension (mm) 630*185*955 630*185*1300 630*185*1650 630*185*2000
General
Charge Temperature Range 0℃~55℃ (Working below 0℃ will affect battery performance)
Discharge Temperature Range -20℃~55℃ (Working below 0℃ will affect battery performance)
Cycle Time ≥8000 Cycles @ 80%DOD, 25℃, 0.5C
Storage Condition -20℃~55℃ @60%±25% Humidity
Installation Floor installation
IP protection IP65
Design Life Over 15 years
Communication RS232, RS485, CAN
*The actual size and weight are subjected to the physical product.
Application Scenarios

High Voltage Battery

brand inverter



Project Cases

Project Cases


Company Advantages

· Various styles of high voltage battery are available for customer's selection.

· The product is featured by fine finish, durability and optimal performance.

· Shenzhen LEMAX New Energy Co.,Ltd now has a strong design group, can research and develop high voltage battery independently.


Company Features

· Shenzhen LEMAX New Energy Co.,Ltd is highly reputable in the industry. We are widely accepted because of our strong capacity for manufacturing high voltage battery.

· We have established a strong customer base. These customers have collaborated with us for many years and they highly trust us.

· Quality is always a solid foundation for long-term development of Shenzhen LEMAX New Energy Co.,Ltd. Please contact.


Application of the Product

The high voltage battery produced by our company is suitable for various occasions in industry.

LEMAX insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
