Product details of the wall mounted lithium battery
Product Introduction
LEMAX wall mounted lithium battery undergoes regular inspection to achieve proper functionality. The product is of great quality which has been approved by the international certifications. With these distinct features, the product is ideally suited for its applications.

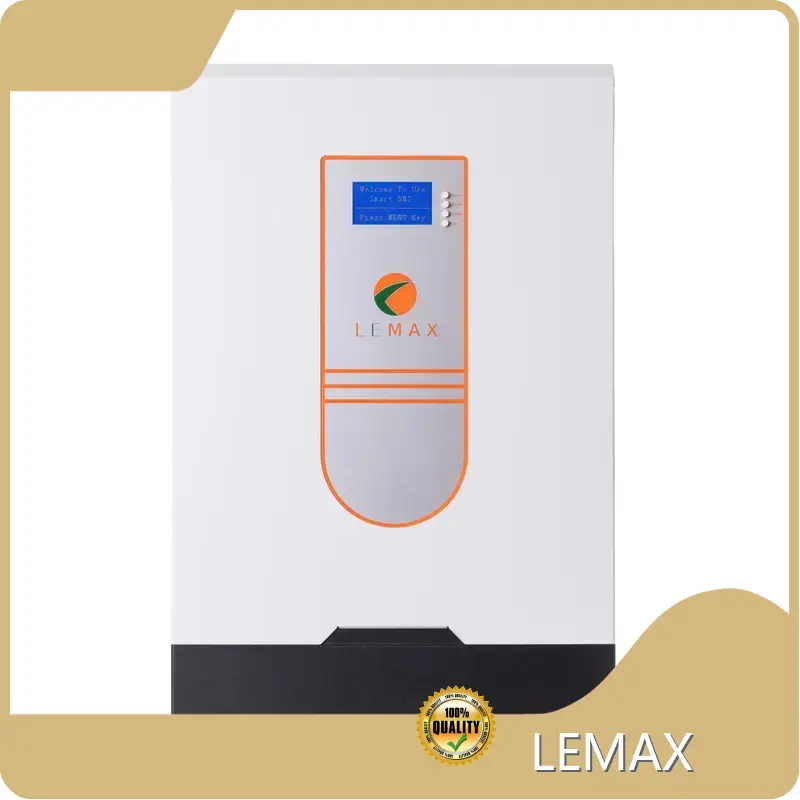

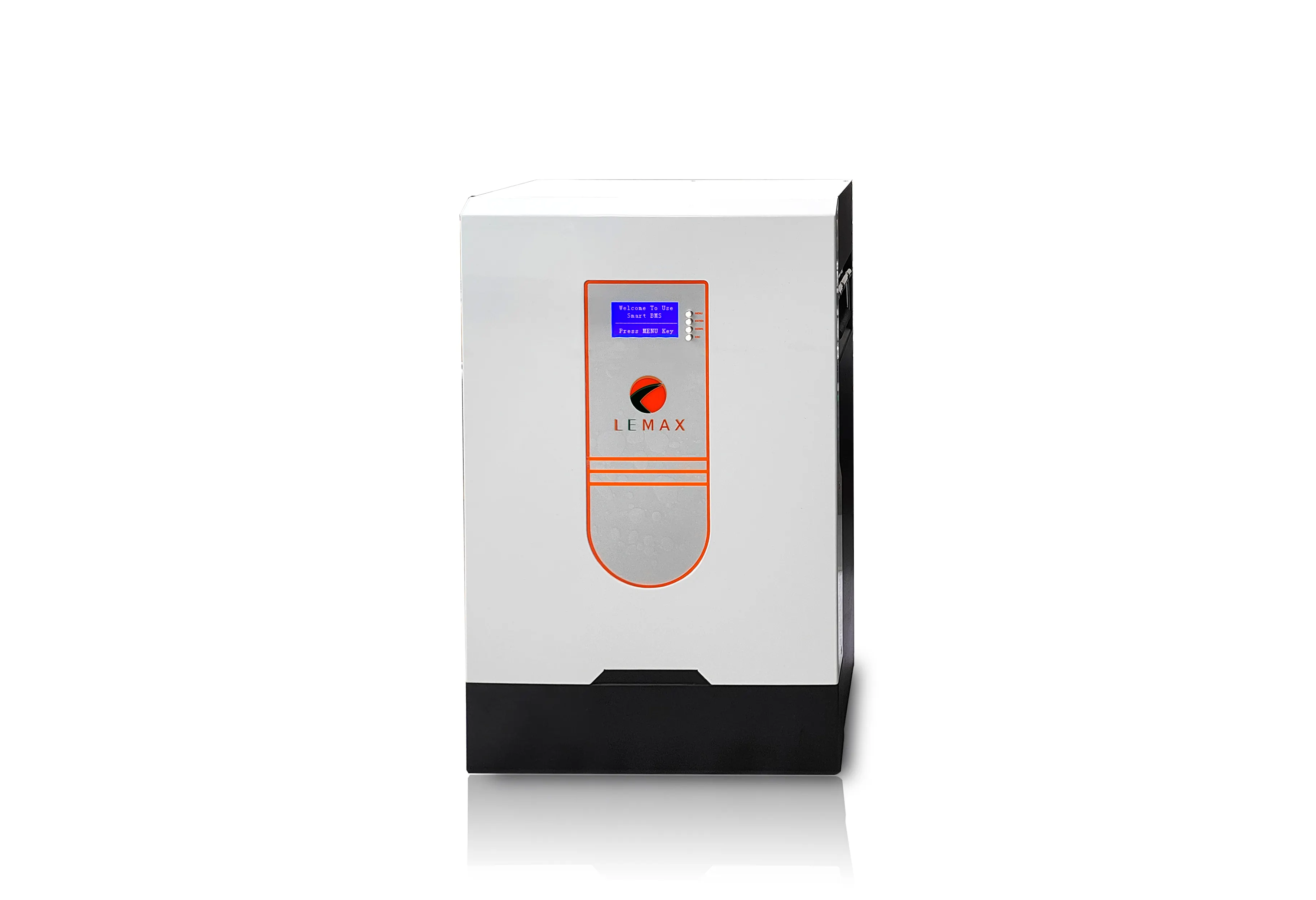

![Wall Mounted Battery]()
Parameters
| Battery Type |
LiFePO4 |
| Capacity |
100Ah |
| Rated Voltage |
51.2V |
| Total Energy |
5.12kWh |
| Working Voltage Range |
44~58.4V |
| Max. Charge Current |
100A |
| Max. Discharge Current |
100A |
| Standard Charge Current |
50A |
| Standard Discharge Current |
50A |
| Max. Parallel Quantity |
15 |
| Designed Life-span |
8000 cycles
(Test conditions: 80% DOD, 0.2C charge & discharge at +25 ℃) |
| Operating Temperature |
Charge: 0℃~60℃
Discharge: -10℃~60℃ |
| Operation Humidity |
5~95% |
| Nominal Operation Altitude |
≤3000m |
| IP Protection |
IP52 |
| Installation Method |
Wall-mounted installation |
| Communication |
RS232, RS485, CAN |
| Certification |
MSDS, UN38.3, CE |
| Net Weight |
46.50kg |
| Gross Weight |
49.50kg |
| Production Dimension |
635*400*165mm |
| Carton Dimension |
685*450*220mm |
Application Scenarios
![Application Scenarios]()
![Inverter]()
Packing Information
| Carton Size |
685*450*220mm |
| Carton packing weight |
49.50kg |
Project Cases
![Project Cases]()
Company Feature
• Our company has a unique geographical advantage, surrounded by complete supporting facilities and convenient transportation.
• After years of exploration and development, LEMAX accumulates rich industry experience and enjoys a high popularity in the industry.
• In recent years, our company has continuously optimized the export environment and striven to broaden export channels. Besides, we actively docked foreign markets to change the simplex status of the product sales market and to increase the market share in the international market.
• With the rapid development of the economy, customer service management no longer merely belongs to the core of service-oriented enterprises. It becomes the key point for all enterprises to be more competitive. In order to follow the trend of the times, LEMAX runs an outstanding customer service management system by learning advanced service idea and know-how. We promote customers from satisfaction to loyalty by insisting on providing quality services.
LEMAX's are quality, safe and practical. If you have any interests, please call us. We look forward to cooperating with you.
