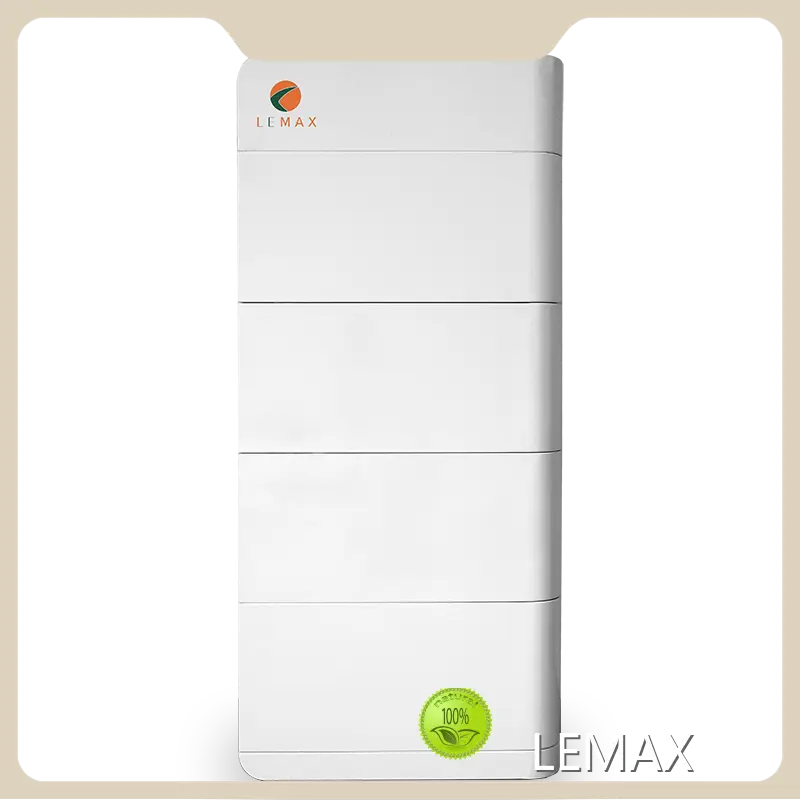

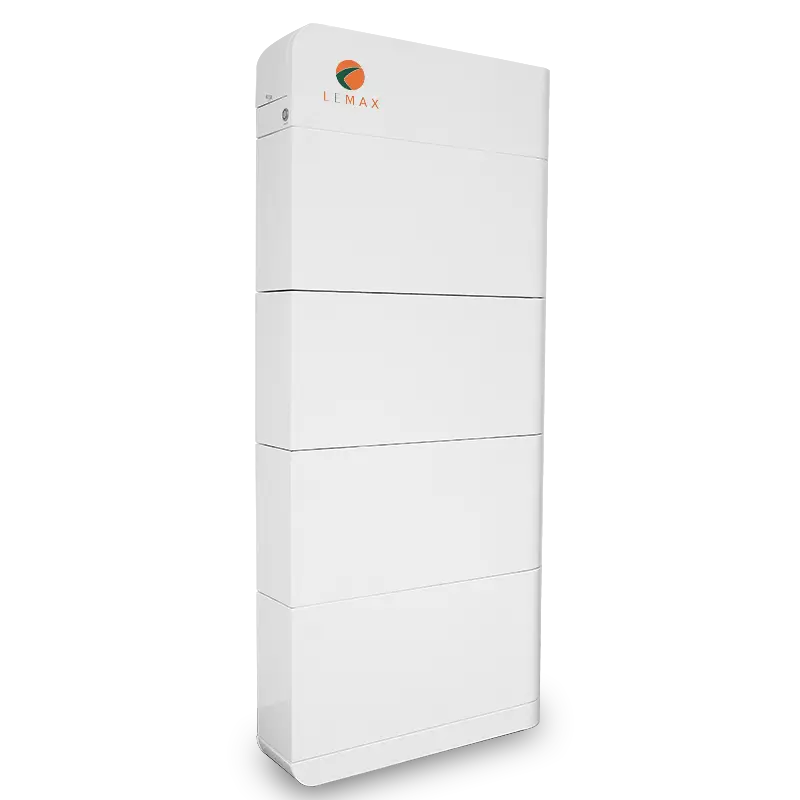

Energy Storage Battery LEMAX Brand

Inquiry

Product details of the energy storage battery


Product Overview

To differentiate from competitors, LEMAX energy storage battery adopts a unique design developed by our R&D team. Years of application of energy storage battery proves the good performances and the good application effect of it. Bearing the spirit of craftsmanship in mind, LEMAX only offers the most delicate energy storage battery for you.


Product Introduction

LEMAX guarantees to be high-quality by carrying out highly standardized production. Compared with other products in the same category, it has the following advantages.

LM-THV-海报3

 Product parameters

Model LM-THV-8kWh LM-THV-12kWh LM-THV-16kWh LM-THV-20kWh
Battery Module 4.096kWh 102.4V
Number of Module 2 3 4 5
Nominal Voltage 204.8V 307.2V 409.6V 512V
Capacity 40Ah 40Ah 40Ah 40Ah
Total Energy 8.19kWh 12.29kWh 16.38kWh 20.48kWh
Working Voltage Range 179.2~227.2V 268.8~340.8V 358.4~454.4V 448~568V
Standard Working Current 20A
Max.Working Current 40A
Single Battery Module Weight 36kg
Single Module Dimension 700*200*180mm
Main Control Box Weight 15kg
Main Control Box Dimension 700*200*150mm
System Dimension Weight 87kg 123kg 159kg 195kg
System Dimension 700*200*510mm 700*200*690mm 700*200*870mm 700*200*1050mm
Charge Temperature Range 0℃~55℃ (Working below 0℃ will affect battery performance)
Discharge Temperature Range -10℃~55℃ (Working below 0℃ will affect battery performance)
Designed Lifespan

8000 cycles

(Test conditions:80%DOD, 0.2C charge & discharge at +25℃)

Communication RS485, CAN
IP Protection IP65
Nominal Operation Altitude ≤3000m

Application scenarios

应用场景图 LM-HV

Product certificate

证书 (2)

Case presentation

LM-JC Cabinet Battery~1
LM-JC Cabinet Battery~1
506b40a25d9dda76229943c6bda4870
506b40a25d9dda76229943c6bda4870
微信图片_20231213155159~1
微信图片_20231213155159~1
微信图片_20231201092629~1
微信图片_20231201092629~1
微信图片_20231201092134
微信图片_20231201092134
微信图片_20221128100815
微信图片_20221128100815


Company Information

As an integrated enterprise in Shenzhen LEMAX New Energy Co.,Ltd is engaged in the acquisition, processing, production and sales. The main products include Our company adheres to the business philosophy of 'pursuit of excellence, endless progress', and we practice the service principle of 'consensus-gathered, integrity-based, complete dedication, service for society'. Besides, we follow the core value of 'innovation, quality, service, sharing'. Our company brings a group of technical backbones together, providing strong technical support for the production of quality products. LEMAX has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
We hope to cooperate with you for a win-win situation and jointly create a better future.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
