The world's leading manufacturer of new energy battery and energy storage system.

Energy Storage Battery LEMAX-1 1
Energy Storage Battery LEMAX-1 2
Energy Storage Battery LEMAX-1 3
Energy Storage Battery LEMAX-1 4
Energy Storage Battery LEMAX-1 1
Energy Storage Battery LEMAX-1 2
Energy Storage Battery LEMAX-1 3
Energy Storage Battery LEMAX-1 4

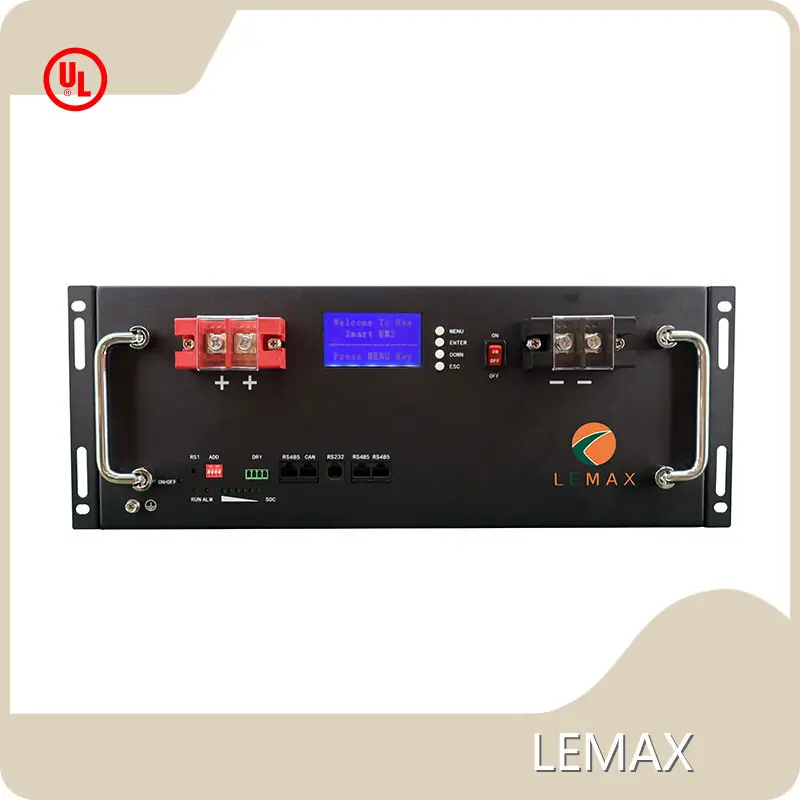

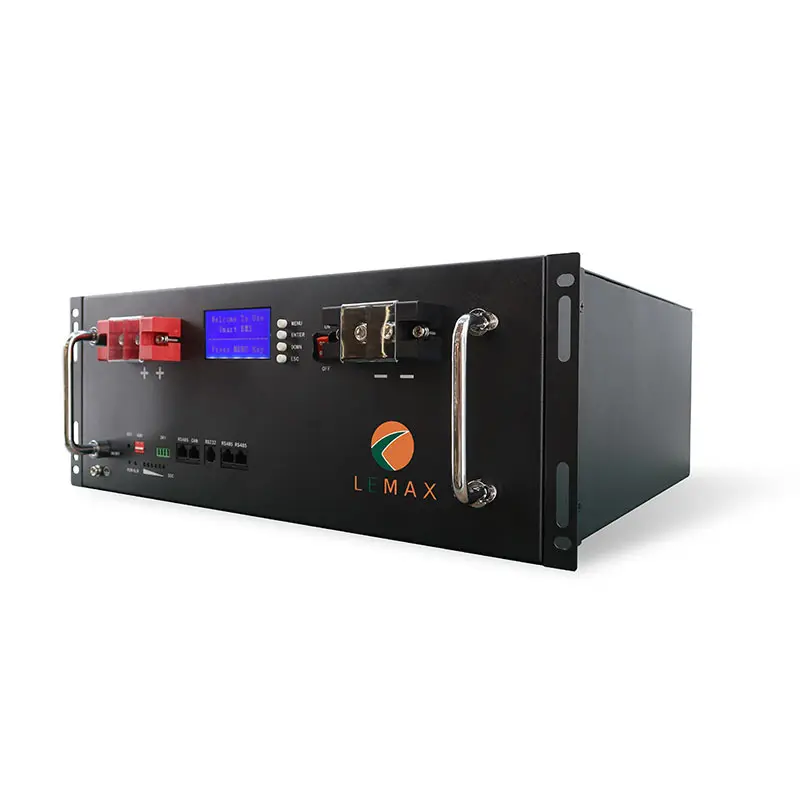

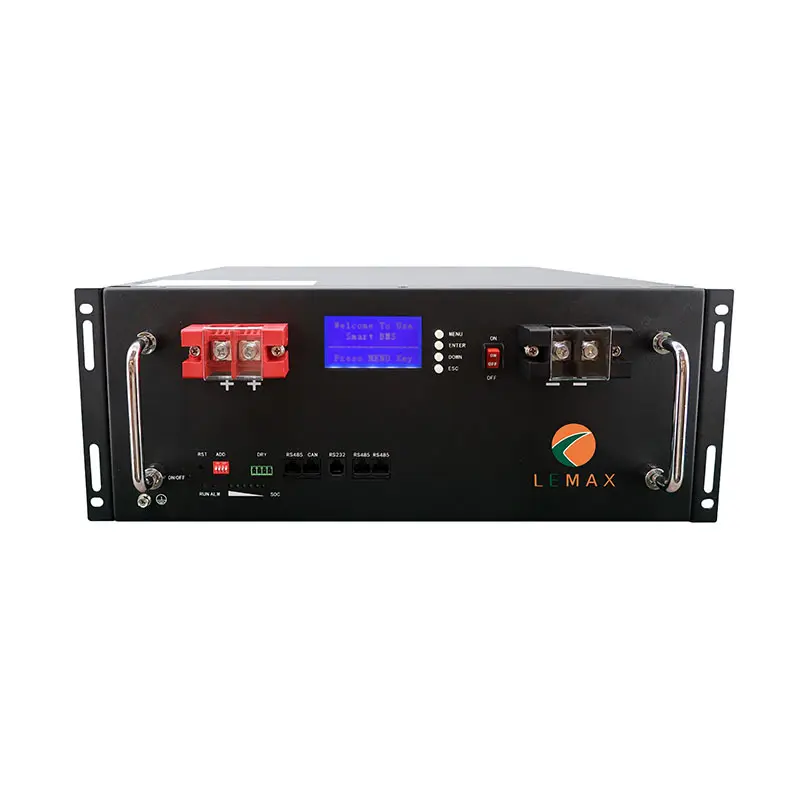

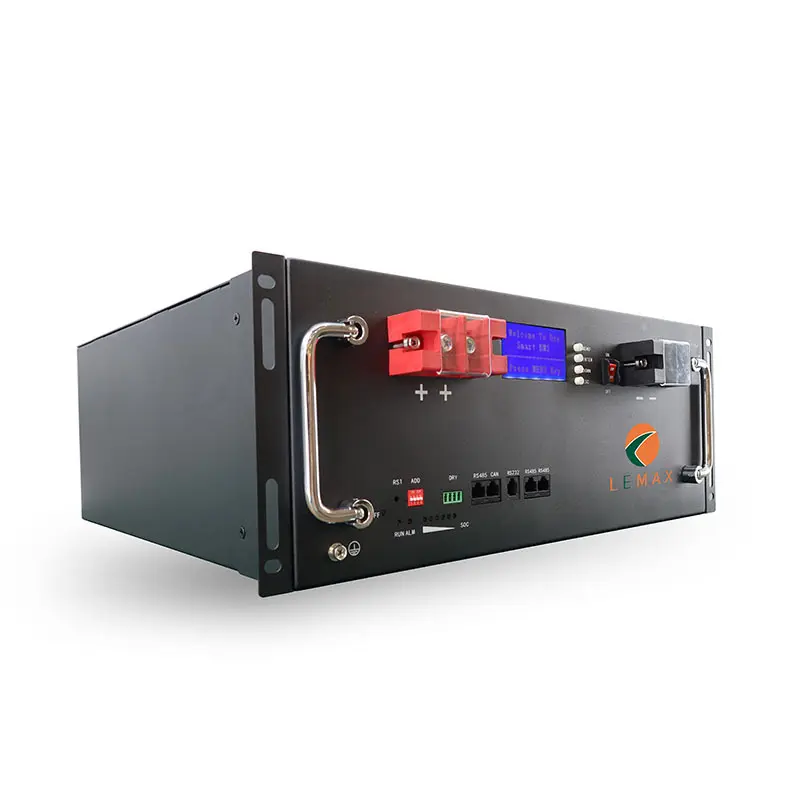

Energy Storage Battery LEMAX-1

Inquiry
Send your inquiry

Product details of the energy storage battery


Product Information

Lots of time and money are spent upfront perfecting LEMAX energy storage battery. The inspection and check are strengthened for many times to make sure its quality. Being cost-efficient, the product will be applied more widely in the future.

Rack Mounted Battery (2)

 Product parameters

Model LM-JC-51.2V100Ah
Battery Type LiFePO4
Capacity 100Ah
Rated Voltage 51.2V
Total Energy 5.12kWh
Working Voltage Range 44~58.4V
Max Charge Current 100A
Max Discharge Current 100A
Standard Charge Current 50A
Standard Discharge Current 50A
Max Parallel Quantity 15
Designed Life-span 8000 cycles(Test conditions:100%DOD,0.2C charge&discharge at +25 ℃)
Operating Temperature Charge:0℃~60℃Discharge:-10℃~60℃
Operation Humidity 5~95%
Nominal Operation Altitude ≤3000m
IP protection IP54
Installation Method Rack-mounted installation
Communication RS232, RS485, CAN
Certification MSDS、UN38.3、CE
Net Weight 44.00kg
Gross Weight 46.00kg
Production Dimension 483*432*178mm
Carton Dimension 525*525*235mm
JC-Application-Scenarios-5kwh (2)

Product certificate

证书 (2)

Case presentation

LM-JC Cabinet Battery~1
LM-JC Cabinet Battery~1
506b40a25d9dda76229943c6bda4870
506b40a25d9dda76229943c6bda4870
微信图片_20231213155159~1
微信图片_20231213155159~1
微信图片_20231201092629~1
微信图片_20231201092629~1
微信图片_20231201092134
微信图片_20231201092134
微信图片_20221128100815
微信图片_20221128100815


Company Advantage

• LEMAX's superior geographic location and traffic convenience make the transportation of really easy.
• LEMAX adheres to the service tenet that we always consider for customers and share their worries. We are committed to providing excellent services.
• LEMAX always believes that a professional team makes a great contribution to the rapid development for our enterprise. This is why we establish an excellent team engaged in management, design, production, and marketing. All this enables our company to develop rapidly.
• Since the establishment in our company has experienced various difficulties during the continuous development for years. We have accumulated rich experience, and achieved excellent results. Now, we take a high position in the industry.
LEMAX sincerely hopes that every customer can purchase their favorite We are looking forward to building long-term and friendly partnerships with clients!
