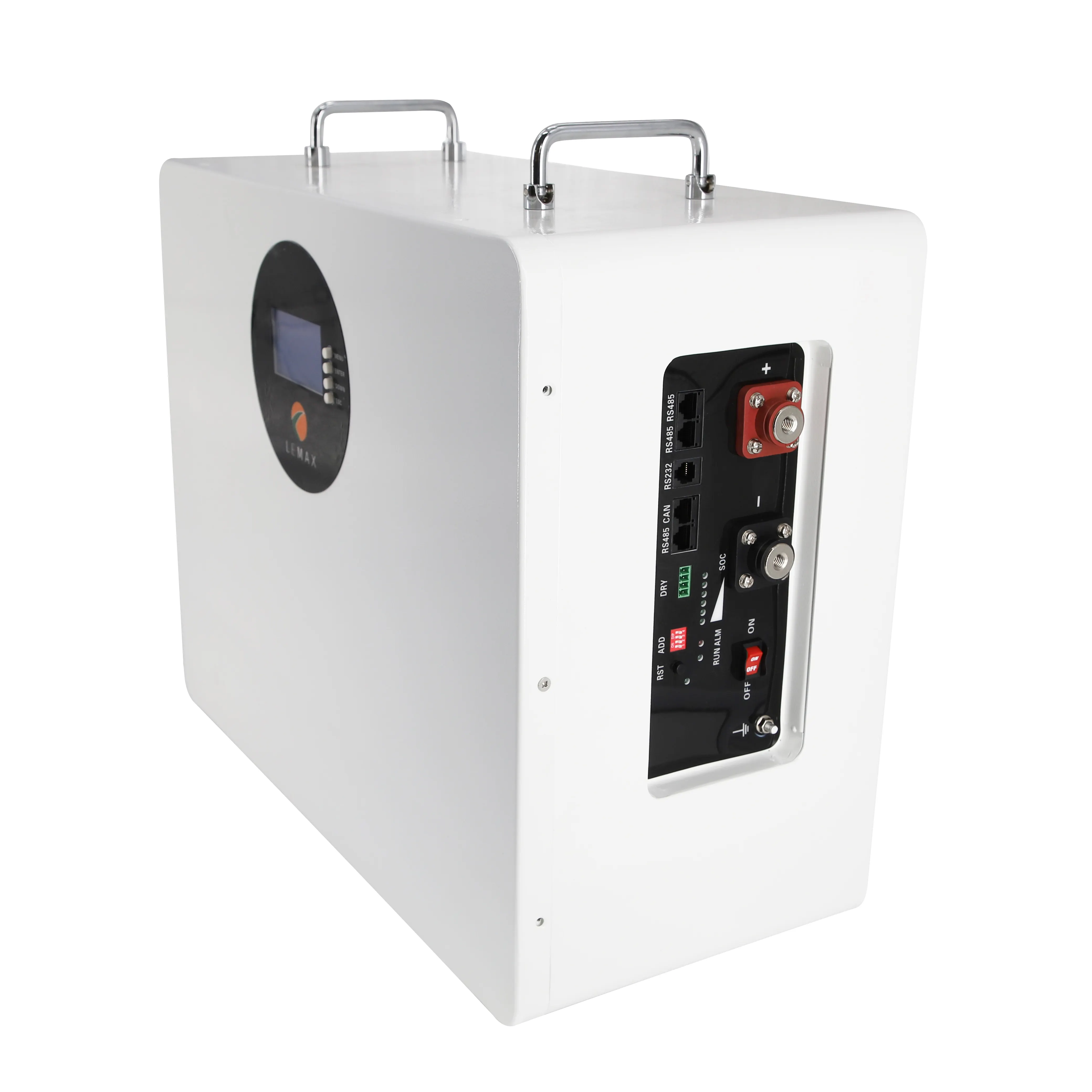

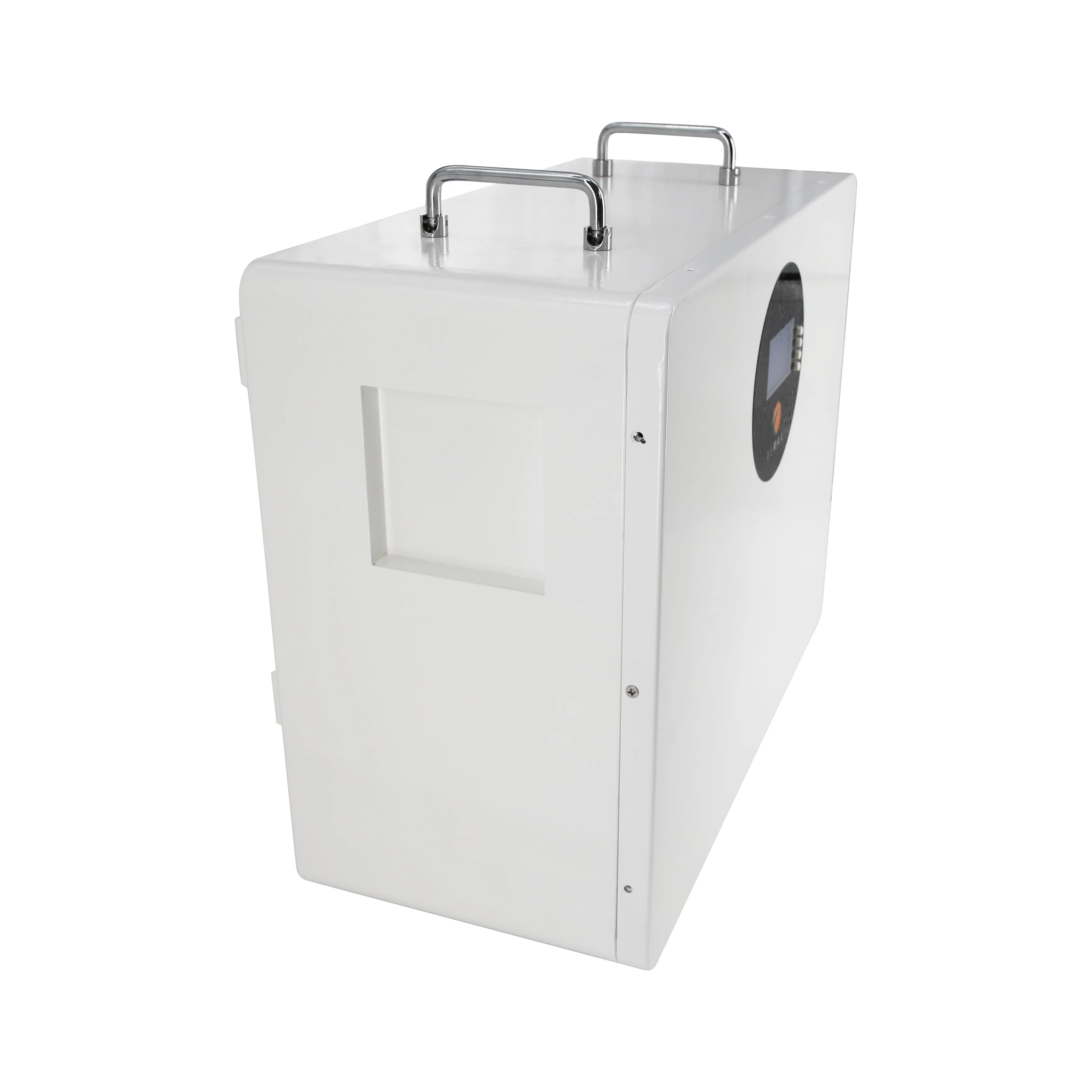

Product details of the lithium battery wall mount
Product Description
The production of LEMAX lithium battery wall mount adopts the high standard of workmanship. The technical key indicators of lithium battery wall mount products have reached the international advanced level. Shenzhen LEMAX New Energy Co.,Ltd has numbers of production lines to meet large-scale production.
Parameter
| Battery Type |
LiFePO4 |
| Capacity |
300Ah |
| Rated Voltage |
25.6V |
| Total Energy |
7.68kWh |
| Working Voltage Range |
22~29.2V |
| Max. Charge Current |
200A |
| Max. Discharge Current |
200A |
| Standard Charge Current |
100A |
| Standard Discharge Current |
100A |
| Max. Parallel Quantity |
15 |
| Designed Life-span |
8000 cycles
(Test conditions: 80%DOD, 0.2C charge & discharge at +25 ℃) |
| Operating Temperature |
Charge: 0℃~60℃
Discharge: -10℃~60℃ |
| Operation Humidity |
5~95% |
| Nominal Operation Altitude |
≤3000m |
| IP Protection |
IP52 |
| Installation Method |
Wall-mounted installation |
| Communication |
RS232, RS485, CAN |
| Certification |
MSDS, UN38.3, CE |
| Net Weight |
65kg |
| Gross Weight |
68kg |
| Production Dimension |
510*400*235mm |
| Carton Dimension |
560*450*290mm |
Application Scenarios
![25.6V300Ah]()
![Inverter]()
Project Cases
![Project Cases]()
Company Advantage
• Established in LEMAX has struggled hard in the industry for years. Now we have achieved rapid development.
• With the sound sales network, LEMAX sells to the domestic market and foreign market.
• Based on customer demand, LEMAX insists on seeking excellence and taking innovation, so as to provide consumers with better services.
If you would like to purchase our please leave your contact information. For your reference, LEMAX will send you quotation as soon as possible.
