Bulk Buy Wall Mounted Battery Cost


Product details of the wall mounted battery

Product Overview

The whole production of LEMAX wall mounted battery is supported by the technicians with extensive industry expertise and the leading production technology. The inspection and check are strengthened for many times to make sure its quality. LEMAX's wall mounted battery is widely used in various industries and fields. Shenzhen LEMAX New Energy Co.,Ltd's management solution helps it deliver better customer service.

Product Information

LEMAX's wall mounted battery has better quality than other products in the industry, which is specifically shown in the following aspects.

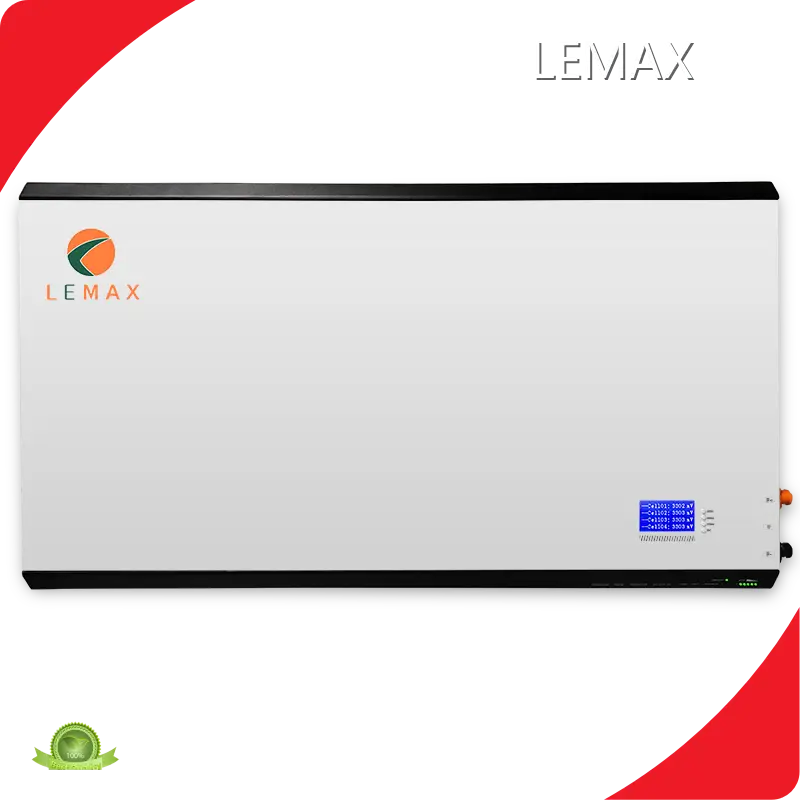

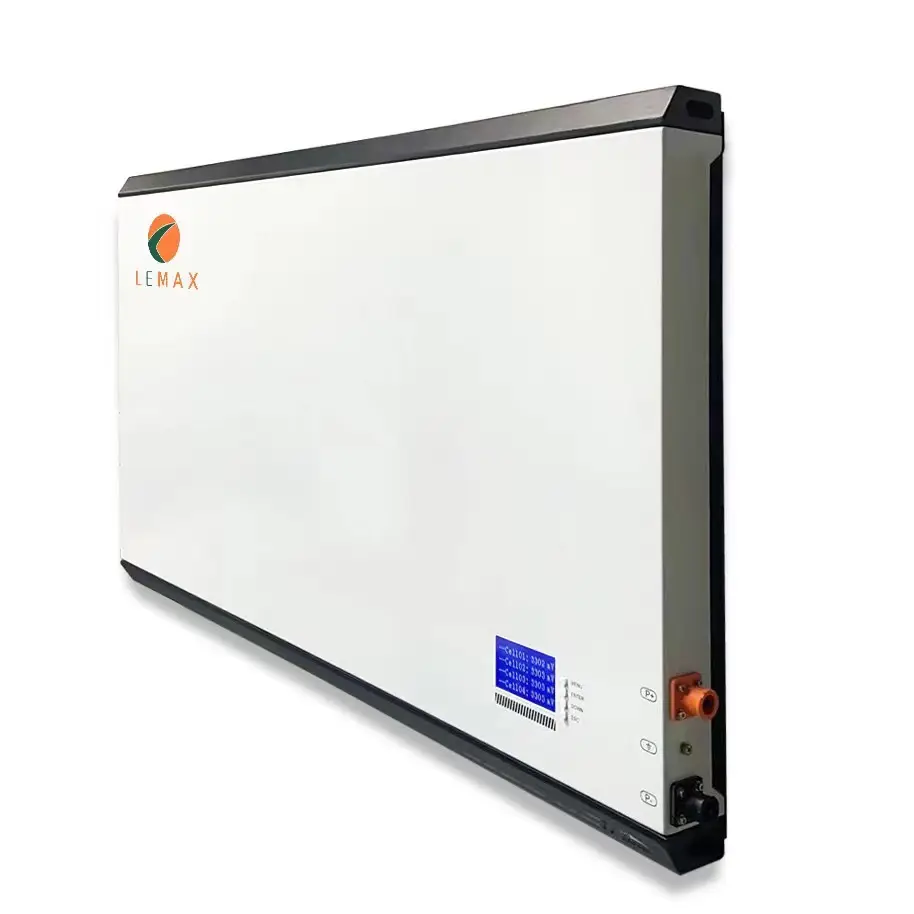

Wall Mounted Battery

Model LM-JP-51.2V135Ah
Battery Type LiFePO4
Capacity 135Ah
Rated Voltage 51.2V
Total Energy 6.91kWh
Working Voltage Range 44~58.4V
Max Charge Current 100A
Max Discharge Current 100A
Standard Charge Current 50A
Standard Discharge Current 100A
DOD 80%
Max Parallel Quantity 15
Designed Life-span 6000 cycles (Test conditions:80%DOD,0.2C charge&discharge at +25 ℃)
Operating Temperature Charge :0℃~60℃ Discharge :-10℃~60℃
Operation Humidity 5~95%
Nominal Operation Altitude ≤3000m
IP protection IP22
Installation Method Wall-mounted installation
Communication RS232, RS485, CAN
Certification MSDS、UN38.3、CE
Net Weight 63.30kg
Gross Weight 71.50kg
Production Dimension 1028*545*78mm
Carton Dimension 1082*620*145mm
*The actual size and weight are subjected to the physical product.


Application Scenarios

Application Scenarios



Packing Information
Carton Size 1082*620*145mm
Carton packing weight 71.50kg


Project Cases

Project Cases


Company Information

As a company integrating processing, wholesale and transportation, Shenzhen LEMAX New Energy Co.,Ltd, short for LEMAX, is located in and our key product is To develop our company, LEMAX follows the philosophy of 'credit first, quality first, service first'. Moreover, we are united, cooperative, efficient and practical and we also advocate to make progress through innovation. LEMAX pays great attention to talents introduction and cultivation. We also maintain close partnerships with well-known universities in the country. We have an excellent and highly-educated talents team. All these contribute to our company's long-term development. With a focus on customers' potential needs, LEMAX has the ability to provide one-stop solutions.
You are always welcomed for inquiry.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
