The world's leading manufacturer of new energy battery and energy storage system.

Quality Ev Charger LEMAX Company 1
Quality Ev Charger LEMAX Company 1

Quality Ev Charger LEMAX Company


Company Advantages

· Such material provides very long service life for ev charger.

· This product is presented to customers after proper inspections.

· With a convenient sales network and high-quality service mechanism, Shenzhen LEMAX New Energy Co.,Ltd is unique in the market.

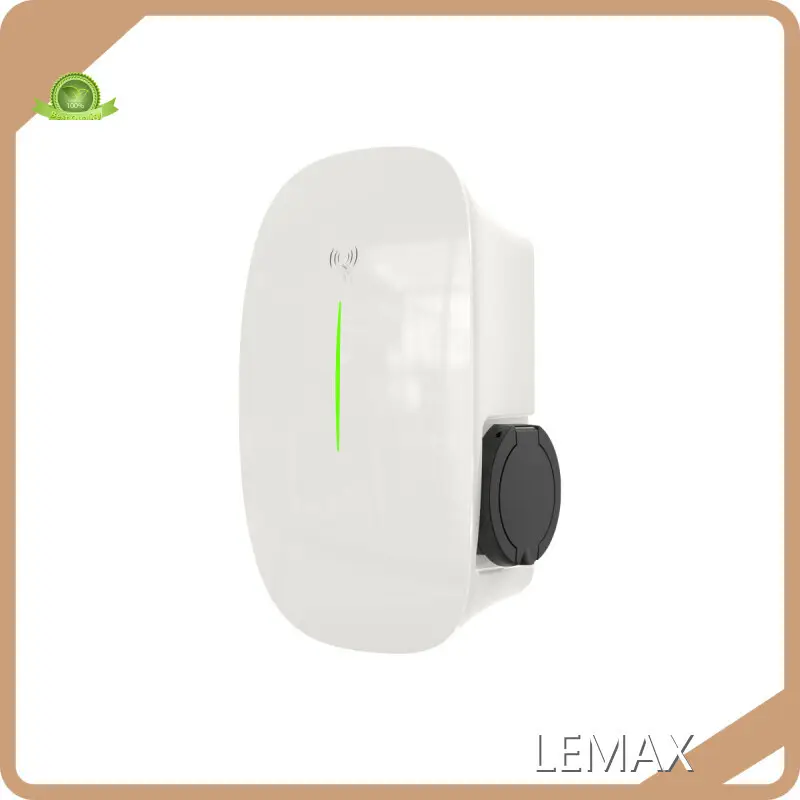

EV Charger
Model LM-AC011K-Pro-EU
Input Power Supply 3P+N+PE
Rated Voltage 400V AC
Rated Current 16A
Frequency 50/60Hz
Output Output Voltage 400V AC
Maximum Current 16A
Output Power 11kW
UserInterface Charge Connector Type 2 cable(Type 2 socket optional)
Cable Length 4m(7m optional)
Housing Material Plastic PC940
LED Indicator Green/Yellow/Red
RFID Reader Mifare ISO/IEC14443 A
Start Mode Plug&Play/RFID card/App
Communication WiFi WiFi(2.4GHz)
4G Optional
Bluetooth Yes
Ethernet Yes
ESIM Optional
Optional OCPP1.6 Json(OCPP2.0 upgraded)
Security and Safety RCD 30mA+6mA  DC  detection
Ingress Protection IP65
Impact Protection IK10
Electrical Protection Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection
Certification CE/CB/UKCA/EN303546
Certification Standard IEC 61851-1:2019 IEC 62955:2018 IEC 61851-21-2:2018 IEC 62196
Warranty 2 years
Environment Installation Wall-mount/Pole-mount(Optional)
Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000m
Package Product Dimension 344*201*100mm(H*W*D)  Cable 344*201*135mm(H*W*D)  Socket
Package Dimension 440*340*240mm(L*W*H)   Cable 400*250*210mm(L*W*H)  Socket
Net Weight 3.5kg
Gross Weight 4.1kg
External Package Carton



EV Charger Step


Company Features

· Shenzhen LEMAX New Energy Co.,Ltd, as a company specializing in the production of ev charger, enjoys a high reputation in the market.

· Our factory has a series of advanced production equipment, which can produce better ev charger. We have obtained many patents in the process of developing ev charger. In order to obtain better quality, we have attracted a large number of senior technical personnel in the ev charger industry.

· LEMAX ​​is fully committed to high quality products and good service. Inquire now!

Application of the Product

The ev charger managed by LEMAX is widely used in industry.

We have a professional team and can provide customers with the most appropriate solutions to help customers achieve their goals quickly and effectively.
