Product details of the high voltage battery cell
Quick Overview
The newly launched products by Shenzhen LEMAX New Energy Co.,Ltd were all completed by the internationally renowned design company. Customers can trust the quality and safety of this product. The high voltage battery cell produced by our company is widely used. Shenzhen LEMAX New Energy Co.,Ltd's excellent sales group is full of foreign sales experience.
Product Introduction
Our high voltage battery cell has the following advantages over peer products.

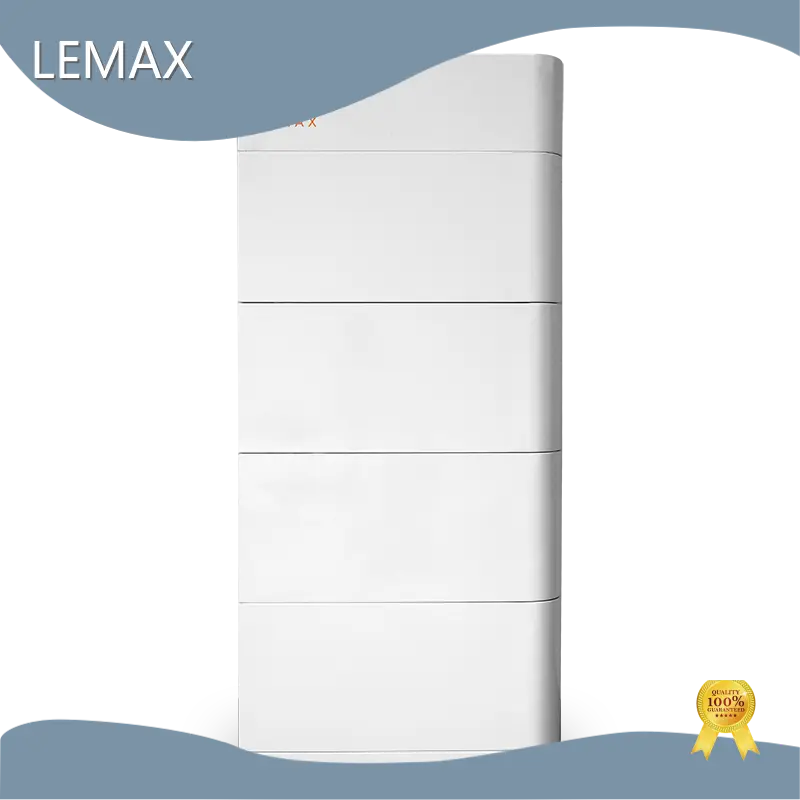

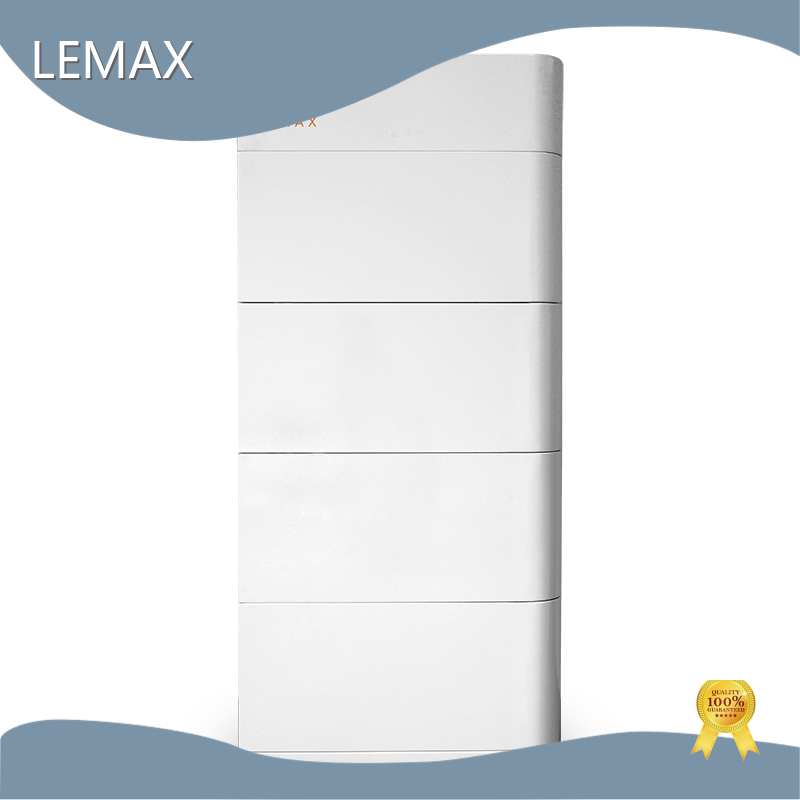

![Hight Voltage Battery]()
Parameters
| Model | LM-THV-10kWh | LM-THV-15kWh | LM-THV-20kWh | LM-THV-25kWh |
| Battery Module | 5.12kWh 102.40V 46kg |
| Number of Modules | 2 | 3 | 4 | 5 |
| Nominal Voltage | 204.8V | 307.2V | 409.6V | 512V |
| Capacity | 50Ah | 50Ah | 50Ah | 50Ah |
| Total Energy | 10.24kWh | 15.36kWh | 20.48kWh | 25.60kWh |
| Resistance | ≤80mΩ | ≤100mΩ | ≤120mΩ | ≤150mΩ |
| Charge Voltage | 224V | 336V | 448V | 560V |
| Discharge Cut Off Voltage | 160V | 240V | 320V | 400V |
| Max. Working Current | 50A | | | |
| Single Module Weight (kg) | 46 | | | |
| Single Module Dimension (mm) | 630*185*345 | | | |
| Main Control Box Weight (kg) | 25 | | | |
| Main Control Box Dimension (mm) | 630*185*200 | | | |
| System Dimension Weight (kg) | 135 | 185 | 230 | 280 |
| System Dimension (mm) | 630*185*955 | 630*185*1300 | 630*185*1650 | 630*185*2000 |
| General |
| Charge Temperature Range | 0℃~55℃ (Working below 0℃ will affect battery performance) |
| Discharge Temperature Range | -20℃~55℃ (Working below 0℃ will affect battery performance) |
| Cycle Time | ≥8000 Cycles @ 80%DOD, 25℃, 0.5C |
| Storage Condition | -20℃~55℃ @60%±25% Humidity |
| Installation | Floor installation |
| IP protection | IP65 |
| Design Life | Over 15 years |
| Communication | RS232, RS485, CAN |
| *The actual size and weight are subjected to the physical product. |
Application Scenarios
![High Voltage Battery]()
![brand inverter]()
Project Cases
![Project Cases]()
Company Advantages
Being a dependable manufacturer of high voltage battery cell, Shenzhen LEMAX New Energy Co.,Ltd boasts years of experience in designing and manufacturing. Over the years of development, we have made our brand renowned in the global high voltage battery cell market. This ensures that our products can be more accessible to the target markets. Shenzhen LEMAX New Energy Co.,Ltd will strictly sticks to the principle of quality first. Ask online!
We have ample inventory and discounts for large purchases. Welcome to contact us!
