Product details of the motive power battery
Product Introduction
The design of LEMAX motive power battery is the combination of functionality and aesthetics. A good quality control system and management system ensure the quality of the product. Shenzhen LEMAX New Energy Co.,Ltd is a company with mature sales network who makes the shopping experience more convenient.

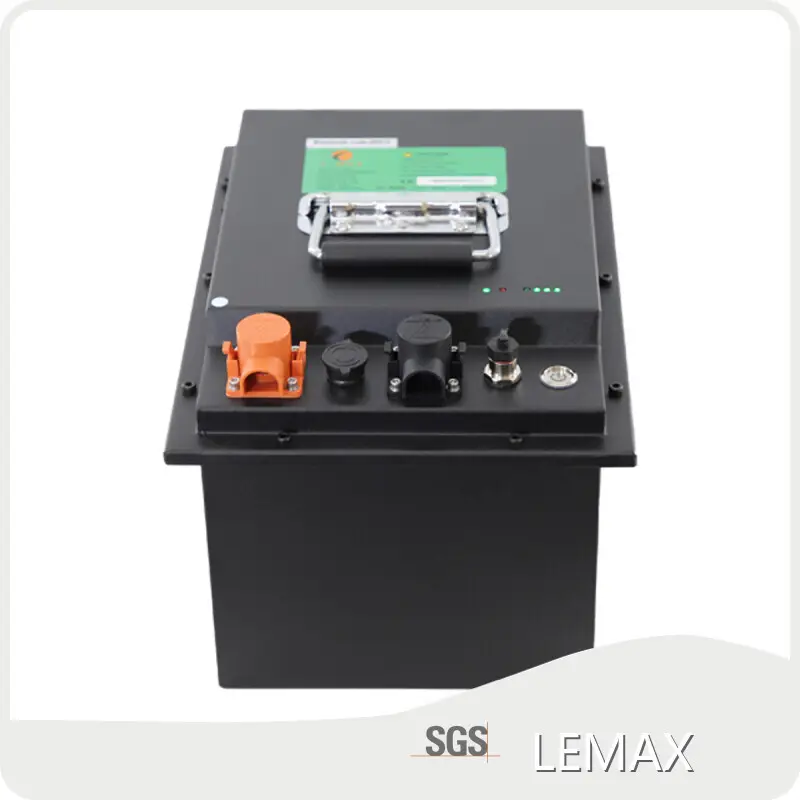

![Motive Power Battery by LEMAX 2]()
Parameters
| Model |
LM-VP2460 |
LM-VP2490 |
LM-VP24120 |
LM-VP24150 |
LM-VP24230 |
LM-VP3690 |
LM-VP36120 |
LM-VP36150 |
| Specification |
Nominal Voltage |
25.6V |
25.6V |
25.6V |
25.6V |
25.6V |
38.4V |
38.4V |
38.4V |
| Capacity |
60Ah |
90Ah |
120Ah |
150Ah |
230Ah |
90Ah |
120Ah |
150Ah |
| Energy |
1.54kWh |
2.3kWh |
3.1kWh |
3.84kWh |
5.89kWh |
3.46kWh |
4.61kWh |
5.76kWh |
| Series / Parallel |
8S2P |
8S3P |
8S4P |
8S1P |
8S1P |
12S3P |
12S4P |
12S1P |
| Cycle Time |
＞4,500 |
＞4,500 |
＞4,500 |
＞4,500 |
＞4,500 |
＞4,500 |
＞4,500 |
＞4,500 |
| Dimension |
300*225*210 |
300*225*210 |
310*300*210 |
395*300*210 |
560*360*210 |
440*300*210 |
515*380*210 |
515*380*210 |
| Net Weight |
15.5kg |
15.5kg |
24kg |
28kg |
48kg |
31kg |
48kg |
55kg |
| Current |
Charge |
50A |
50A |
50A |
50A |
50A |
50A |
50A |
50A |
| Discharge |
100A |
100A |
100A |
100A |
100A |
100A |
100A |
100A |
| Max. Discharge |
500A
(10s) |
500A
(10s) |
500A
(10s) |
500A
(10s) |
500A
(10s) |
500A
(10s) |
500A
(10s) |
500A
(10s) |
| Stangard Charge |
0.5-1h |
1.5-2.5h |
1-1.3h |
1.5-3h |
1-1.3h |
1.5-3h |
1-2.5h |
1.5-3h |
| Storage Temperature |
Charge |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
32°F~140°F
(0℃~60℃) |
| Discharge |
4°F~140°F
(-20℃~60℃) |
4°F~140°F
(-20℃~60℃) |
4°F~140°F
(-20℃~60℃) |
4°F~140°F
(-20℃~60℃) |
4°F~140°F
(-20℃~60℃) |
4°F~140°F
(-20℃~60℃) |
4°F~140°F
(-20℃~60℃) |
4°F~140°F
(-20℃~60℃) |
| Other Spec. |
IP Degree |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
| Optional |
Bluetooth |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Heating |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| External Controller |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Application Scenarios
![Application-Scenarios]()
Company Feature
• Our company's geographical position is excellent. Therefore, we are provided with good natural conditions, developed communication and convenient transportation.
• To enhance the trust and satisfaction for our company, we are committed to providing our customers with the highest quality, most advanced and professional services.
• LEMAX's products meet national and international safety requirements. They are not only sold domestically but also exported to overseas markets including br /> LEMAX can provide processing and customization service. The quotation is only for reference, and please consult us for details.
