Product details of the high voltage battery pack
Quick Overview
The design of LEMAX high voltage battery pack is user-friendly and practical. The product has many excellent features such as optimum performance, longer service life, and so on. The high voltage battery pack produced by LEMAX has a wide range of applications. As the pioneer in high voltage battery pack industry, we are striving hard to provide the superlative products.
Product Description
Choose our high voltage battery pack for the following reasons.

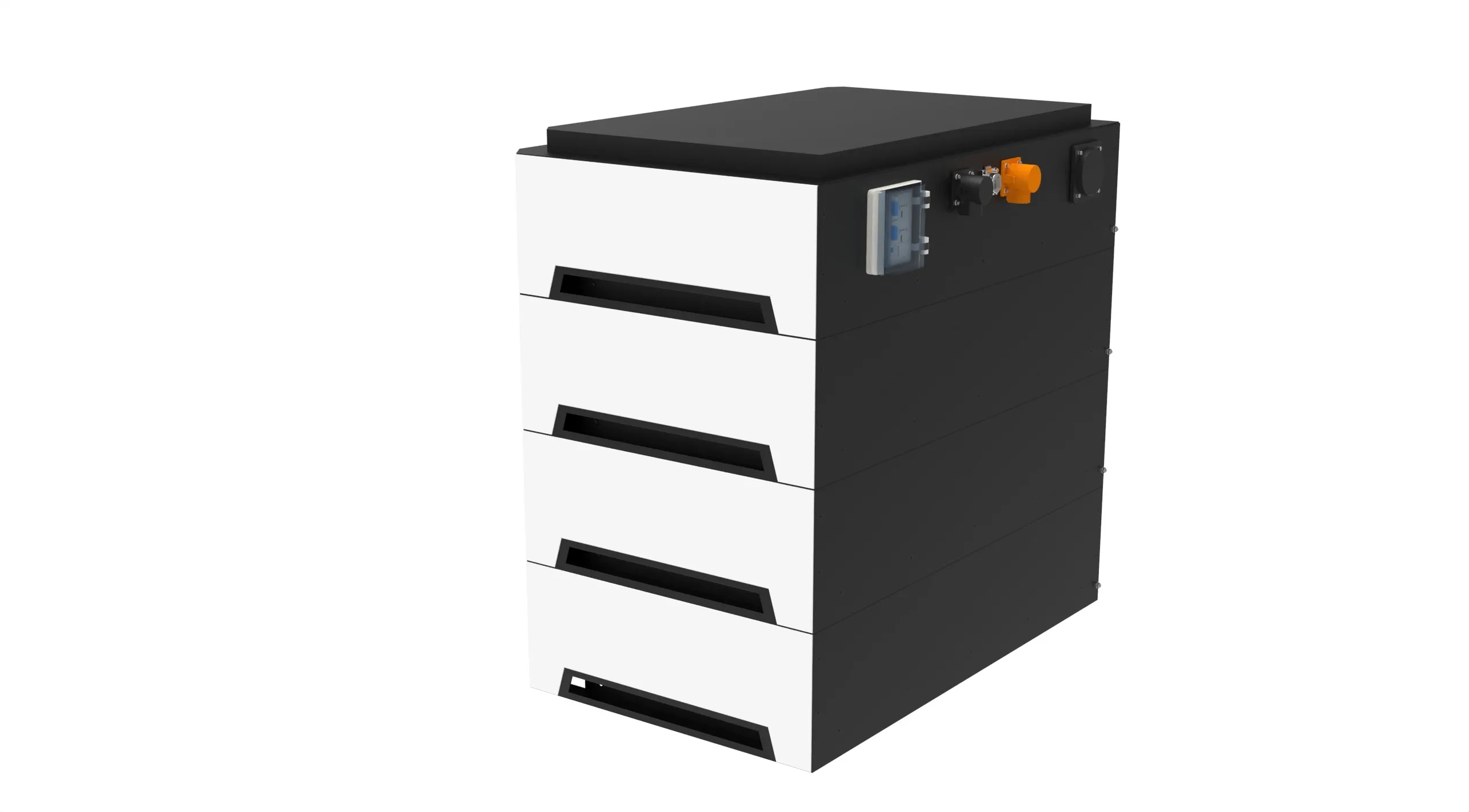

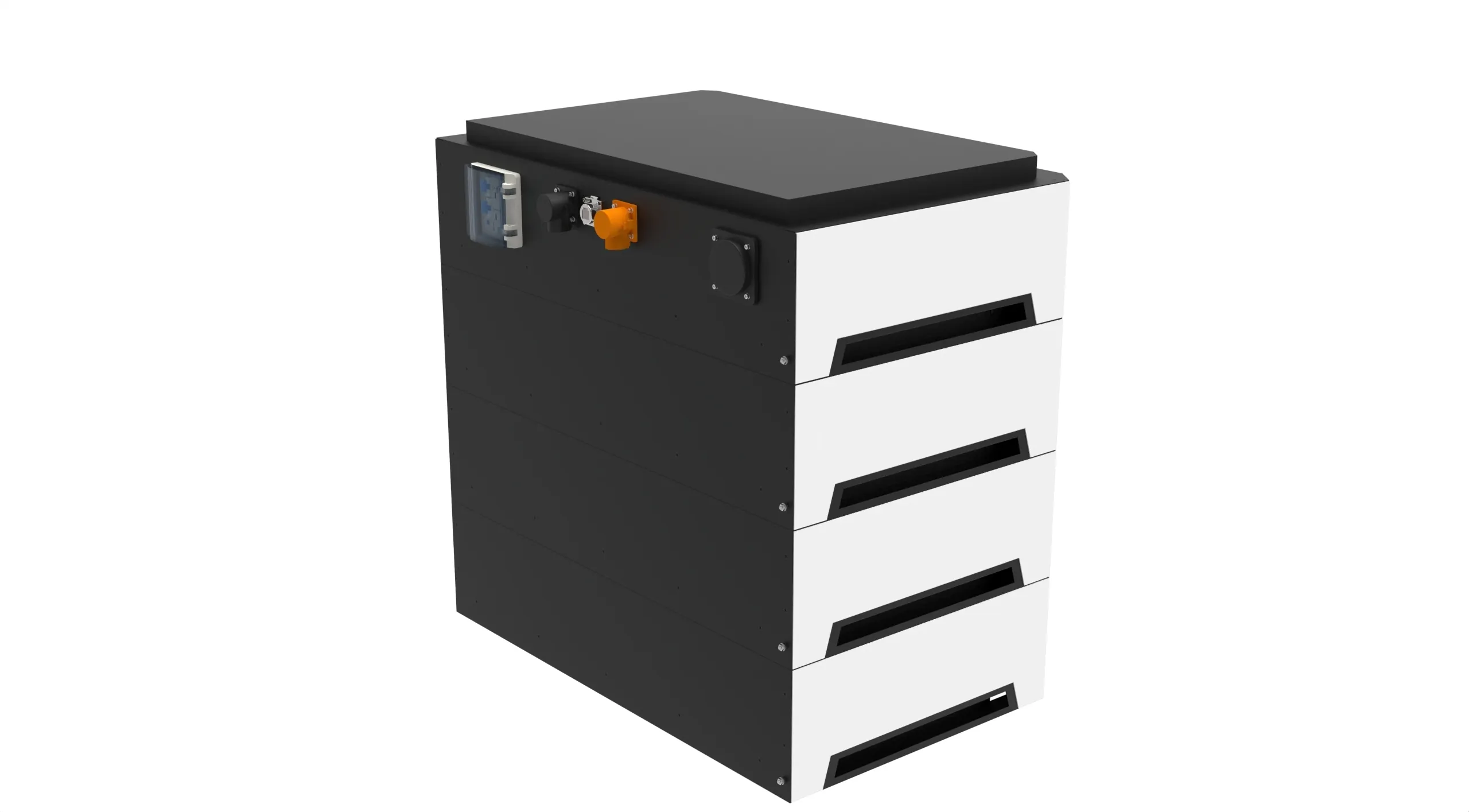

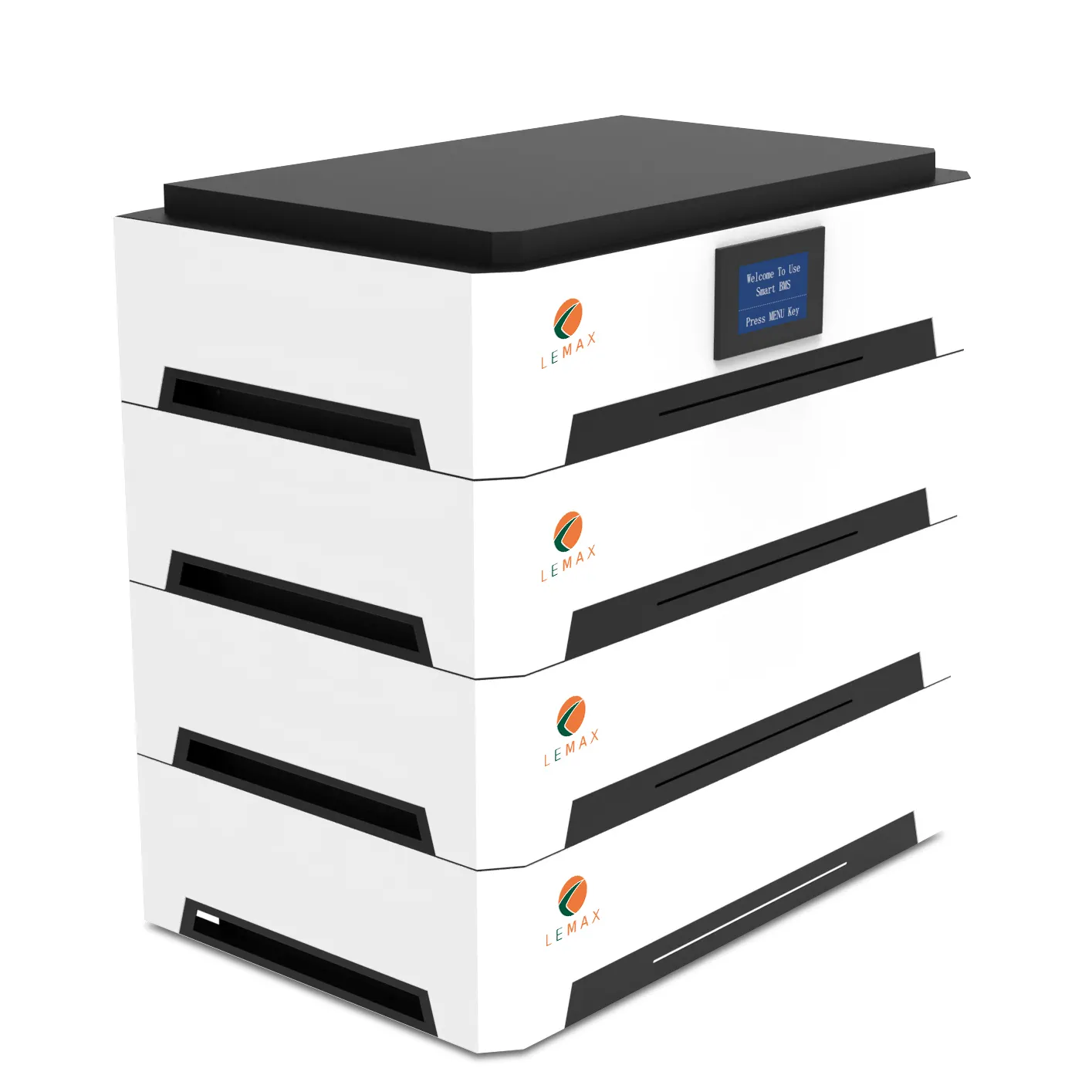

![High Voltage Battery]()
Parameters
| Battery Type |
LiFePO4 |
| Capacity |
100Ah |
| Rated Voltage |
192V |
| Total Energy |
19.2kWh |
| Working Voltage Range |
150~219V |
| Max. Charge Current |
100A |
| Max. Discharge Current |
100A |
| Standard Charge Current |
50A |
| Standard Discharge Current |
50A |
| Max. Parallel Quantity |
10 |
| Designed Life-span |
8000 cycles
(Test conditions: 100%DOD, 0.2C charge & discharge at +25 ℃) |
| Operating Temperature |
Charge: 0℃~60℃
Discharge: -10℃~60℃ |
| Operation Humidity |
5~95% |
| Nominal Operation Altitude |
≤3000m |
| IP Protection |
IP43 |
| Installation Method |
Stacking installation |
| Communication |
RS485,CAN |
| Certification |
MSDS, UN38.3, CE |
| Net Weight |
200.00kg |
| Production Dimension |
710*450*695mm |
| Carton Dimension |
780*520*770mm |
Application Scenarios
![LEMAX High Voltage Battery Pack for Sale 7]()
![Brand Inverter]()
Project Cases
![Project Cases]()
Company Introduction
Situated in Shenzhen LEMAX New Energy Co.,Ltd is a company. We focus on the production and sales of LEMAX innovates business setup and sincerely provides one-stop professional services for consumers. We look forward to working with you to move towards a more brilliant era.
