Company Advantages
· Fashionable patterns of ev home charger are available for customer's random selection.
· The product has obtained numerous certifications from international standards testing. It is tested to be of high performance and can be used for a long time.
· Shenzhen LEMAX New Energy Co.,Ltd has precise market positioning and unique concept for ev home charger.

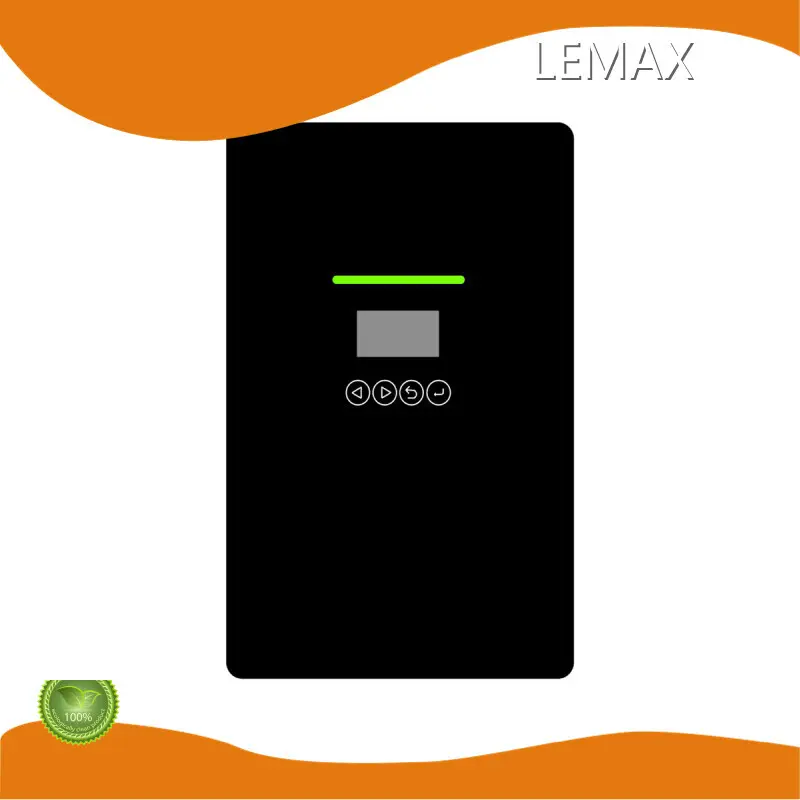

![EV Charger]()
Parameters
|
Model |
LM-AC022K-BC-EU |
| Input |
Power Supply |
3P+N+PE |
| Rated Voltage |
400V AC |
| Rated Current |
32A |
| Frequency |
50/60Hz |
| Output |
Output Voltage |
400V AC |
| Maximum Current |
32A |
| Rated Power |
22kW |
| UserInterface |
Charge Connector |
Type 2 socket |
| Enclosure |
Galvanized steel |
| Front Panel |
Temper glass |
| LED Indicator |
Green/Yellow/Red |
| LCD Display |
2.7″black & white LCD |
| RFID Reader |
Mifare ISO/IEC 14443 A |
| Start Mode |
Plug&Play/RFID card/App |
| Emergency Stop |
No |
| Communication |
WiFi |
Yes |
| Ethernet |
Optional |
| 3G/4G |
Optional |
| OCPP |
OCPP1.6 Json(OCPP 2.0 upgradable) |
| Safety |
Energy Meter |
MID certified |
| RCD |
30mA Type A+6mADC |
| Ingress Protection |
IP54 |
| Impact Protection |
IK07 |
| Electrical Protection |
Over current protection, Residual current protection, Short circuit protection,
Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection |
| Certification |
CE/CB |
| Certification Standard |
ENIEC61851-1:2019, IEC61851-1:2017, IEC61851-21-2:2018 |
| Warranty |
2 years |
| Environment |
Installation |
Wall-mount/Pole-mount(Optional) |
| Work Temperature |
-30℃~+50℃ |
| Work Humidity |
5%~95% |
| Work Altitude |
<2000m |
| Package |
Product Dimension |
452*295*148mm(H*W*D) |
| Package Dimension |
570*390*220mm(L*W*H) |
| Net Weight |
10.0kg |
| Gross Weight |
12.5kg |
| ExternalPackage |
Carton |
Step
![EV Charger Step]()
Company Features
· After setting foot in this industry for years, Shenzhen LEMAX New Energy Co.,Ltd has become one of the prominent market players in R&D and production of ev home charger.
· Our company has achieved fruitful technical outcomes by cause of its strong technical base. To enhance the quality of ev home charger, our company has established an excellent expert R&D base.
· We aim to sustain a responsible supply chain that has a minimal environmental impact and corporate with a manufacturing supplier base that supports and adheres to our expected corporate and social standards.
Application of the Product
Multiple in function and wide in application, ev home charger can be used in many industries and fields.
LEMAX always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
Product Comparison
The ev home charger of LEMAX has been improved greatly in the following aspects.
Enterprise Advantages
LEMAX has a professional R&D team and a high-quality production team, who are the solid foundation of corporate development. The team members are experienced and innovative, for they are engaged in production for many years.
Providing satisfactory customer experience is our service standard. Based on this, we are trying to provide customers with all kinds of great services within our reach.
Adhering to the spirit of 'being people-oriented, seeking mutual benefit', our company is willing to work with like-minded friends around the world to realize the ideal and return to the society.
Since the establishment, LEMAX has been engaged in industry-related work. Until now, we have accumulated rich industry experience.
Based on the local market, our company has now established a nationwide marketing network. And we strive to enter the international stage depending on self advantages.
