Product details of the ev charger
Product Information
With the novel design for ev charger, Shenzhen LEMAX New Energy Co.,Ltd gains high reputation globally. Improved production technology is adopted to achieve its consistent quality. A positive market response indicates that the product has a good market prospect.

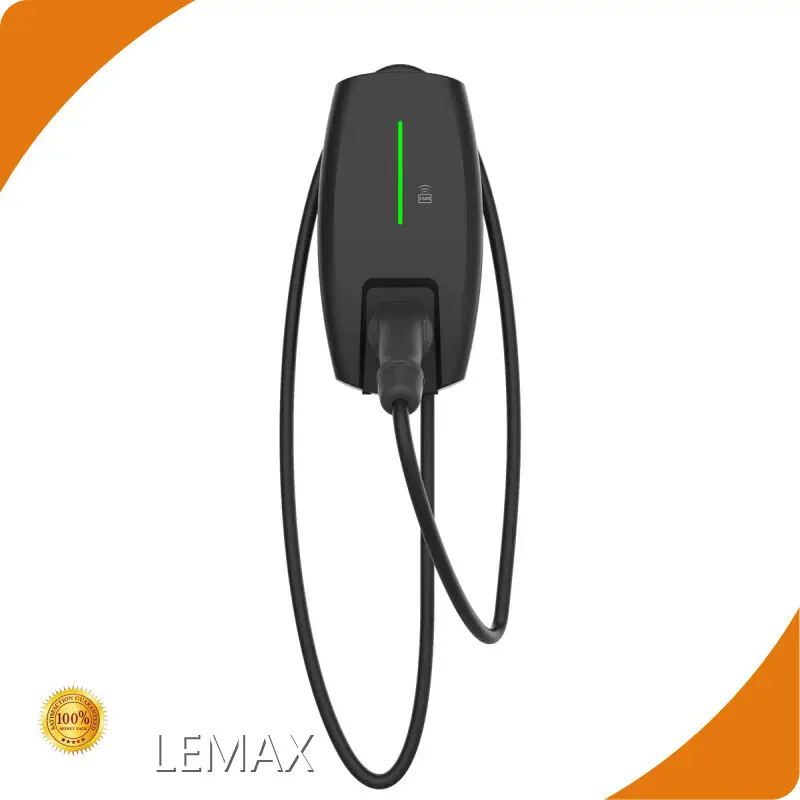

![EV Charger]()
Parameters
|
Model |
LM-AC7000-EU |
| Input |
Power Supply |
1P+N+PE |
| Rated Voltage |
230V AC |
| Rated Current |
32A |
| Frequency |
50/60Hz |
| Output |
Output Voltage |
230V AC |
| Maximum Current |
32A |
| Rated Power |
7kW |
| UserInterface |
Charge Connector |
Type 2 cable |
| Cable Length |
4m |
| Enclosure |
Plastic PC940 |
| LED Indicator |
Green/Yellow/Red |
| RFID Reader |
Mifare ISO/IEC 14443 A |
| Start Mode |
Plug&Play/RFID card/App |
| Emergency Stop |
No |
| Communication |
WiFi |
Yes |
| Bluetooth |
No |
| OCPP |
OCPP1.6 Json (OCPP2.0 upgradable) |
| Safety |
Energy Meter |
No |
| RCD |
6mA DC |
| Ingress Protection |
IP65 |
| Impact Protection |
IK10 |
| Electrical Protection |
Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection |
| Certification |
CE/CB/UKCA/EN303546 |
| Certification Standard |
EN IEC 61851-1:2019, IEC61851-1:2017. IEC61851-21-2:2018 |
| Warranty |
2 years |
| Environment |
Installation |
Wall-mount/Pole-mount(Optional) |
| Work Temperature |
-30℃~+50℃ |
| Work Humidity |
5%~95% |
| Work Altitude |
<2000m |
| Package |
Product Dimension |
325*181*87 mm(H*W*D) |
| Package Dimension |
430*290*200 mm(L*W*H) |
| Net Weight |
3.2kg |
| Gross Weight |
4.0kg |
| External Package |
Carton |
Step
![EV Charger Step]()
