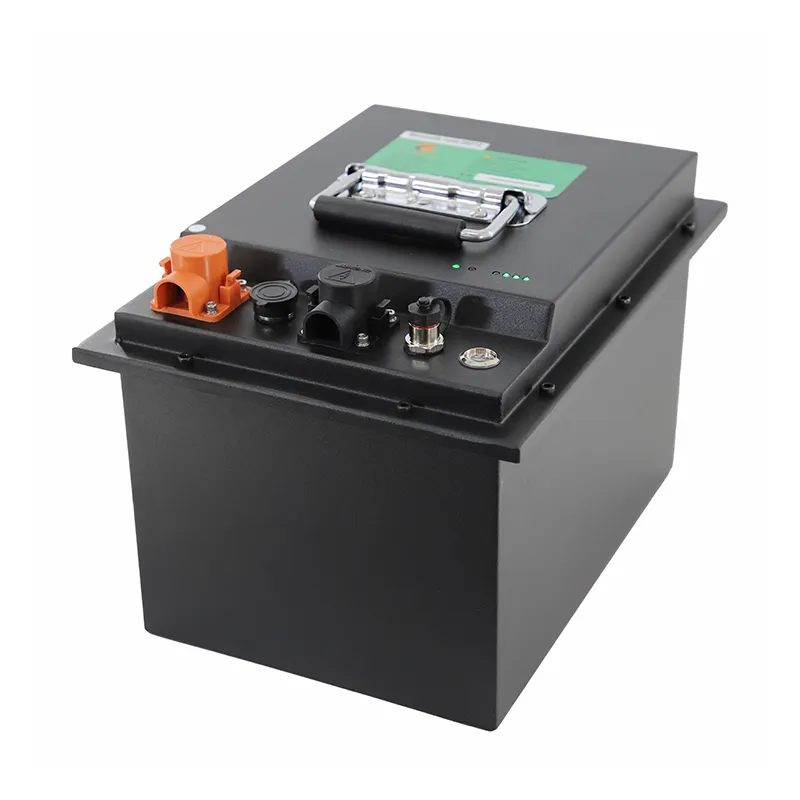

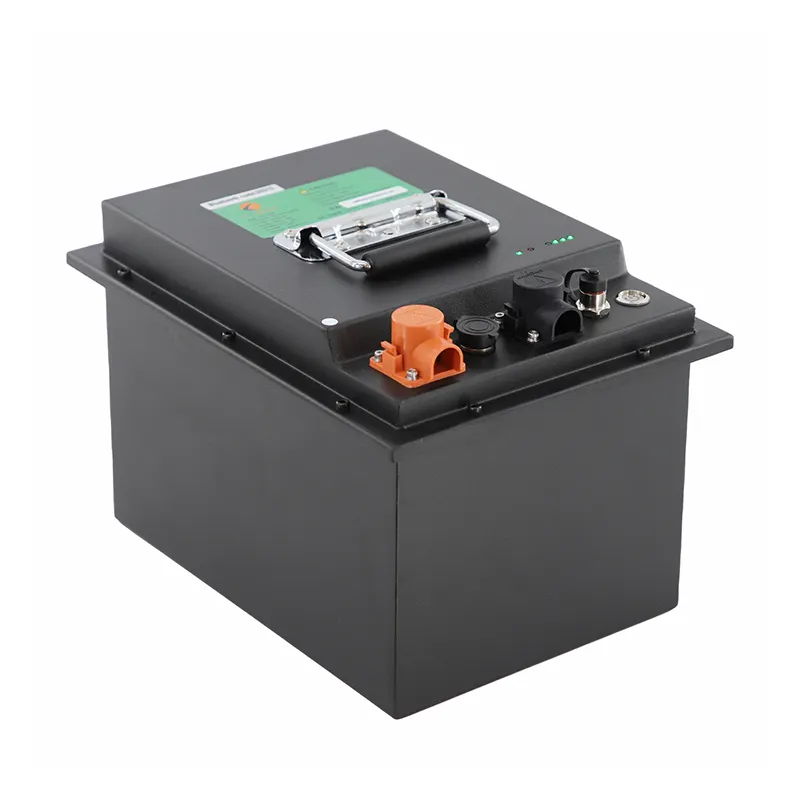

Floor Scrubber Battery LEMAX,
Product details of the floor scrubber battery
Product Introduction
The production of LEMAX floor scrubber battery complies with the requirements of ISO quality certification. This product is guaranteed to be stable and reliable. Combined with our own factory, Shenzhen LEMAX New Energy Co.,Ltd can quickly provide customers with a worldwide service.
Product parameters
| Model | LM-VP2460 | LM-VP2490 | LM-VP24120 | LM-VP24150 | LM-VP24230 | LM-VP3690 | LM-VP36120 | LM-VP36150 | |
| Specification | Nominal Voltage | 25.6V | 25.6V | 25.6V | 25.6V | 25.6V | 38.4V | 38.4V | 38.4V |
| Capacity | 60Ah | 90Ah | 120Ah | 150Ah | 230Ah | 90Ah | 120Ah | 150Ah | |
| Energy | 1.54kWh | 2.3kWh | 3.1kWh | 3.84kWh | 5.89kWh | 3.46kWh | 4.61kWh | 5.76kWh | |
| Series / Parallel | 8S2P | 8S3P | 8S4P | 8S1P | 8S1P | 12S3P | 12S4P | 12S1P | |
| Cycle Time | ＞4,500 | ＞4,500 | ＞4,500 | ＞4,500 | ＞4,500 | ＞4,500 | ＞4,500 | ＞4,500 | |
| Dimension | 300*225*210 | 300*225*210 | 310*300*210 | 395*300*210 | 560*360*210 | 440*300*210 | 515*380*210 | 515*380*210 | |
| Net Weight | 15.5kg | 15.5kg | 24kg | 28kg | 48kg | 31kg | 48kg | 55kg | |
| Current | Charge | 50A | 50A | 50A | 50A | 50A | 50A | 50A | 50A |
| Discharge | 100A | 100A | 100A | 100A | 100A | 100A | 100A | 100A | |
| Max. Discharge | 500A (10s) | 500A (10s) | 500A (10s) | 500A (10s) | 500A (10s) | 500A (10s) | 500A (10s) | 500A (10s) | |
| Charge Hour (50A) | 0.5-1h | 1.5-2.5h | 1-1.3h | 1.5-3h | 1-1.3h | 1.5-3h | 1-2.5h | 1.5-3h | |
| Storage Temperature | Charge |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
| Discharge |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
|
| Other Spec. | IP Degree | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Optional | Bluetooth | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Heating | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| External Controller | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
Application scenarios
certificate
Company Feature
• LEMAX's location has a pleasant climate, abundant resources, and unique geographical advantages. Meanwhile, the traffic convenience is conducive to the circulation and transportation of products.
• We are committed to providing versatile and diversified services for Chinese and foreign enterprises, new and regular customers. And we are always ready to meet their different needs, so as to gain their trust and satisfaction.
• LEMAX's core team members have rich production experience and master the core industry technology.
Dear customer, thanks for your attention! If you are interested in our please contact us directly. LEMAX is looking forward to cooperating with you.
LEMAX is a technology-based manufacturer integrating research and development, production, sales and service of lithium battery products.
