Product details of the ev home charger
Product Overview
Shenzhen LEMAX New Energy Co.,Ltd is highly responsible to our customers and use superior raw material all the time. The quality of ev home charger is fine. ev home charger of LEMAX can be widely used in various fields. The various specifications of the product meet the needs of the customers in the industry.
Product Information
Want to know more about product information? We will provide you with detailed pictures and detailed content of ev home charger in the following section for your reference.

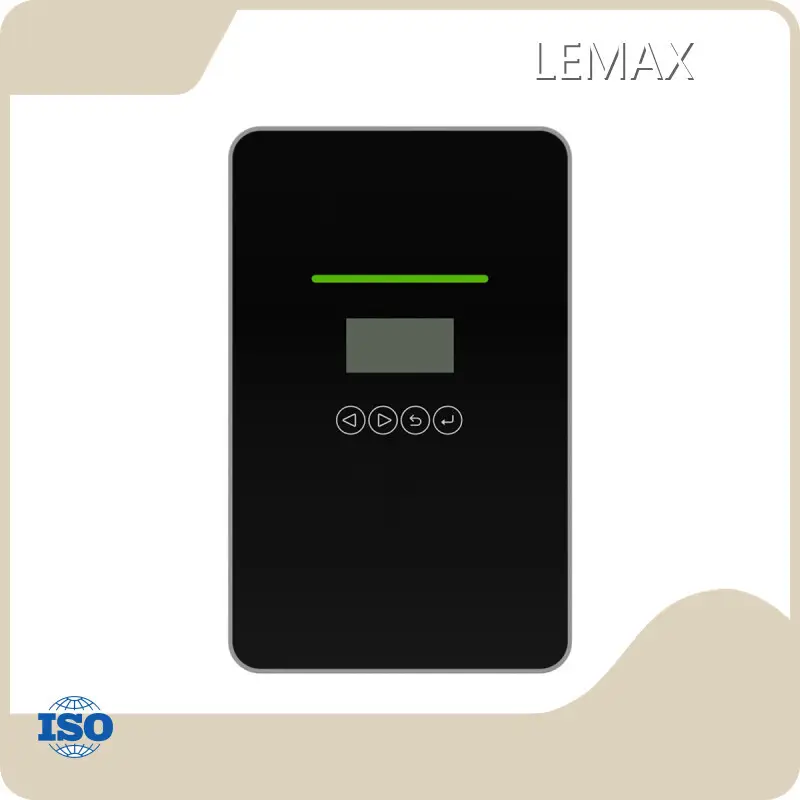

![EV Charger]()
Parameters
|
Model |
LM-AC7000-BC-EU |
| Input |
Power Supply |
1P+N+PE |
| Rated Voltage |
230V AC |
| Rated Current |
32A |
| Frequency |
50/60Hz |
| Output |
Output Voltage |
230V AC |
| Maximum Current |
32A |
| Rated Power |
7kW |
| UserInterface |
Charge Connector |
Type 2 socket |
| Enclosure |
Plastic PC940 |
| Front Panel |
Temper glass |
| LED Indicator |
Green/Yellow/Red |
| LCD Display |
2.7″black & white LCD |
| RFID Reader |
Mifare ISO/IEC 14443 A |
| Start Mode |
Plug&Play/RFID card/App |
| Emergency Stop |
No |
| Communication |
WiFi |
Yes |
| Ethernet |
Optional |
| 3G/4G |
Optional |
| OCPP |
OCPP1.6 Json(OCPP 2.0 upgradable) |
| Safety |
Energy Meter |
MID certified |
| RCD |
30mA Type A+6mADC |
| Ingress Protection |
IP54 |
| Impact Protection |
IK07 |
| Electrical Protection |
Over current protection, Residual current protection, Short circuit protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection |
| Certification |
CE/CB |
| Certification Standard |
ENIEC61851-1:2019, IEC61851-1:2017, IEC61851-21-2:2018 |
| Warranty |
2 years |
| Environment |
Installation |
Wall-mount/Pole-mount(Optional) |
| Work Temperature |
-30℃~+50℃ |
| Work Humidity |
5%~95% |
| Work Altitude |
<2000m |
| Package |
Product Dimension |
356*221*136mm(H*W*D) |
| Package Dimension |
490*340*210mm(L*W*H) |
| Net Weight |
3.2kg |
| Gross Weight |
4.2kg |
| ExternalPackage |
Carton |
Step
![EV Charger Step]()
Company Introduction
Being a professional company in industry, Shenzhen LEMAX New Energy Co.,Ltd is mainly responsible for providing customers with Our employees adhere to the service standards of 'honest and credit, service first, customer supreme'. Based on this, we are dedicated to serving our customers and satisfying their needs. We are able to provide you with massive industrial information. If you want to know more about it, feel free to contact us.
