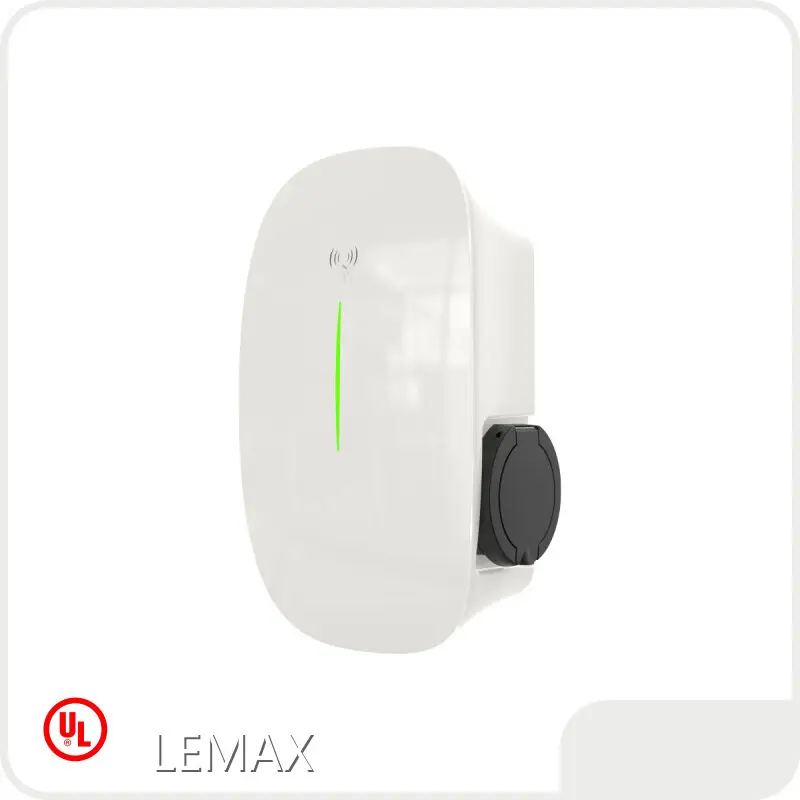

Ev Home Charger LEMAX Company 1
Ev Home Charger LEMAX Company 1

Ev Home Charger LEMAX Company


Company Advantages

· Shenzhen LEMAX New Energy Co.,Ltd only uses environmentally friendly raw materials for ev home charger.

· The product has advantages of long service life and excellent performance.

· This product is bound to help both make money and increase brand reputation.

EV Charger
Model LM-AC011K-Pro-EU
Input Power Supply 3P+N+PE
Rated Voltage 400V AC
Rated Current 16A
Frequency 50/60Hz
Output Output Voltage 400V AC
Maximum Current 16A
Output Power 11kW
UserInterface Charge Connector Type 2 cable(Type 2 socket optional)
Cable Length 4m(7m optional)
Housing Material Plastic PC940
LED Indicator Green/Yellow/Red
RFID Reader Mifare ISO/IEC14443 A
Start Mode Plug&Play/RFID card/App
Communication WiFi WiFi(2.4GHz)
4G Optional
Bluetooth Yes
Ethernet Yes
ESIM Optional
Optional OCPP1.6 Json(OCPP2.0 upgraded)
Security and Safety RCD 30mA+6mA  DC  detection
Ingress Protection IP65
Impact Protection IK10
Electrical Protection Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection
Certification CE/CB/UKCA/EN303546
Certification Standard IEC 61851-1:2019 IEC 62955:2018 IEC 61851-21-2:2018 IEC 62196
Warranty 2 years
Environment Installation Wall-mount/Pole-mount(Optional)
Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000m
Package Product Dimension 344*201*100mm(H*W*D)  Cable 344*201*135mm(H*W*D)  Socket
Package Dimension 440*340*240mm(L*W*H)   Cable 400*250*210mm(L*W*H)  Socket
Net Weight 3.5kg
Gross Weight 4.1kg
External Package Carton



EV Charger Step


Company Features

· Shenzhen LEMAX New Energy Co.,Ltd puts great energy on R&D and production of ev home charger.

· Our ev home charger production technology is a leader in the world and has a bright future.

· Shenzhen LEMAX New Energy Co.,Ltd will do our utmost to meet our customers' satisfaction. Please contact us!

Enterprise Advantages

Our company brings a group of technical backbones together, providing strong technical support for the production of quality products.

LEMAX makes effort to provide excellent services to meet the needs of customers.

Our company strictly complies with national production standards and safety of products. During business operation, we adhere to the management concept of 'innovation, efficiency and pragmatism', and insist on the scientific management. All efforts are made for building a first-class brand in the industry and achieving healthy and sustainable development.

Since the establishment in we have developed for years and have gradually become a leader in the industry.

LEMAX continuously develops ourselves in the fierce competition based on the advantages of technology and talents. This enables us to expand the sales network, from the domestic market to neighboring countries and regions.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
