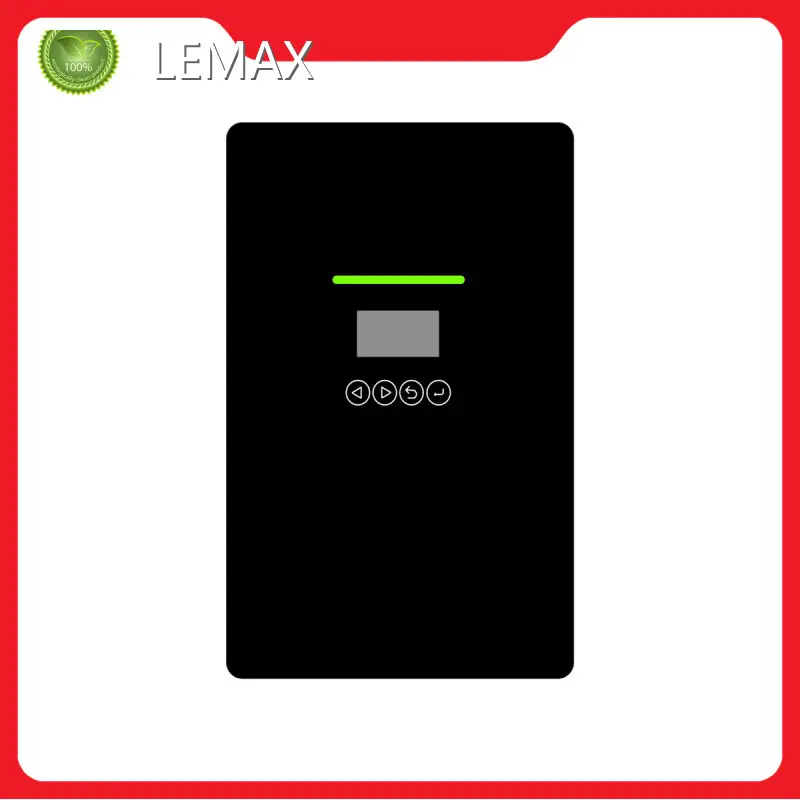

Ev Home Charger LEMAX-1 1
Ev Home Charger LEMAX-1 2
Ev Home Charger LEMAX-1 1
Ev Home Charger LEMAX-1 2

Ev Home Charger LEMAX-1

Inquiry

Product details of the ev home charger


Product Introduction

The production of LEMAX ev home charger highly adopts international production technology. The exact identification of defects by using the sophisticated testing equipment guarantees the premium quality of the product. Breakthrough progress has been made in LEMAX with its high quality ev home charger.

EV Charger
Parameters
Model LM-AC022K-BC-EU
Input Power Supply 3P+N+PE
Rated Voltage 400V AC
Rated Current 32A
Frequency 50/60Hz
Output Output Voltage 400V AC
Maximum Current 32A
Rated Power 22kW
UserInterface Charge Connector Type 2 socket
Enclosure Galvanized steel
Front Panel Temper glass
LED Indicator Green/Yellow/Red
LCD Display 2.7″black & white LCD
RFID Reader Mifare ISO/IEC 14443 A
Start Mode Plug&Play/RFID card/App
Emergency Stop No
Communication WiFi Yes
Ethernet Optional
3G/4G Optional
OCPP OCPP1.6 Json(OCPP 2.0 upgradable)
Safety Energy Meter MID certified
RCD 30mA   Type  A+6mADC
Ingress Protection IP54
Impact Protection IK07
Electrical Protection Over current protection, Residual current protection, Short circuit protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection
Certification CE/CB
Certification Standard ENIEC61851-1:2019, IEC61851-1:2017, IEC61851-21-2:2018
Warranty 2 years
Environment Installation Wall-mount/Pole-mount(Optional)
Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000m
Package Product Dimension 452*295*148mm(H*W*D)
Package Dimension 570*390*220mm(L*W*H)
Net Weight 10.0kg
Gross Weight 12.5kg
ExternalPackage Carton
