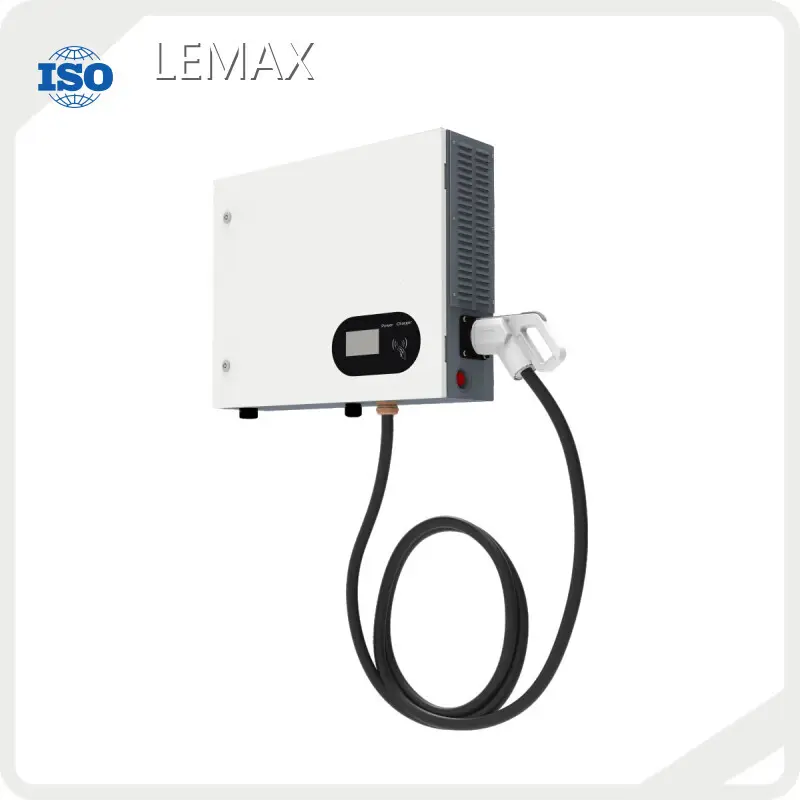

Product details of the ev home charger

Quick Detail

The LEMAX ev home charger is produced using quality raw materials and smart technology. This product achieves both rich functionality and superior quality. Impeccable design, exquisite craftsmanship, and world-class collaborations are the foundations on which Shenzhen LEMAX New Energy Co.,Ltd has been built.

Product Description

After improvement, the ev home charger produced by LEMAX is more brilliant in the following aspects.

Model LM-DC030K-EU
Input Power Supply 3P+N+PE
Rated Voltage 400V AC
Rated Current 45A
Frequency 50/60Hz
Output Output Voltage 150V~1000V DC
Maximum Current 75A
Rated Power 30kW
User Interface Charge Connector CCS2
Cable Length 5m
Enclosure Galvanized steel
LED Indicator Green/Red/Yellow
I CD Display 4.3’color touch screen
RFID Reader Mifare ISO/IEC14443 A
Start Mode RFID card/App/Plug&Play
Communication WiFi Yes
Ethernet Yes
4G Optional
Bluetooth No
OCPP OCPP1.6 Json (OCPP 2.0 upgradable)
Safety RCD Type  A
Meter Yes
Emergency Stop Yes
Ingress Protection IP54
Impact Protection IK08
Electrical Protection Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection
Certification CE/CB
Certification Standard ENIEC 61851-1:2019, IEC61851-1:2017, EN61851-23:2014, EN61851-24:2014
Warranty 2 years
Environment Installation Wall-mount/Pole-mount(Optional)
Cooling Method Fan cooling
Noise ≤60dB
Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000m
Package Product Dimension 707*560*217mm(W*D*H)
Package Dimension 847*762*420mm(W*D*H)
Net Weight 35.3kg
Gross Weight 40kg
External Package Carton
