Product details of the best ev charger
Product Information
The good-looking appearance of best ev charger has caught the eyes of more customers. This product meets the stringent quality standards of the global market. Shenzhen LEMAX New Energy Co.,Ltd chooses heavy and solid cartons to pack best ev charger.

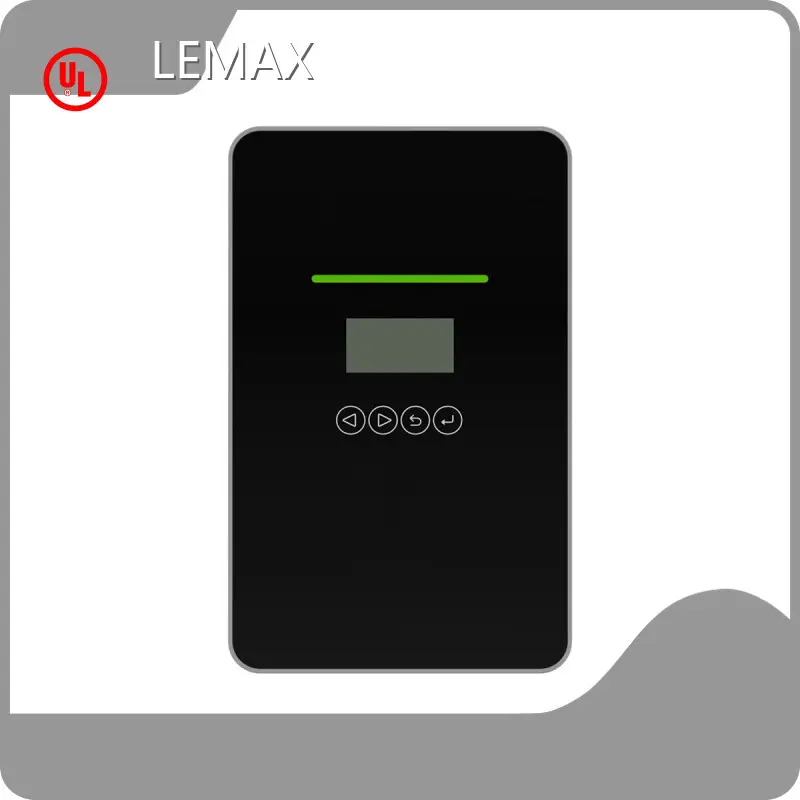

![EV Charger]()
Parameters
|
Model |
LM-AC7000-BC-EU |
| Input |
Power Supply |
1P+N+PE |
| Rated Voltage |
230V AC |
| Rated Current |
32A |
| Frequency |
50/60Hz |
| Output |
Output Voltage |
230V AC |
| Maximum Current |
32A |
| Rated Power |
7kW |
| UserInterface |
Charge Connector |
Type 2 socket |
| Enclosure |
Plastic PC940 |
| Front Panel |
Temper glass |
| LED Indicator |
Green/Yellow/Red |
| LCD Display |
2.7″black & white LCD |
| RFID Reader |
Mifare ISO/IEC 14443 A |
| Start Mode |
Plug&Play/RFID card/App |
| Emergency Stop |
No |
| Communication |
WiFi |
Yes |
| Ethernet |
Optional |
| 3G/4G |
Optional |
| OCPP |
OCPP1.6 Json(OCPP 2.0 upgradable) |
| Safety |
Energy Meter |
MID certified |
| RCD |
30mA Type A+6mADC |
| Ingress Protection |
IP54 |
| Impact Protection |
IK07 |
| Electrical Protection |
Over current protection, Residual current protection, Short circuit protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection |
| Certification |
CE/CB |
| Certification Standard |
ENIEC61851-1:2019, IEC61851-1:2017, IEC61851-21-2:2018 |
| Warranty |
2 years |
| Environment |
Installation |
Wall-mount/Pole-mount(Optional) |
| Work Temperature |
-30℃~+50℃ |
| Work Humidity |
5%~95% |
| Work Altitude |
<2000m |
| Package |
Product Dimension |
356*221*136mm(H*W*D) |
| Package Dimension |
490*340*210mm(L*W*H) |
| Net Weight |
3.2kg |
| Gross Weight |
4.2kg |
| ExternalPackage |
Carton |
Step
![EV Charger Step]()
