Product details of the best ev charger
Product Introduction
best ev charger's design idea is based on the search for a high-quality life standard. best ev charger has novel traits and advantages. best ev charger is produced with exquisite quality.

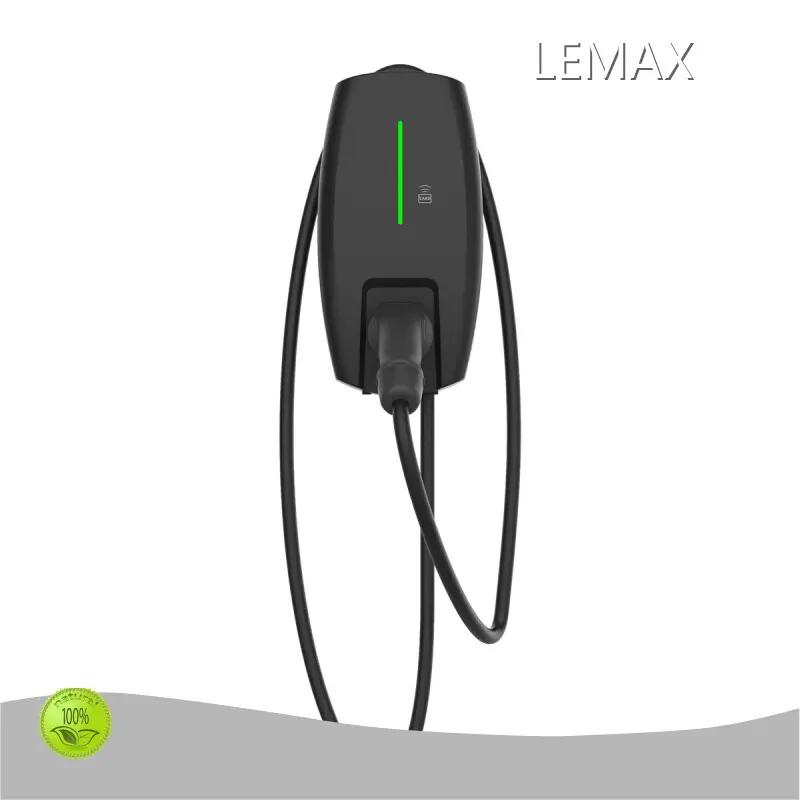

![EV Charger]()
Parameters
|
Model |
LM-AC011K-EU |
| Input |
Power Supply |
3P+N+PE |
| Rated Voltage |
400V AC |
| Rated Current |
16A |
| Frequency |
50/60Hz |
| Output |
Output Voltage |
400V AC |
| Maximum Current |
16A |
| Rated Power |
11kW |
| UserInterface |
Charge Connector |
Type 2 cable |
| Cable Length |
4m |
| Enclosure |
Plastic PC940 |
| LED Indicator |
Green/Yellow/Red |
| RFID Reader |
Mifare ISO/IEC 14443 A |
| Start Mode |
Plug&Play/RFID card/App |
| Emergency Stop |
No |
| Communication |
WiFi |
Yes |
| Bluetooth |
No |
| OCPP |
OCPP1.6 Json (OCPP2.0 upgradable) |
| Safety |
Energy Meter |
No |
| RCD |
6mA DC |
| Ingress Protection |
IP65 |
| Impact Protection |
IK10 |
| Electrical Protection |
Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection |
| Certification |
CE/CB/UKCA/EN303546 |
| Certification Standard |
EN IEC 61851-1:2019, IEC61851-1:2017. IEC61851-21-2:2018 |
| Warranty |
2 years |
| Environment |
Installation |
Wall-mount/Pole-mount(Optional) |
| Work Temperature |
-30℃~+50℃ |
| Work Humidity |
5%~95% |
| Work Altitude |
<2000m |
| Package |
Product Dimension |
325*181*87 mm(H*W*D) |
| Package Dimension |
430*290*200 mm(L*W*H) |
| Net Weight |
3.2kg |
| Gross Weight |
4.0kg |
| External Package |
Carton |
Step
![EV Charger Step]()
Company Advantage
• With a deep understanding of customers' needs and market, our company can provide customers with convenient pre-sales consultation and perfect after-sales service.
• Our company enjoys great geographic location with different main transportation lines crossing the city. Besides, the unimpeded road condition provides strong guarantee for the successful transportation of products.
• The sales channels of our products cover the whole China, Southeast Asia, Europe and the United States.
For customization, please contact LEMAX and provide relevant information. We will give you the quotation as soon as possible.
