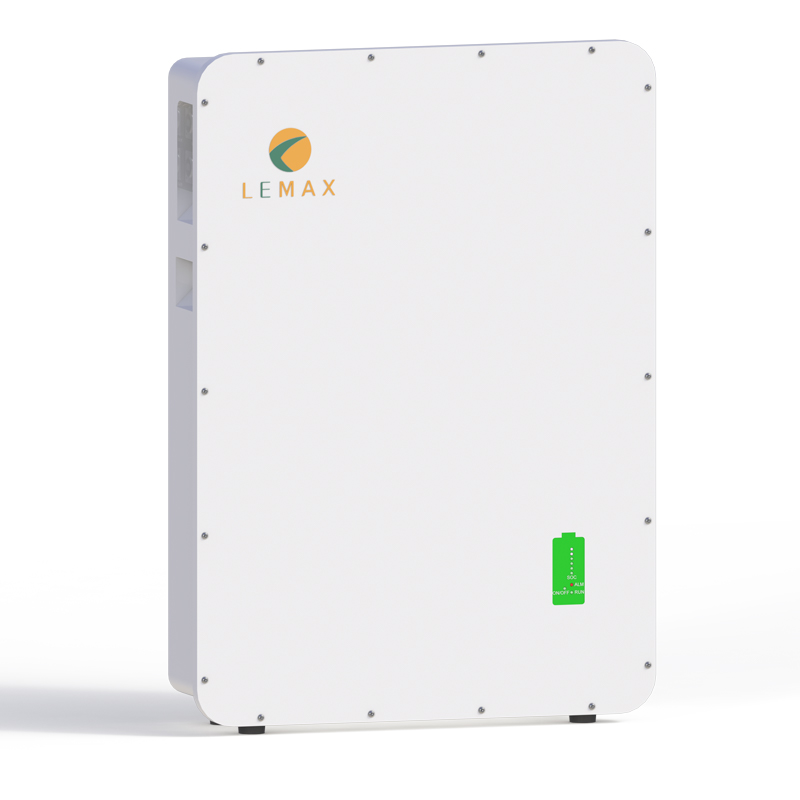

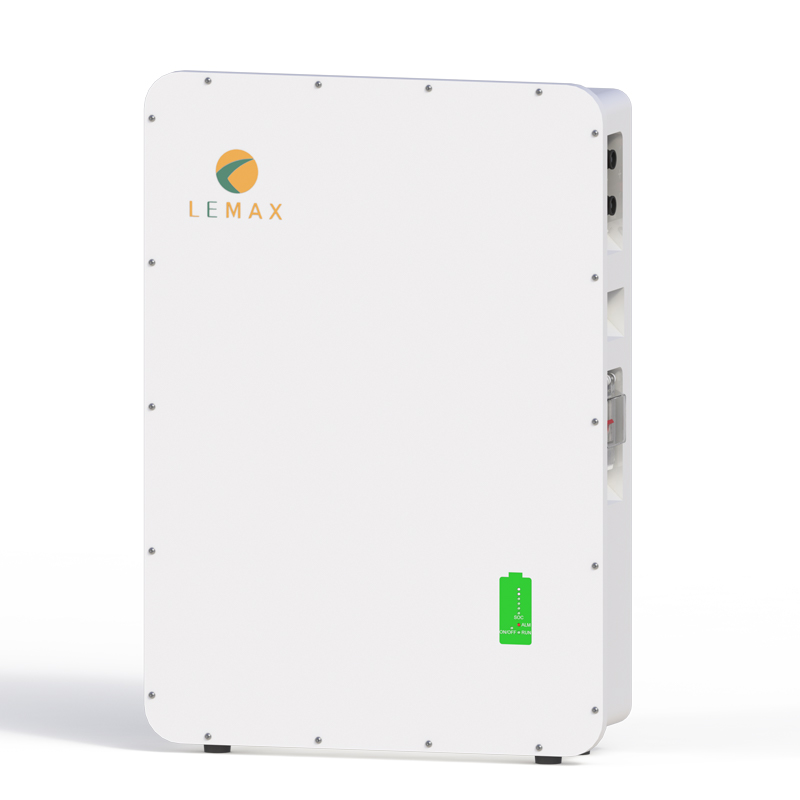

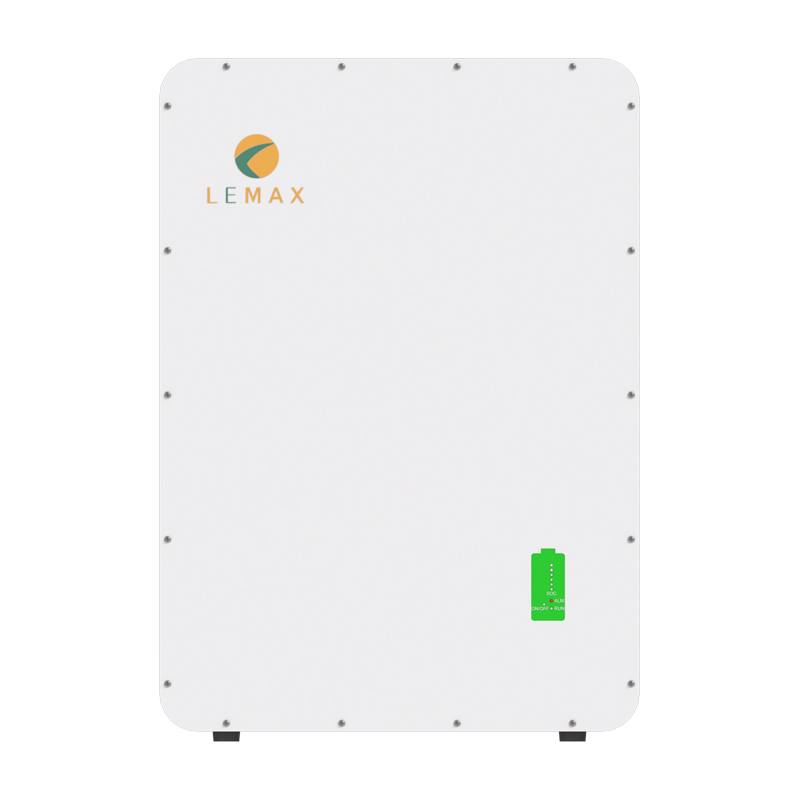

5kWh IP65 Battery LM-WP-24V5KWH
● IP65 Rated Protection: Dustproof and waterproof for reliable outdoor and indoor use.
● High Safety Standards: Advanced BMS ensures stability and protection.
● Long Cycle Life: Delivers over 6,000 cycles for extended durability.
● High Efficiency: Superior energy conversion for maximum performance.
● Easy Installation: Quick setup with user-friendly mounting and connections.
● Wide Compatibility: Supports various inverters for flexible applications.
● Eco-Friendly Solution: Designed with sustainable materials and energy-saving technology.
Product parameters
| Model | LM-WP-24V5KWH |
| Battery Type | LiFePO4 |
| Capacity | 200Ah |
| Rated Voltage | 25.6V |
| Total Energy | 5.12kWh |
| Working Voltage Range | 22~29.2V |
| Max.Charge Current | 200A |
| Max.Discharge Current | 200A |
| Standard Charge Current | 100A |
| Standard Discharge Current | 100A |
| Max.Parallel Quantity | 15 |
| Designed Lifespan | ≥6000 cycles (Test conditions: 80%DOD, 0.5C charge & discharge at +25℃) |
| Operating Temperature | Charge:0℃~60℃ Discharge:-10℃~60℃ |
| Operation Humidity | 5~95% |
| Nominal Operation Altitude | ≤3000m |
| IP Protection | IP65 |
| Installation Method | Wall mounted installation |
| Communication | RS232,RS485,CAN |
| Certification | MSDS,UN38.3,CE |
| Net Weight | 48.50kg |
| Gross Weight | 53.50kg |
| Production Dimension | 499*699*157mm |
| Carton Dimension | 692*255*440mm |
