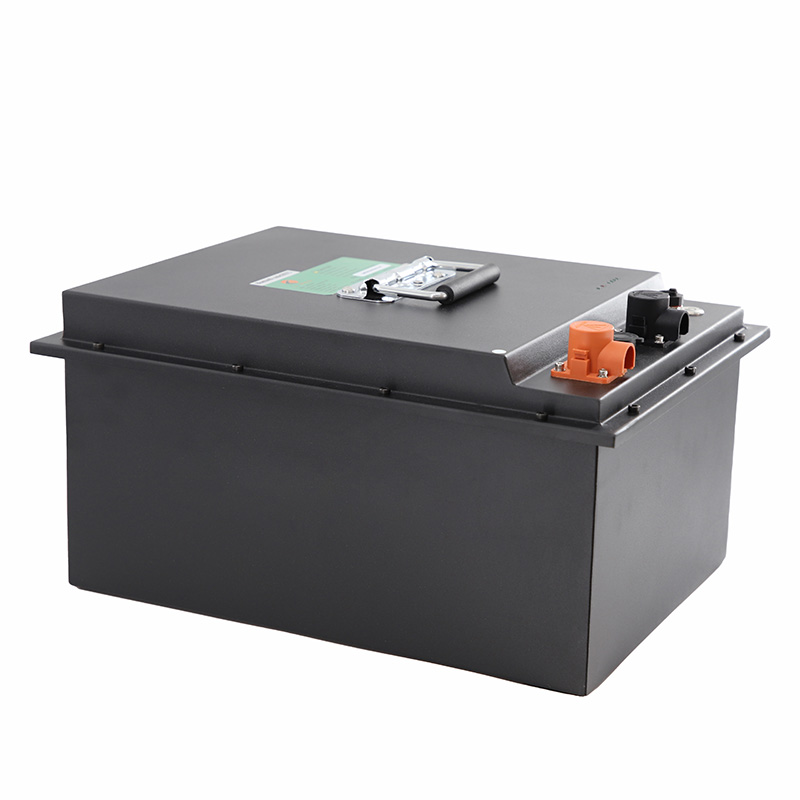

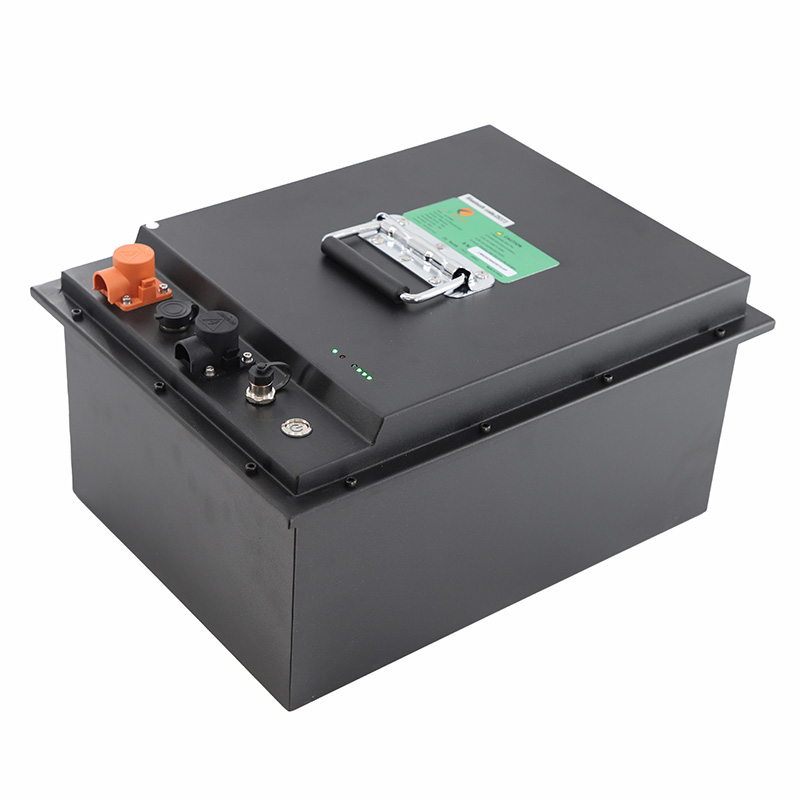

36V 48V 72V Marine Battery
● Extremely long cycle life – The design life is up to 10 years
● Zero maintenance – No water filling, no terminal tightening and cleaning ofacid deposits on the top of our batteries
● Fast charge – Fast charge in as little as 2.5 hours
● Ultra safe – The LiFePO4 batteries have greater thermal and chemicalstability
● Environment-friendly
Product parameters
| Model | LM-VP3690 | LM-VP36150 | LM-VP4860 | LM-VP4890 | LM-VP7290 | LM-VP72150 | |
| Specification | Nominal Voltage | 38.4V | 38.4V | 51.2V | 51.2V | 76.8V | 76.8V |
| Capacity | 90Ah | 150Ah | 60Ah | 90Ah | 90Ah | 150Ah | |
| Energy | 3.46kWh | 5.76kWh | 3.1kWh | 4.6kWh | 6.91kWh | 11.52kWh | |
| Series / Parallel | 12S3P | 12S1P | 16S2P | 16S3P | 24S3P | 24S1P | |
| Cycle Time | ＞4500 | ＞4500 | ＞4500 | ＞4500 | ＞4500 | ＞4500 | |
| Dimension (L*W*H) / mm |
440*300*210 | 515*380*210 | 395*300*210 | 560*300*210 | 560*440*210 | 560*460*210 | |
| Net Weight | 31kg | 51kg | 28kg | 40kg | 60kg | 96kg | |
| Current | Charge | 50A | 50A | 50A | 50A | 50A | 50A |
| Discharge | 100A | 100A | 100A | 100A | 100A | 100A | |
| Max. Discharge | 500A (2s) |
500A (2s) |
500A (2s) |
500A (2s) |
500A (2s) |
500A (2s) |
|
| Charge Hour (50A) | 1.8h | 3h | 1.8h | 3h | 1.8h | 3h | |
| Storage Temperature | Charge | 32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
| Discharge | 4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~60℃) |
|
| Other Spec. | IP Degree | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Optional | Bluetooth | Yes | Yes | Yes | Yes | Yes | Yes |
| Heating | Yes | Yes | Yes | Yes | Yes | Yes | |
| External Controller | Yes | Yes | Yes | Yes | Yes | Yes | |
Application scenarios
certificate
Whether it's cutting-edge solutions, personalized support or a seamless collaboration, we are here to exceed your expectations.
LEMAX is a technology-based manufacturer integrating research and development, production, sales and service of lithium battery products.
