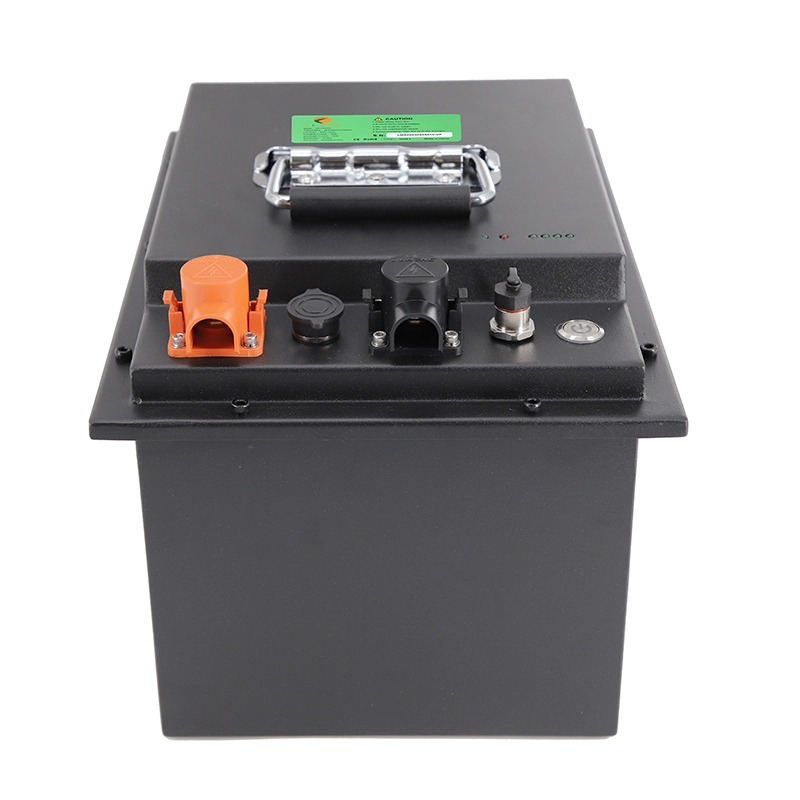

24V 36V 48V 80V Forklift Battery
● Built-in Intelligent BMS: Enhances safety and maximizes the lifespan of the Battery by monitoring and balancing cell performance
● Extremely Long Cycle Life: Offers exceptional durability with a high number of charge and discharge cycles, providing reliable power for extended periods
● Zero Maintenance: Saves time and effort with a maintenance-free design, eliminating the need for regular upkeep
● Compact and Lightweight – The small size and light weight of the battery make it easy to install and transport
● Fast charge – Fast charge in as little as 2.5 hours
● Support for CAN Communication Protocol: Enables seamless integration with compatible devices, allowing for efficient communication and control
● Ultra safe – The LiFePO4 batteries have greater thermal and chemicalstability
● Environment-Friendly – Contributes to a greener future by being free from harmful substances and reducing carbon emissions
Product parameters
| Model | LM-VP24150 | LM-VP24230 | LM-VP36230 | LM-VP36560 | LM-VP48230 | LM-VP48560 | LM-VP80460 | LM-VP80560 | |
| Specification | Nominal Voltage | 25.6V | 25.6V | 38.4V | 38.4V | 51.2V | 51.2V | 83.2V | 83.2V |
| Capacity | 150Ah | 230Ah | 230Ah | 560Ah | 230Ah | 560Ah | 460Ah | 560Ah | |
| Energy | 3.84kWh | 5.89kWh | 11.52kWh | 21.5kWh | 11.77kWh | 28.67kWh | 38.27kWh | 46.59kWh | |
| Series / Parallel | 8S1P | 8S1P | 12S1P | 12S2P | 16S1P | 16S2P | 26S2P | 26S2P | |
| Cycle Time | ＞4500 | ＞4500 | ＞4500 | ＞4500 | ＞4500 | ＞4500 | ＞4500 | ＞4500 | |
| Dimension (L*W*H) mm | 515*270*210 | 560*360*210 | 600*350*600 | 1000*700*800 | 950*375*550 | 1000*865*600 | 820*750*640 | 1000*765*650 | |
| Net Weight | 34kg | 48kg | 180kg | 320kg | 200kg | 540kg | 420kg | 495kg | |
| Current | Charge | 100A | 100A | 100A | 280A | 100A | 280A | 200A | 280A |
| Discharge | 150A | 150A | 200A | 560A | 200A | 560A | 500A | 560A | |
| Max. Discharge | 500A (10s) |
500A (10s) |
800A (10s) |
800A (10s) | 800A | 800A (10s) | 800A (10s) | 800A (10s) | |
| Charge Hour (50A) | 1-1.5h | 1.5-2.5h | 1-1.3h | 2.5-3h | 1-1.3h | 2.5-3h | 2-2.5h | 1.5-3h | |
| Storage Temperature | Charge | 32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
32°F~140°F (0℃~60℃) |
| Discharge | 4°F~140°F (-20℃~60℃) |
4°F~140°F (-20℃~61℃) |
4°F~140°F (-20℃~62℃) |
4°F~140°F (-20℃~63℃) |
4°F~140°F (-20℃~64℃) |
4°F~140°F (-20℃~65℃) |
4°F~140°F (-20℃~66℃) |
4°F~140°F (-20℃~67℃) |
|
| Other Spec. | IP Degree | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Optional | Bluetooth | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Heating | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| External Controller | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
Application scenarios
certificate
Whether it's cutting-edge solutions, personalized support or a seamless collaboration, we are here to exceed your expectations.
LEMAX is a technology-based manufacturer integrating research and development, production, sales and service of lithium battery products.
