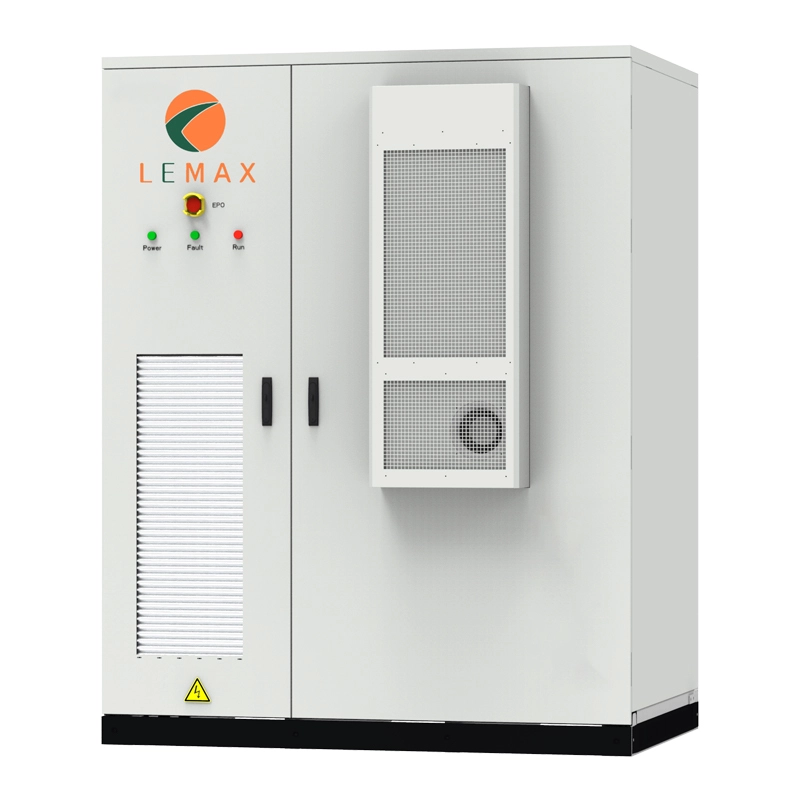

215kWh LM-ESS100KW215KWH
● Pre-installed system from factory
● PCS, BMS, and EMS fully integrated
● Built-in climate control & fire suppression
● Real-time system monitoring
● Designed to be easily scalable
● Common applications: Small businesses & factories, farms, shopping and distribution centers, office buildings, schools and libraries, island communities, EV stations
● Providing grid support services, such as peak shaving, load balancing, and frequency regulation
Product parameters
| Model | 100kW(215kWh) | 100TS(DC100)(215kWh) |
| Max.PV input power | / | 100kW |
| Max. PV input voltage | / | 620V |
| STS | / | STS optional |
| Transformer | / | Transformer inside |
| Battery(DC) | ||
| Rated battery capacity | 215kWh | 215kWh |
| Rated system voltage | 768V | 768V |
| Battery type | LFP battery | LFP battery |
| Battery Cell capacity | 280Ah | 280Ah |
| Series of battery | 1P*20S*12S | 1P*20S*12S |
| AC | ||
| Rated AC power | 100kW | 100kW |
| Rated AC current | 144A | 144A |
| Rated AC voltage | 400V,3P+PE,50/60Hz | 400V,3P+N+PE,50/60Hz |
| THDi | <3% (rated power) | <3% (rated power) |
| PF | -1(leading)~+1(lagging) | -1(leading)~+1(lagging) |
| General Parameters | ||
| Protection level | IP55 | IP55 |
| Isolation mode | Non-Isolation | Isolation Transformer |
| Operating temperature | -25~60℃(Derating above 45℃) | -25~60℃(Derating above 45℃) |
| Altitude | 3000m(>2000m derating) | 3000m(>2000m derating) |
| Communication interface | RS485/CAN 2.0/ Ethernet/dry contact | RS485/CAN 2.0/ Ethernet/dry contact |
| Dimension(W*D*H) | 1800*1200*2300mm | 1800*1200*2300mm |
| Weight (approx) | 2700kg | 3260kg |
Note: Above models are typical configurations. PV charging (DC/DC) module, on/off-grid switching module, industrial isolation transformer and other components can also be selected for micro-grid scenarios, to form Solar ESS integrated system cabinet.
Application scenarios
Internal structure
iNSTALLATION
